155

XAG AUSTRALIA

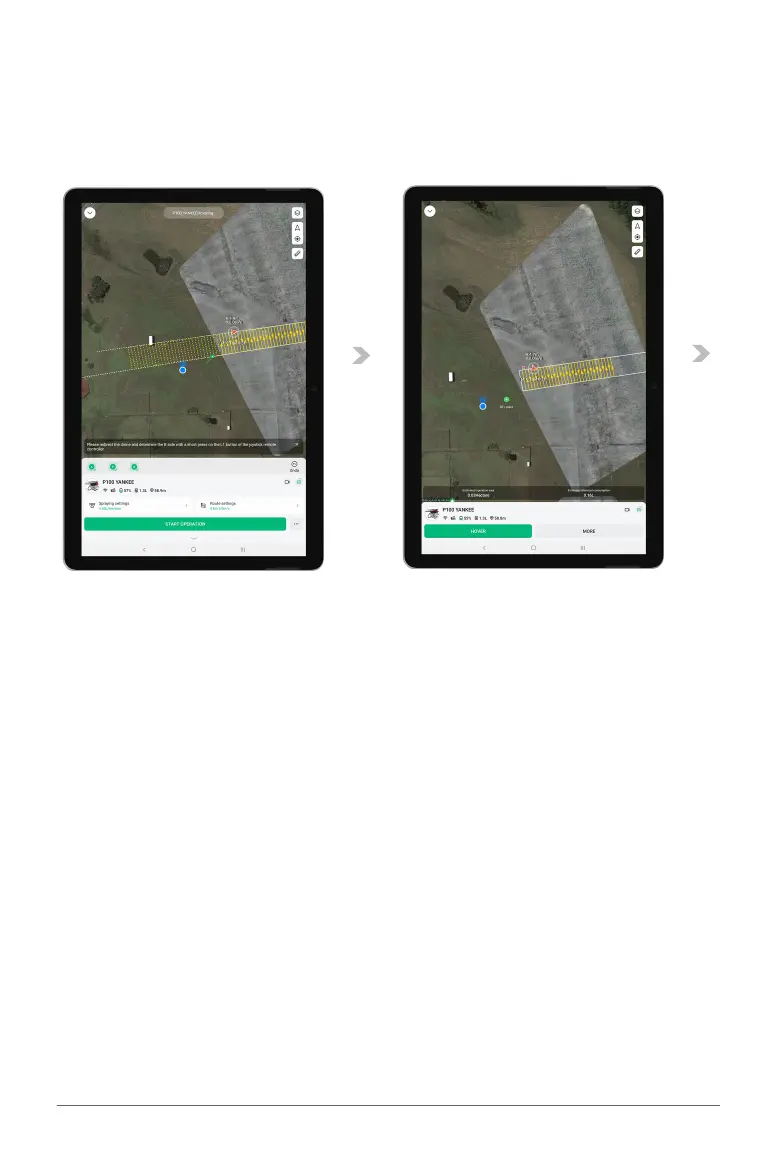

10. Starting the Operation:

After defining the boundaries, a field will be generated. Tap "Start

Operation", and the drone will fly to point A to initiate its task.

Commence Operation
