XAG AUSTRALIA

Please check that the following items are all present when unpacking the box. Should there be any

item missing, please contact your dealer.

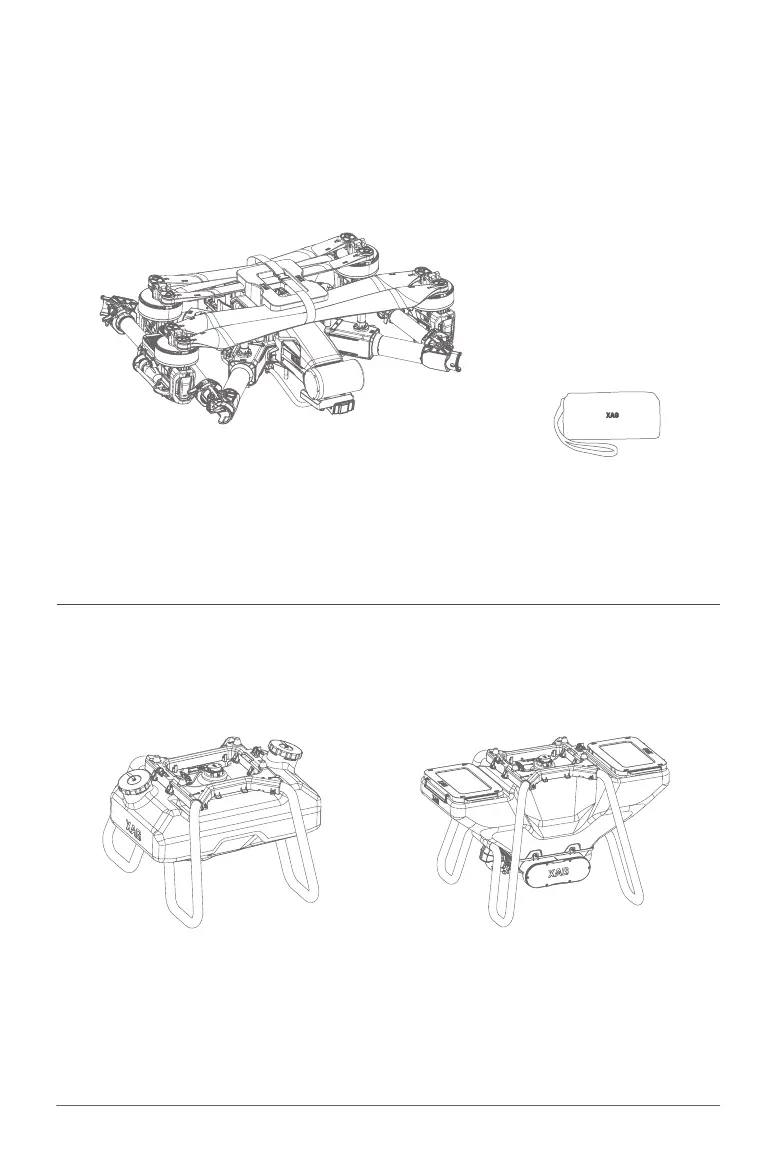

List of Items – P100 Pro

Airframe

×1

Tool Kit

×1

XAG

Optional Payload System

XAG

RevoSpray P3

(Optional)

XAG

RevoCast P3

(Optional)
