Assembling RevoSpray P3
HoleHole
Boss
03
02
01
02
03

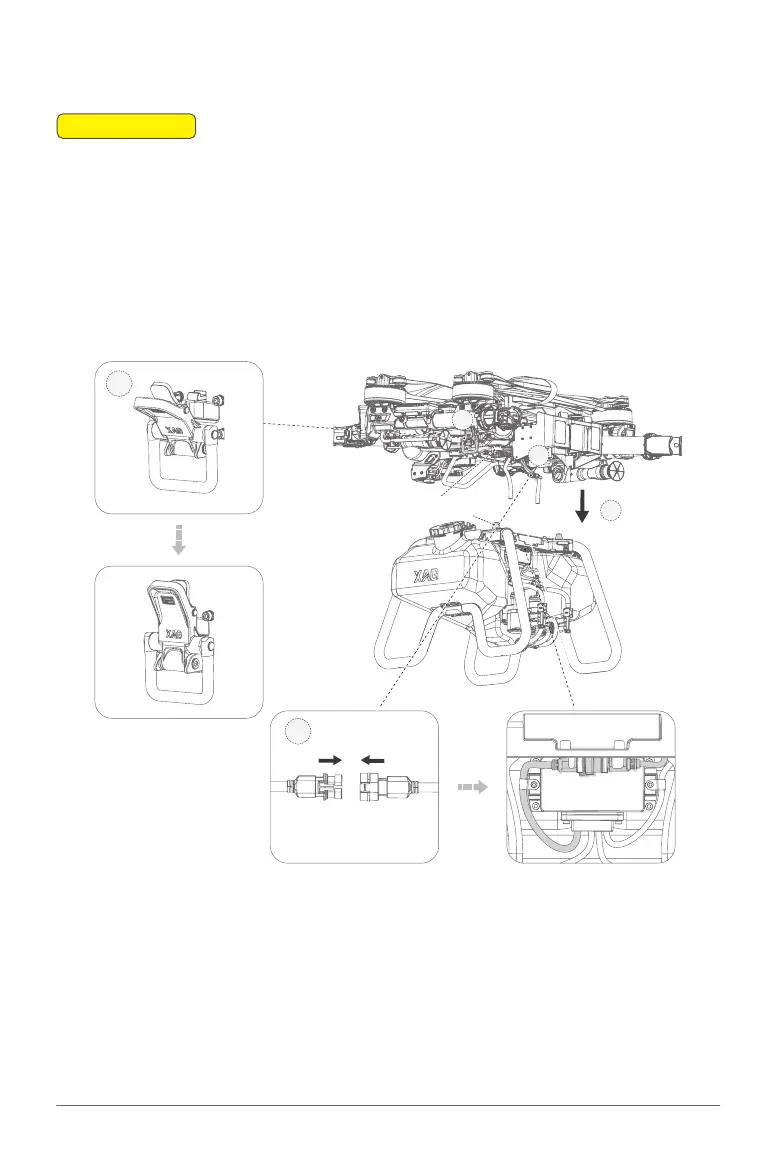

01. Start by aligning the Airframe's alignment hole with the Boss alignment on the RevoSpray
System. Once they are correctly aligned, gently place the airframe onto the RevoSpray.
02. Proceed to lock and secure the two Airframe Hasps to the RevoSpray System. Ensure the
Airframe and the RevoSpray System are tightly connected for optimal performance and safety.
03. Next, connect the Airframe's payload system cables to the RevoSpray's System cable. After
establishing the connection, fasten the cable securely to the cable holder.
📖
