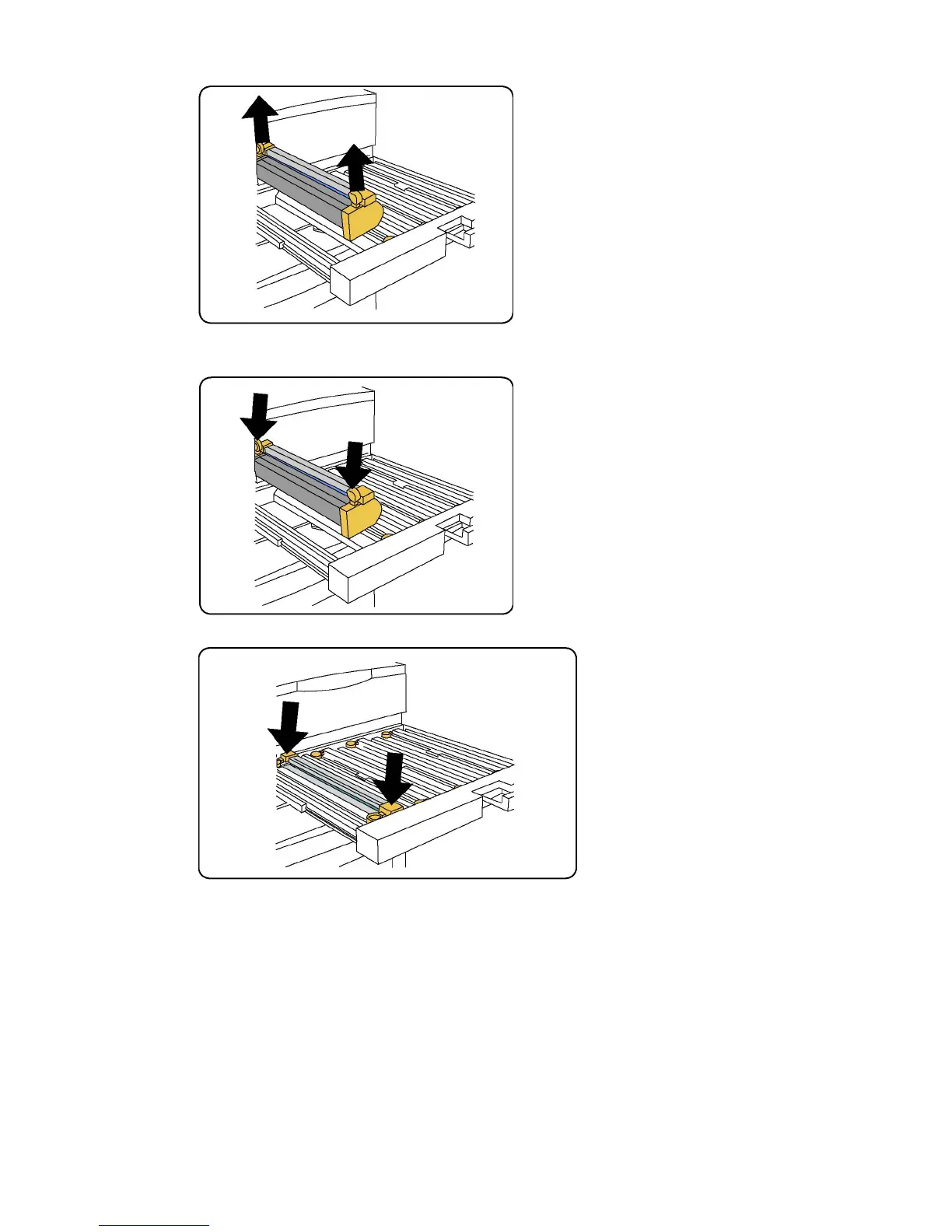

9. Place the new drum cartridge in the machine following the guides with the side
marked front facing the front.
10. Press both ends of the drum cartridge to place it in a horizontal position.
11. Immediately close the Drum Drawer to protect the other drums from light.
12. Return the Release Handle to its original position.
13. Return the R1-R4 handle to the original position and close the front door.
14. Insert the used drum cartridge into an empty container for recycling.
Replacing the Charge Corotron
1. Make sure the machine has stopped running, and open the Front Door.
Xerox
®
Color C60/C70 Printer9-12
User Guide
Maintenance
