Control Panel

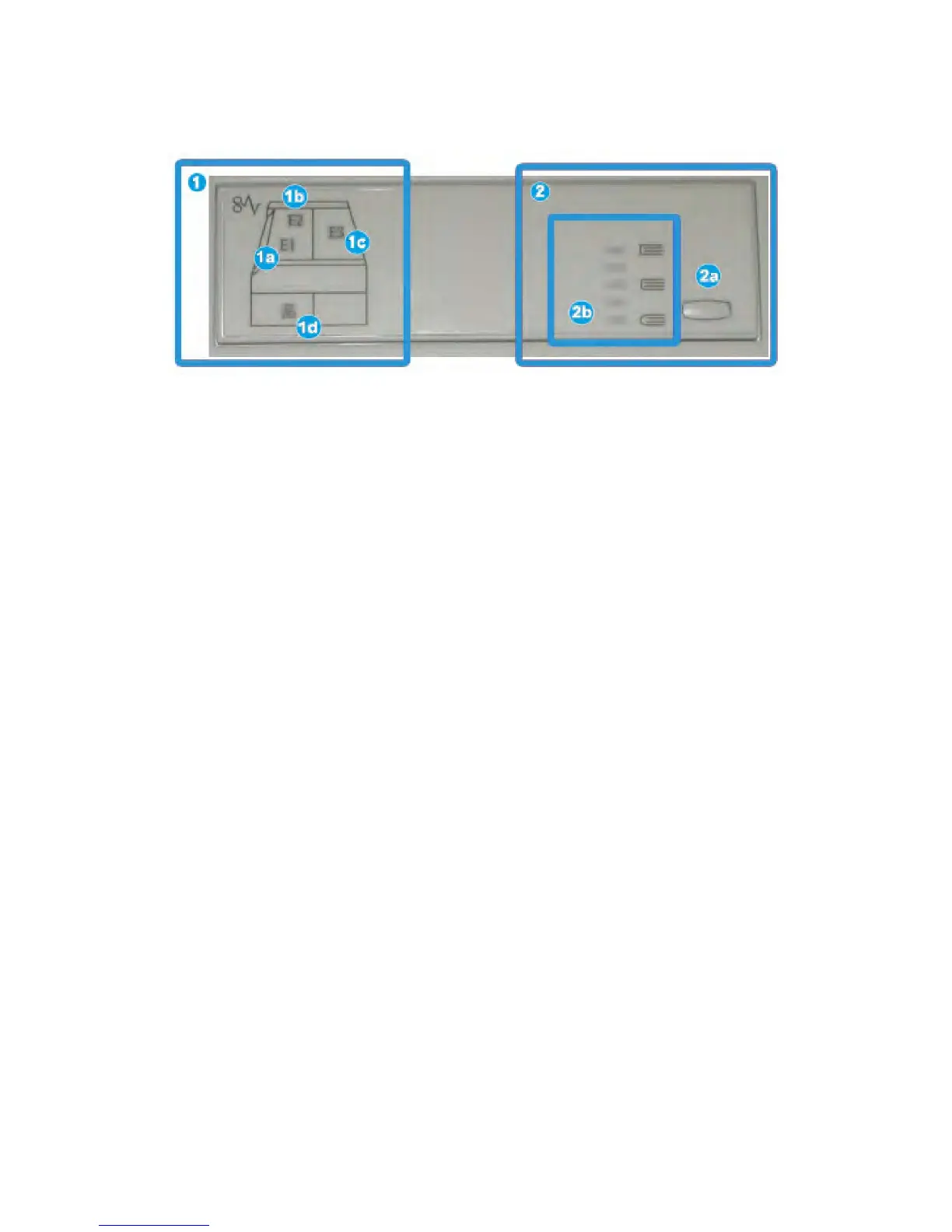

The Control Panel consists of the following:
1. Fault indicators: These indicators light when a fault or jam occurs in a particular
area of the SquareFold Trimmer Module.
• 1a) This indicator lights when a jam occurs as the booklet is leaving the exit area
of the finisher.
• 1b) This indicator lights when a jam occurs in the square fold area.
• 1c) This indicator lights when a jam occurs in the trimmer area.
• 1d) This indicator lights when the Trimmer Waste Container is pulled out or when
it is full.
Note
If one of these indicators (1a, 1b, 1c) is lit, the top covers can be opened, and the
jam/fault cleared; otherwise, during normal operation or when the machine is idle,
the top covers cannot be opened.
2. Square Fold options: This area of the control panel contains the following:
• 2a) Settings button: Press this button to adjust the Square Fold setting; refer to
the next item.
• 2b) Square Fold options: Select the desired setting; these settings are discussed
in more detail in the section entitled “Square Fold options.”
Note
The Square Fold options are available from your computer’s print driver, from your print
server, or from your machine’s UI (if it is a copier/printer). This is discussed in more detail
in the section entitled "Square Fold options."
