Loading Paper in the Oversized High
Capacity Feeder
The optional Oversized High Capacity Feeder (OHCF) provides an alternative to the HCF.
The OHCF feeds oversized stock up to 13 x 19 in./SRA3/330 x 488 mm paper, 18 lb./64
gsm bond to 110 lb./300 gsm cover stock. Each drawer holds 2000 sheets of standard
weight paper. The OHCF can be either a 1-drawer or a 2-drawer Feeder.
Note
The paper or media must not be loaded above the maximum fill line.
Note
The Paper Weight Switches work in conjunction with the blowers in the tray(s). The
blowers help control environmental conditions in the paper trays and ensure optimum
feed capability.

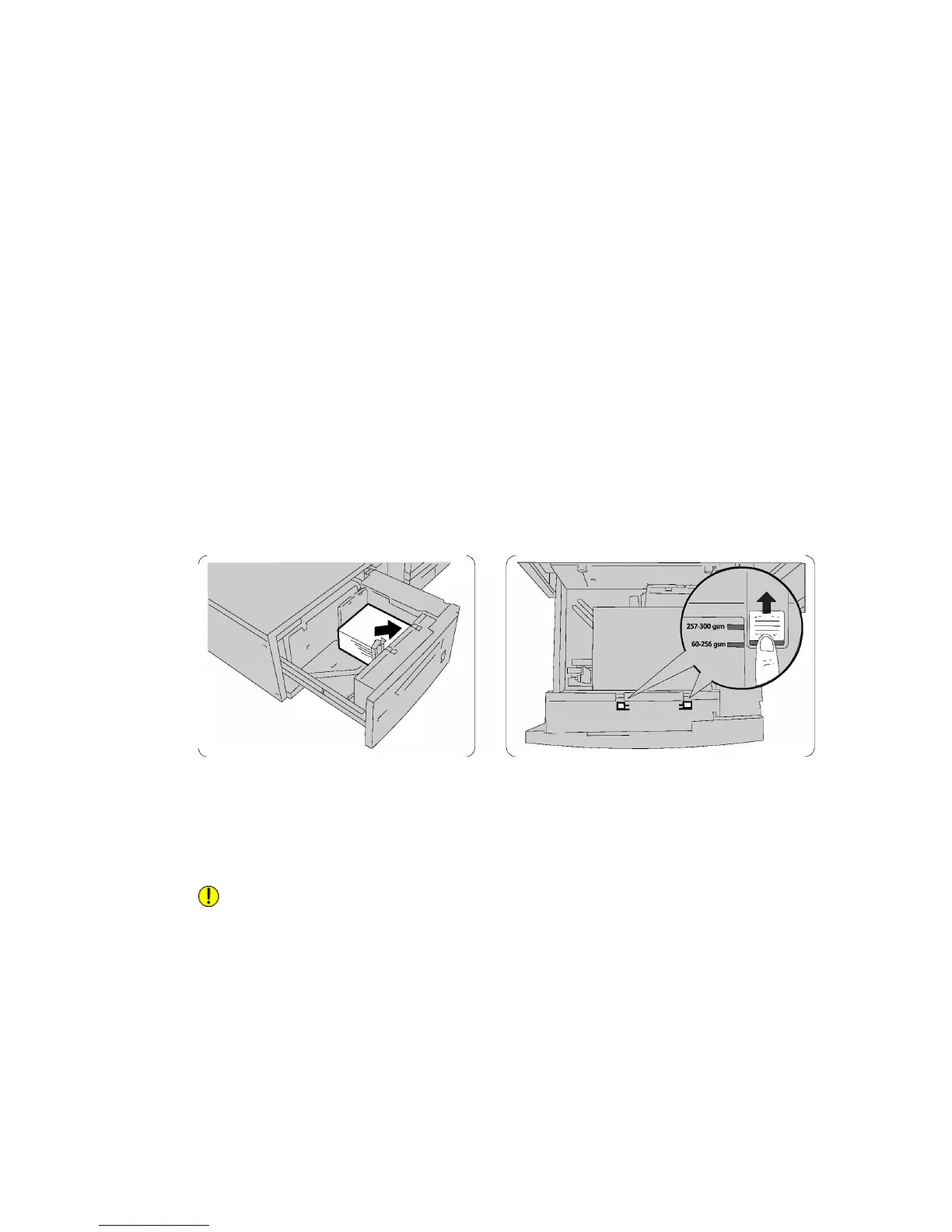

1. Slowly pull out the tray towards you until it stops.
2. After opening the tray, register the stack of paper or media against the front right
side of the paper tray.
3. Move both Paper Weight Switches to their appropriate positions.
4. If the paper weight is between 60 gsm and 256 gsm, the position of the air
adjustment levers (switches) should be toward the front of the tray. If the paper
weight is between 257 and 300 gsm, the position of the air adjustment levers
(switches) should be positioned toward the rear of the tray.
Caution
For paper heavier than 256 gsm, slide both Paper Weight switches to the heavier
weight position (257-300 gsm). Failure to do so may result in paper jams.
5. Push in the tray gently and completely. When the loaded tray is closed, the tray
position is automatically adjusted in the front/back direction based on the paper
size. A pop-up window may appear asking you to confirm the type and size of the
stock.
Xerox
®
Color C60/C70 Printer4-10
User Guide
