5.
Close the f
ront door of the C/Z F
older.

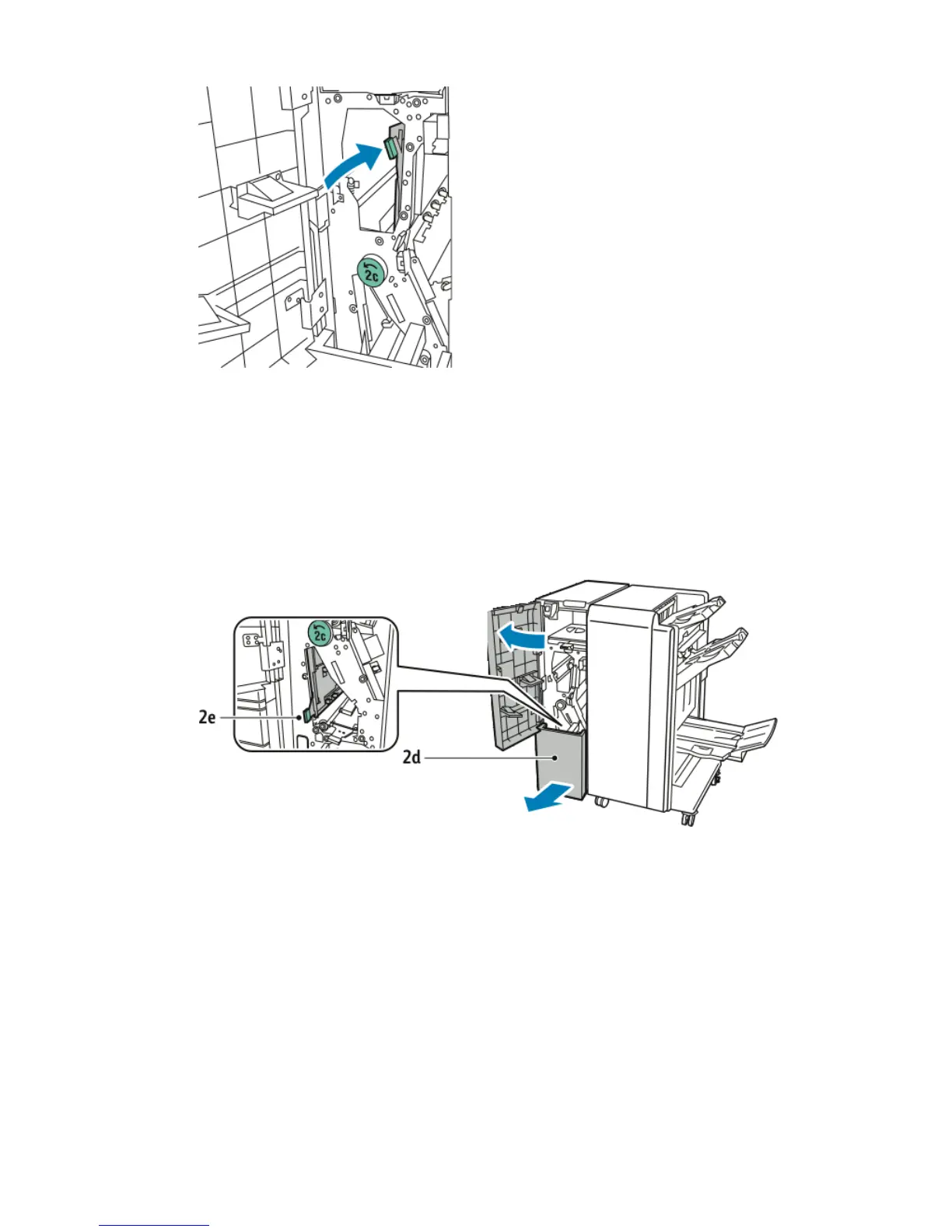

Clearing Jams at 2e in the C/Z F
older
T
o clear jams at 2e in the C/Z F
older:
1.
T
o access lever
2e
, open the f
ront door of the C/Z F
older and then open the F
older
tr
ay
2d
.
2.
Mov
e green lev
er
2e
to the right.
Xerox
®
Color C60/C70 P
rinter
10-10
User Guide
T
roubleshooting
143
145
