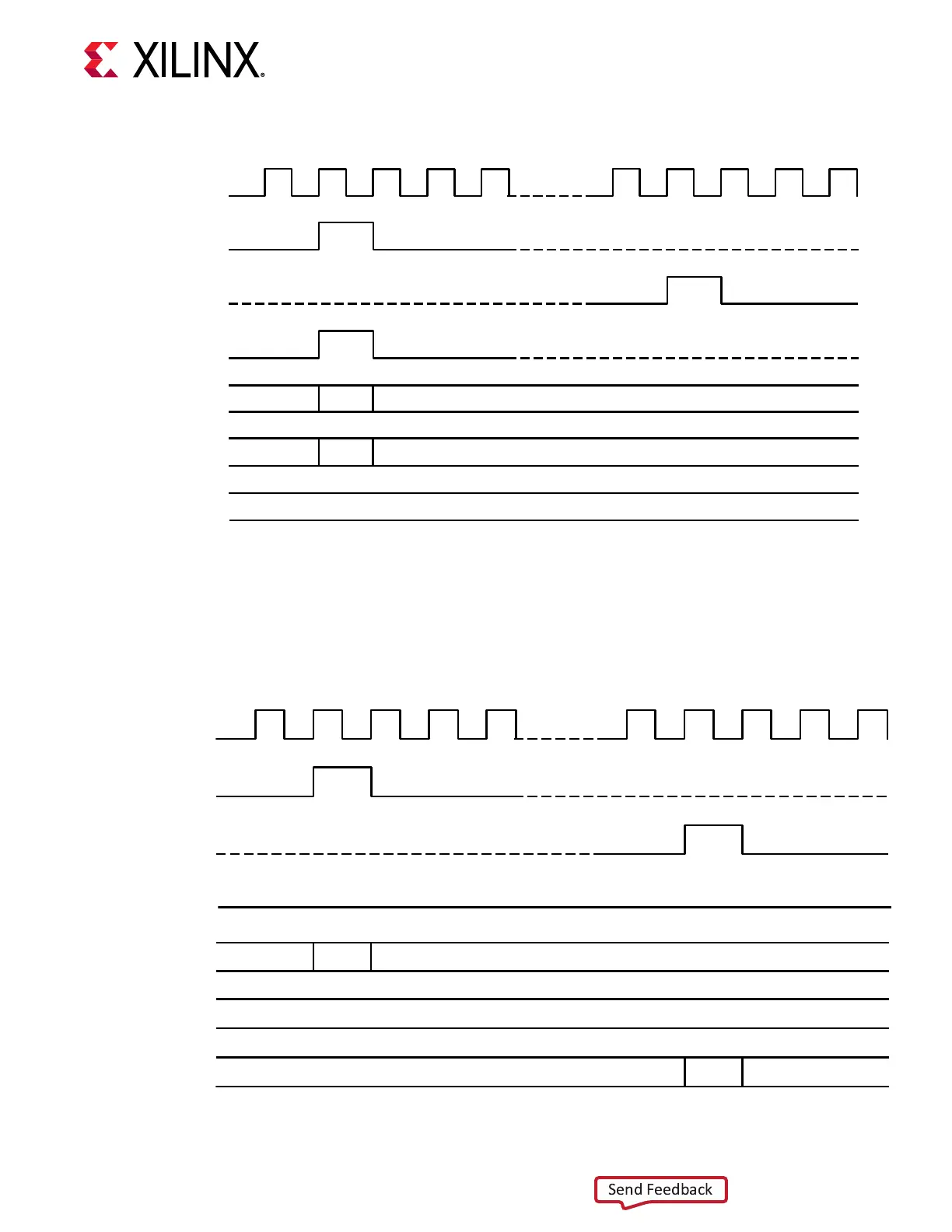

Figure 22: DRP Write Timing

DRPCLK

DRPEN

DRPRDY

DRPWE

DRPADDR

DRPDI

DRPDO

ADR

DAT

X20218-052318

Read Operation

The following gure shows the DRP read operaon ming. New DRP operaons can be iniated

when DRPY is asserted.

Figure 23: DRP Read Timing

DRPCLK

DRPEN

DRPRDY

DRPWE

DRPADDR

DRPDI

DRPDO

ADR

DAT

X20219-052318

Chapter 2: Shared Features

UG581 (v1.0) January 4, 2019 www.xilinx.com

Virtex UltraScale+ GTM Transceivers 49

Send Feedback
