Xilinx Virtex UltraScale+ FPGAs User Manual

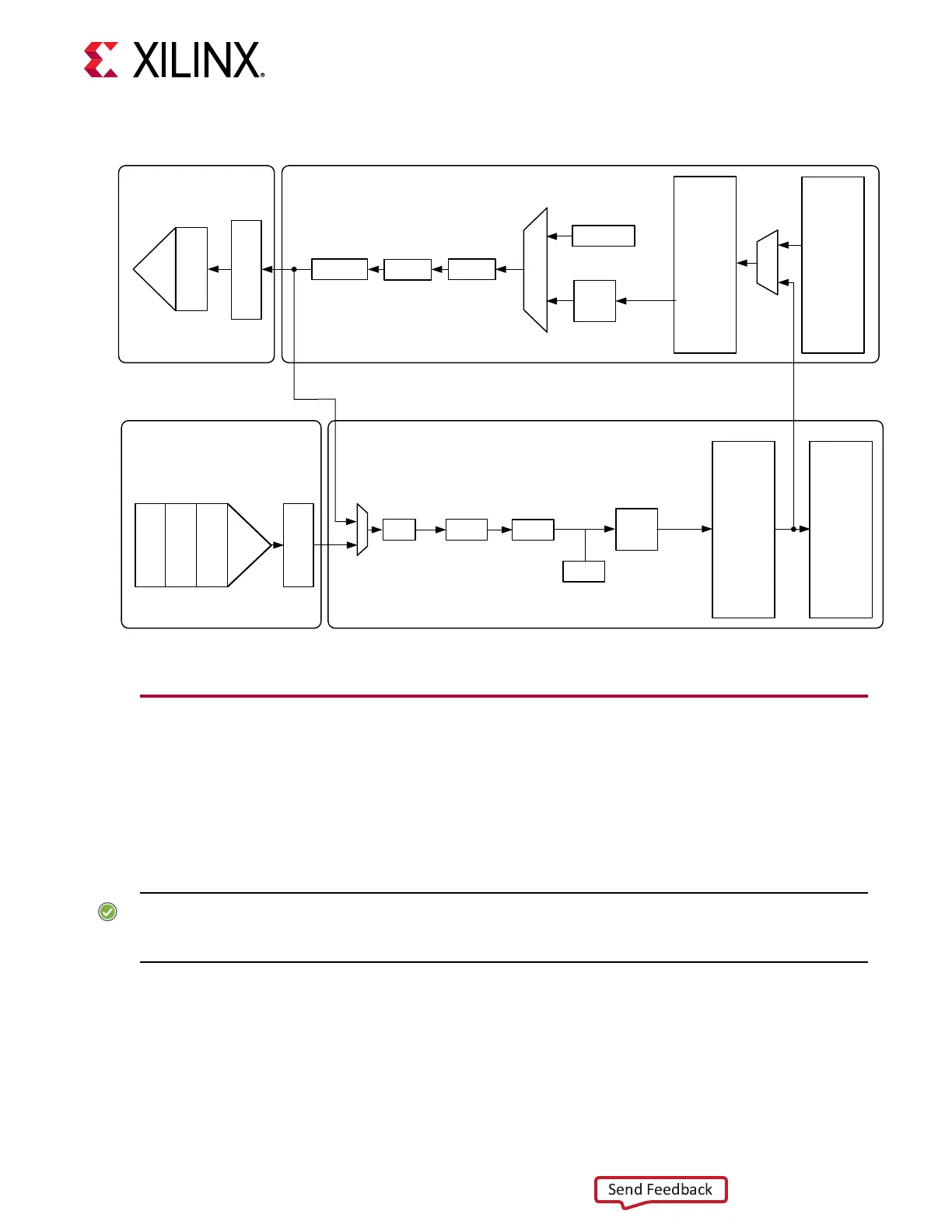

Figure 2: GTM Channel Topology
Polarity
FIFO
PRBS
Checker
RX
Interface
FEC
Gray
Decoder
Pre-
Coder
RX PCS
DFE/
FFE
RX EQ SIPOADC
RX PMA
Pattern
Generator
Polarity
FIFO
To RX Parallel
Data (Near-End
PCS Loopback)
From RX Parallel
Data (Far-End
PCS Loopback)
TX
Interface
FEC
Gray
Encoder
Pre-Coder
TX PCS
PISO
TX
Driver
TX
Pre/
Pre2/
Post
Emp
TX PMA
X20211-052918
UltraScale+ FPGAs GTM Transceivers
Wizard
The UltraScale+ FPGAs GTM Transceivers Wizard (hereinaer called the Wizard) is the preferred
tool to generate a wrapper to instanate the GTM_DUAL. The Wizard is located in the IP catalog
under the IO Interfaces category.
RECOMMENDED
: Download the most recent IP update before using the Wizard. Details on how to
use this Wizard can be found in the UltraScale+ FPGAs GTM Transceivers Wizard LogiCORE IP Product
Guide (PG315).
