xiC - Technical Manual Version 1.16
3. Hardware Specification
3.1. Power Supply
The xiC cameras are powered via the USB Micro-B, type C or flexline connector. The input voltage is 5 V DC. The power
consumption is 2.2 -3.5W depending on the xiC model.
Power supply, via USB system connector:
• 5 V (nominal)
• 4.45 V to 5.5 V (at the camera connector)
Additionally, the models with Micro-B (-UB) and type-C (-TC) connector can use external power supply, with same requirements
as power supply defined above. For information about connection please see chapter: 3.9.3 Inserting / detaching FPC cable
• When inserting or detaching cables increased caution need to be taken, to prevent connector or cable damage. MC
cameras interface connectors are equipped with locking mechanism. When locked pulling the cable may lead to damage of
connector or camera. When manipulating with cable the power supply for the camera must be turned off.
Cable have marked ends. It is important to connect the end marked “CAM” to the camera and end marked “BOB” to host or
adapter. Swapped orientation can cause damage to camera. It is important that the power is turned off when
inserting/detaching the cable.

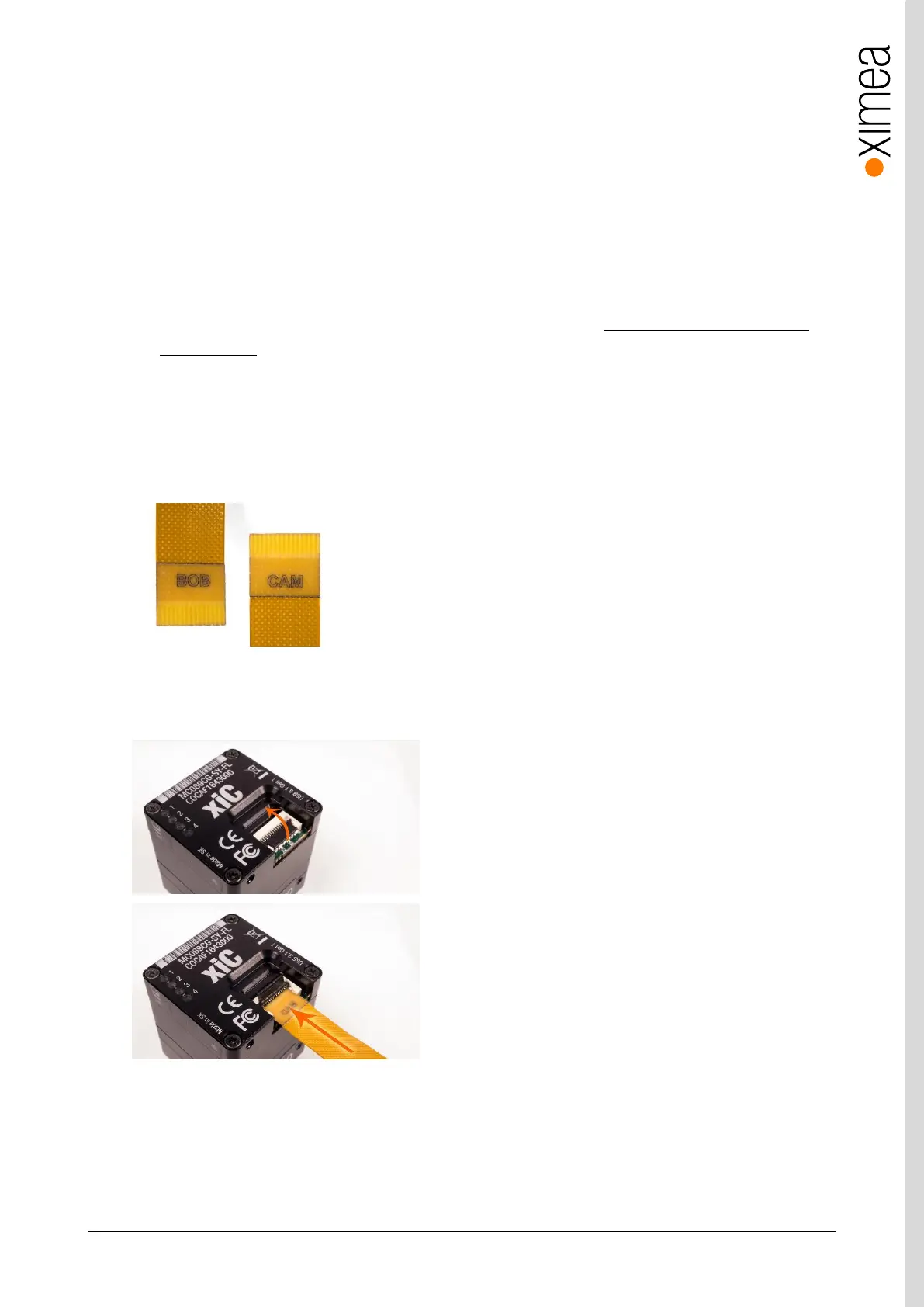

figure 3-38, MC FPC cable laser marking
Inserting FPC cable MC option -FL
Open connector lock
Insert cable
