3.5.4.5. Dimensional drawings MC089xG-SY-FL (C-mount [with C/CS mount module B])

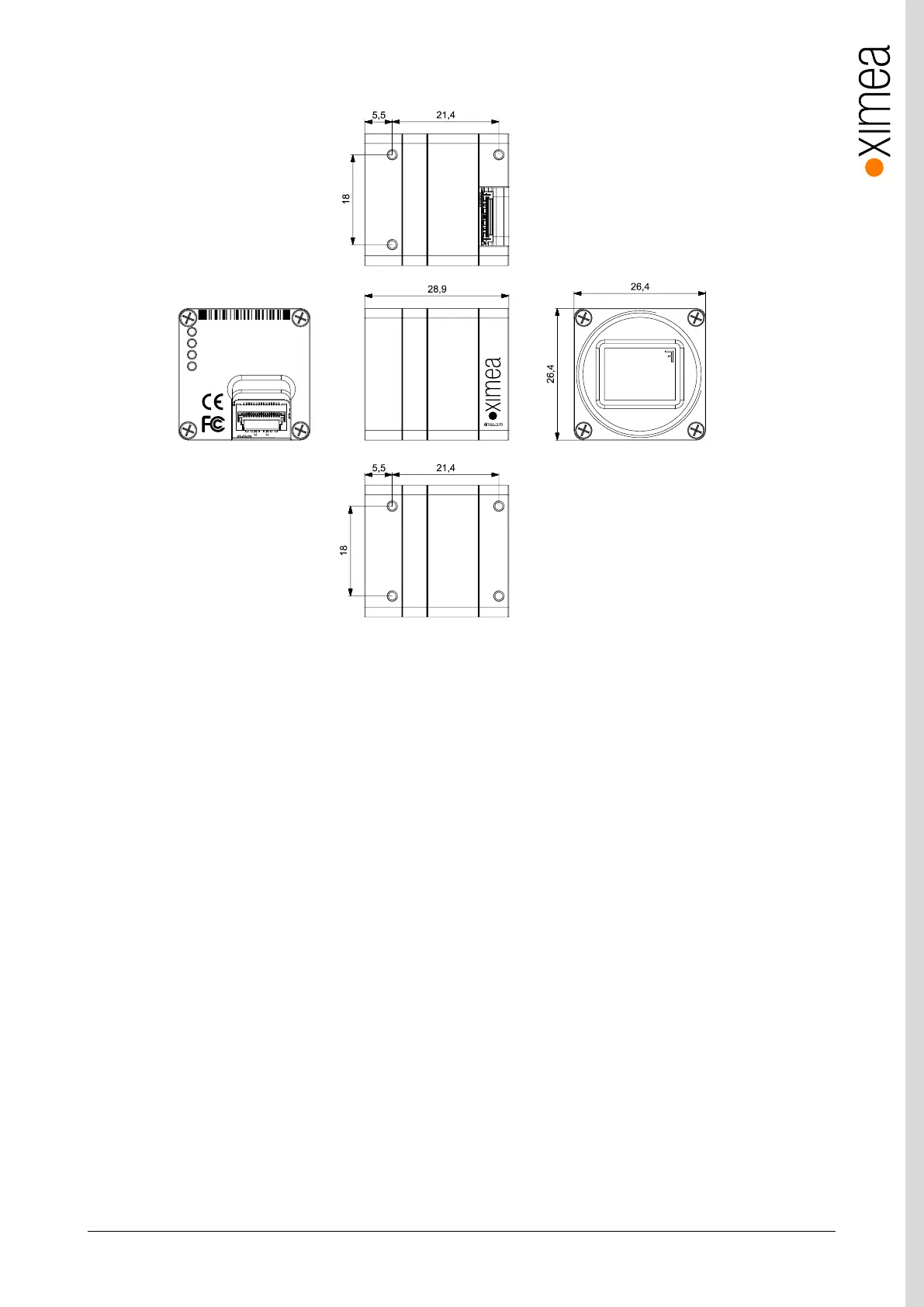

Figure 3-24, dimensional drawing MC089xG-SY-FL, C-Mount housing
xiC
1
2
3
4
MC089CG-SY-FL
COCAF1623001
Made in SK
USB 3.1 Gen 1d
xiC
USB 3.1
Gen 1
USB3VISION
4 x M2 max
. depth 2 mm
mod.
: 21.4 x 18 mm C-mount
16.4 x 18 mm CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
