3.10.3.3. Digital Input – Internal Schematic
The internal scheme of Digital Input signal flow inside the camera is below.

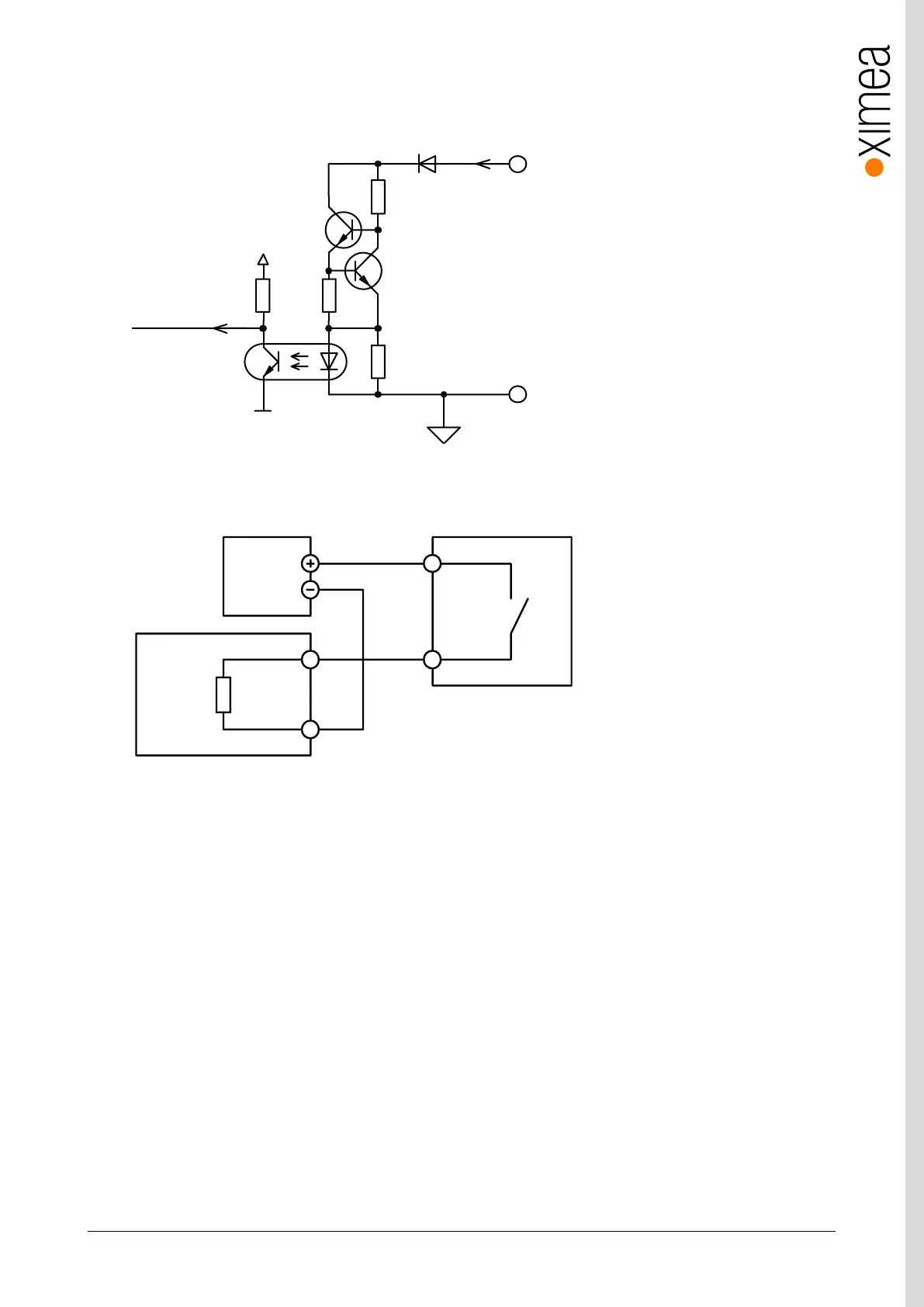

figure 3-45, digital input, interface schematic
3.10.3.4. Digital Input – Wiring
figure 3-46, digital input, interface wiring
VCC
D IG ITA L IN PU T
I
INPUT
FPG A_ IN PUT
G N D ( Comm on I O Gr oun d)
620R
100R
10K
49K 9
GND
PLC Device
Input
Camera
GND (Common IO Ground)
Common
Output
Power Supply
