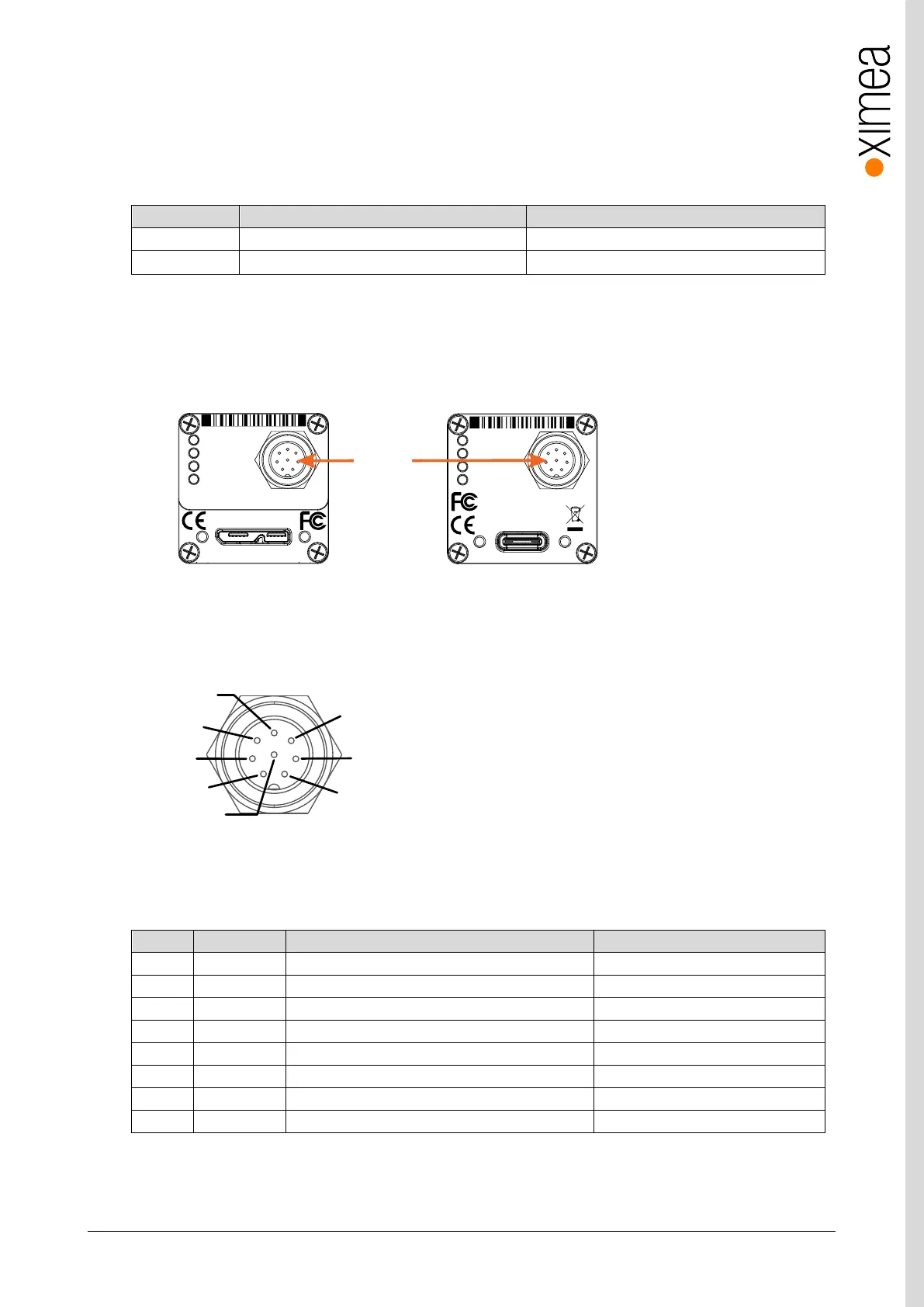

3.10. xiC Digital Input / Output (GPIO) Interface
USB XiC cameras use the 8-pin connector for the GPIO interface and external power supply (AUX) connection and have multiple
options for inputs and outputs. The flex line cameras have one input and one output available through the flex line (see pin-out
above).
Connector
Signals
Mating Connectors
I/O & Sync 8-pin
Opto-isolated trigger input and non-isolated I/O
Binder 8-pin PN: 79 1426 15 08
Flex cable
One input and one output non-isolated
table 3-30, GPIO mating connector description
3.10.1. Location
IO interface receptacle (for USB cameras only) is located on the back of the camera:
figure 3-43, position GPIO connector
3.10.2. IO Connector Pinning
Pinning of the IO connector (camera):
figure 3-44, pinning GPIO connector
I/O connector Pin Assignment:
Pin
Name
Signal
Technical description
1
AUX PWR
Power supply input
5V
2
INOUT2
Non-isolated I/O
LVTTL (3V, 50µA)
3
OUT1
Opto- isolated Output 1
Open collector
4
OUT GND
Ground for Opto-Isolated Out (OUT1)
5
IN1
Opto-isolated Input 1
(<0.8V low; 4-24V high)
6
IN GND
Ground for Opto-Isolated Input (IN1)
7
GND
External grounds for power and non-isolated I/O
8
INOUT1
Non-isolated I/O
LVTTL (3V, 50µA)
table 3-31, I/O connector Pin Assignment
xiC
1
2
3
4
MC023CG-SY-UB
CACAU1623001 Made in SK
IO
AUX
power
For use with XIMEA approved connection cables only.
USB 3.1 Gen 1
xiC
1
2
3
4
MC023CG-SY-TC
CACAC1623001
Made in SK
IO
AUX
power
USB 3.1 Gen 1
Type C
8 pin
IO/AUX
connector
1
2
3
4
5
6
7
8
