xiC - Technical Manual Version 1.16
26
3.5.1.5. Dimensional drawings MC023xG-SY-FL (C-mount [with C/CS mount module B])

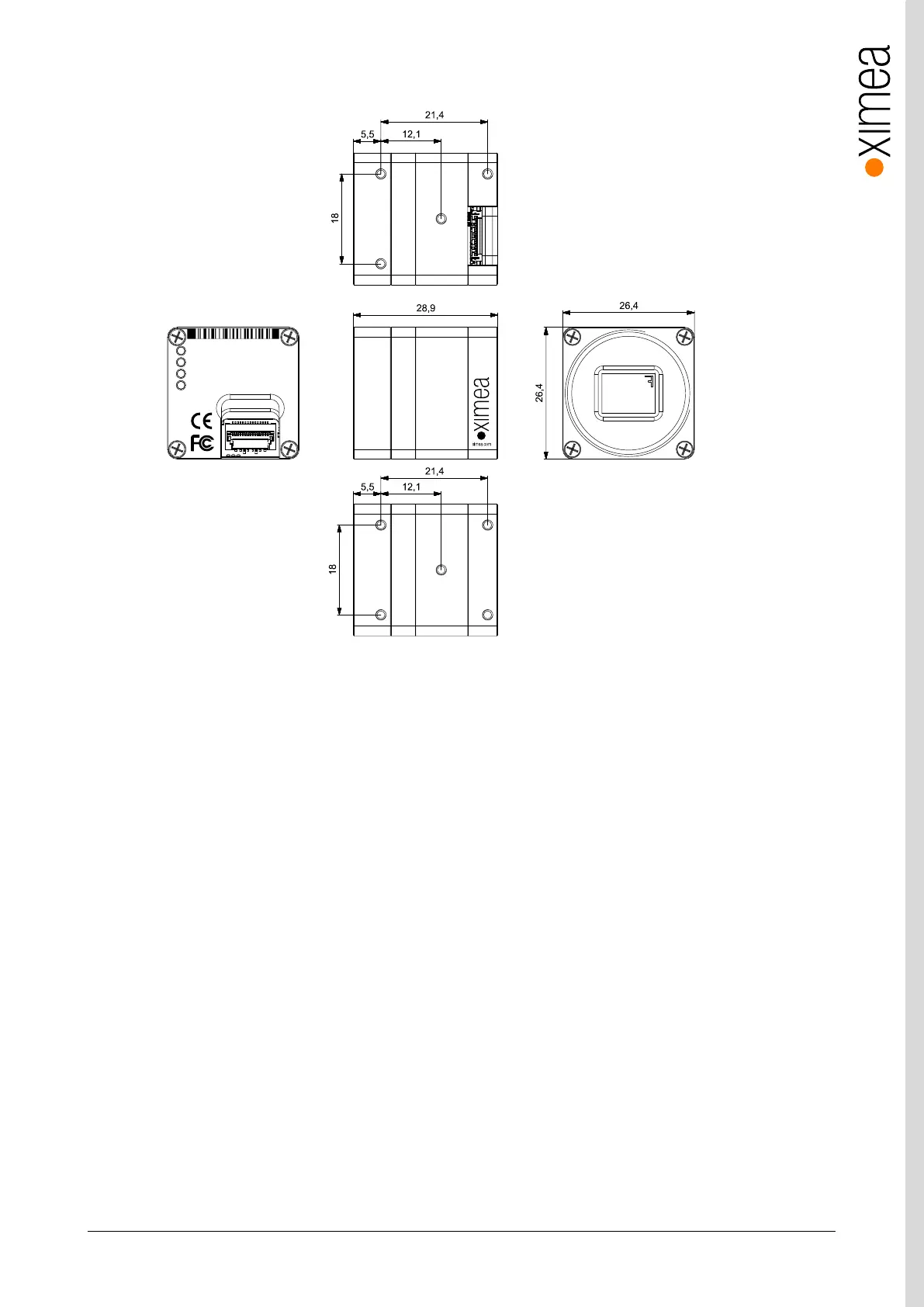

Figure 3-9 dimensional drawing MC023xG-SY-FL, C-Mount housing
xiC
1
2
3
4
MC023CG-SY-FL
CACAF1623001
Made in SK
USB 3.1 Gen 1
xiC
USB 3.1
Gen 1
USB3VISION
5 x M2 max
. depth 2 mm
mod.
: 21.4 x 18 mm (12.1 x 9 mm) C-mount
16.4 x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
