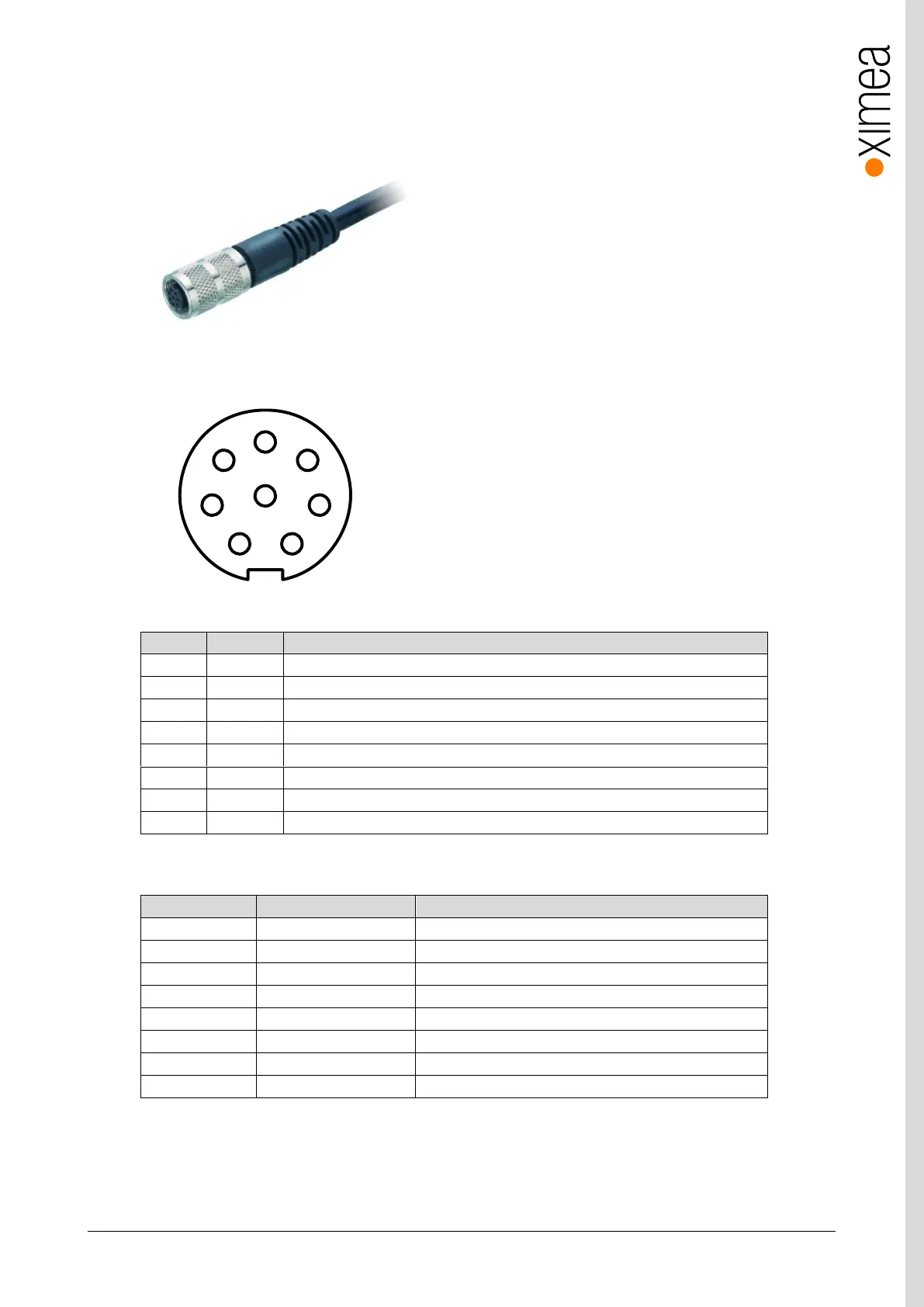

3.17. CBL-702-8P-SYNC-5M0
5.0m xiC / xiT series I/O Sync cable 8 poles
Sync cable wiring
figure 3-66, IO/AUX cable pin numbering
Pin
color
Signal
1
White
AUX power supply input
2
Brown
INOUT2 - non-isolated Input/Output
3
Green
OUT1 - Opto-isolated Output
4
Yellow
OUT_GND Opto-Isolated output ground pole
5
Grey
IN1 - Opto-isolated Input
6
Pink
IN_GND Opto-Isolated input ground pole
7
Blue
External grounds for power supply and non-isolated I/O
8
Red
INOUT1 - non-isolated Input/Output
table 3-45, IO/AUX cable, pin assignment
3rd party cables compatible with xiC
Part number
Manufacturer
Link
79 1426 12 08
binder
https://www.binder-usa.com/products/partsdetail/88888
79 1426 15 08
binder
https://www.binder-usa.com/products/partsdetail/88890
79 1426 72 08
binder
https://www.binder-usa.com/products/partsdetail/88889
79 1426 75 08
binder
https://www.binder-usa.com/products/partsdetail/88892
79 1462 212 08
binder
https://www.binder-usa.com/products/partsdetail/88901
79 1462 215 08
binder
https://www.binder-usa.com/products/partsdetail/88904
79 1462 275 08
binder
https://www.binder-usa.com/products/partsdetail/88905
79 1462 272 08
binder
https://www.binder-usa.com/products/partsdetail/88906
table 3-46, alternative cables,
1 7
8
6
5
4
3
2
