xiC - Technical Manual Version 1.16
25
3.5.1.4. Dimensional drawings MC023xG-SY-UB (C-mount [with C/CS mount module B])

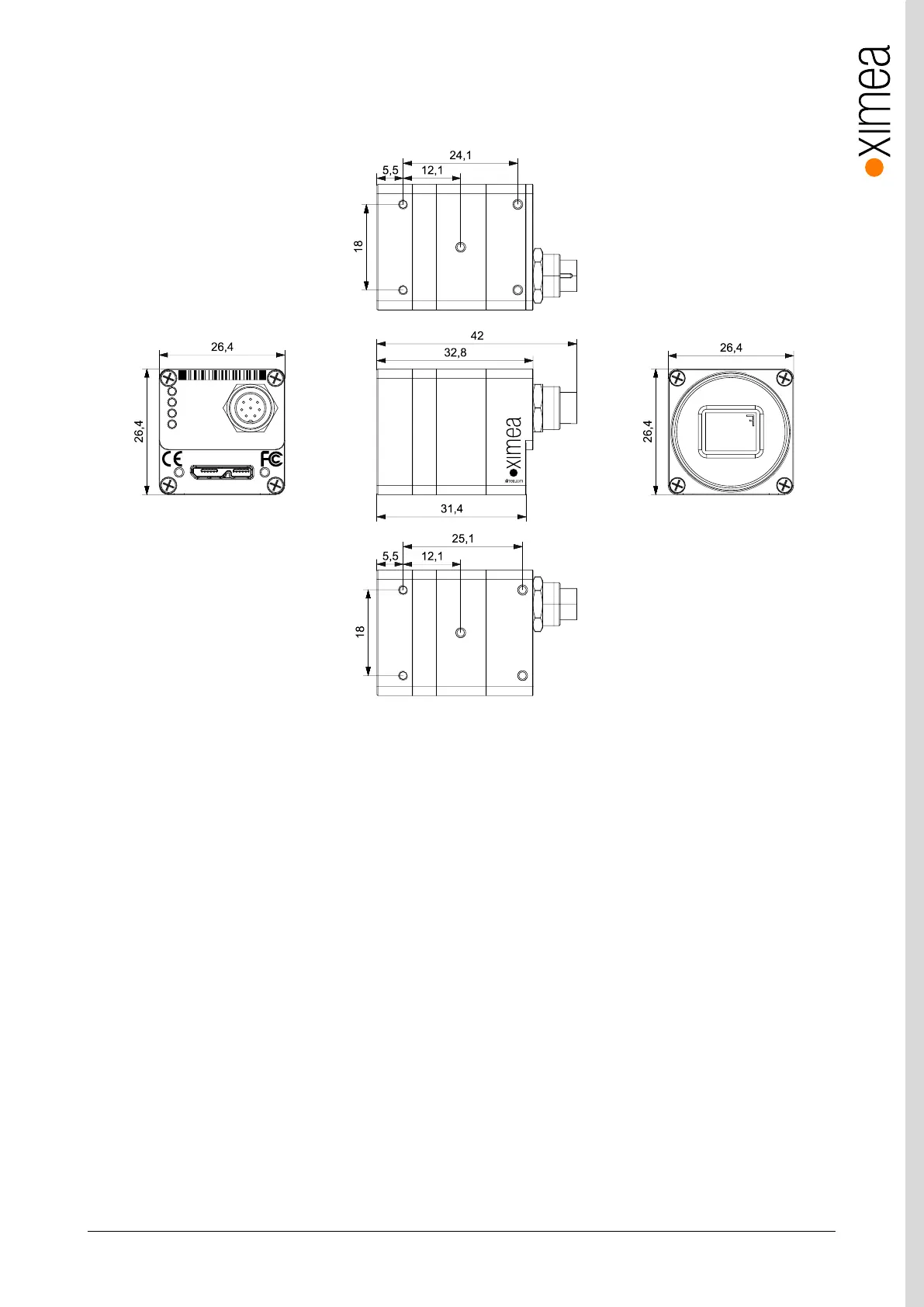

figure 3-8, dimensional drawing MC023xG-SY-UB, C-Mount housing
5 x M2 max
. depth 2 mm
mod.
: 25.1(24.1) x 18 mm (12.1 x 9 mm) C-mount
20.1(19.1) x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
1
2
3
4
MC023CG-SY-UB
CACAU1623001 Made in SK
IO
AUX
power
For use with XIMEA approved connection cables only.
USB 3.1 Gen 1
xiC
USB 3.1
Gen1
USB3VISION
