XIMEA xiC - Quantum Efficiency Curves [%]; Dimensional Drawings Mc023 Xg-SY-TC (C-Mount [With C;CS Mount Module B])

xiC - Technical Manual Version 1.16
24
Supported standard readout modes
Binning/skipping
pixels
fps
Bit/px
0
1x1
1936 x 1216
165
8
1
1x1
1936 x 1216
129
10
2
1x1
1936 x 1216
108
12
table 3-7, MC023xG-SY, supported standard readout modes

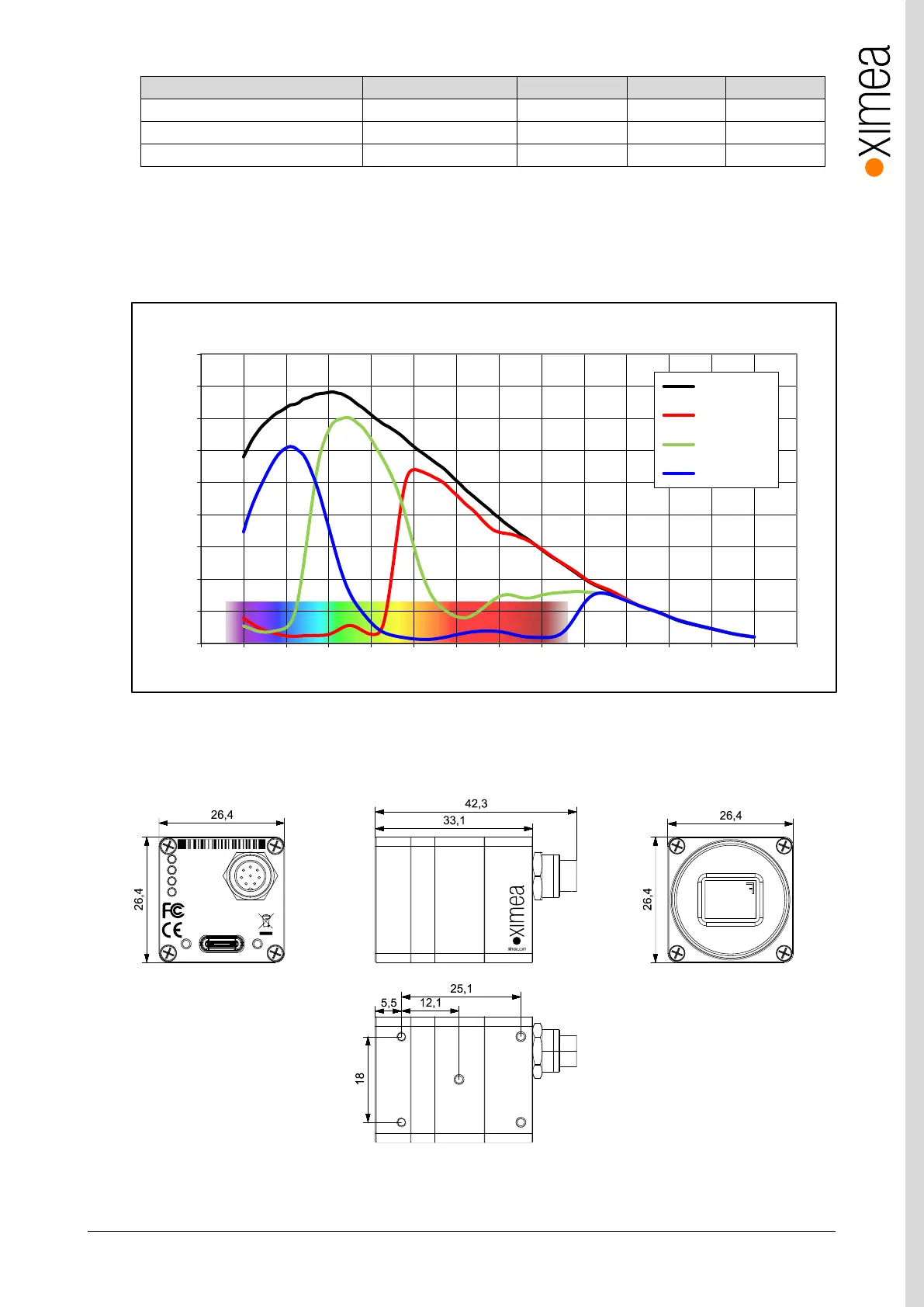

3.5.1.2. Quantum efficiency curves [%]
figure 3-6, IMX174-mono, quantum efficiency curve, ©SONY
3.5.1.3. Dimensional drawings MC023xG-SY-TC (C-mount [with C/CS mount module B])
figure 3-7, dimensional drawing MC023xG-SY-TC, C-Mount housing
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
Quantum Efficiency (%)
Wavelength (nm)
IMX174 - Spectral Response
Monochrome
Red Bayer
Green Bayer
Blue Bayer
5 x M2 max
. depth 2 mm
mod.
: 25.0 x 18 mm (12.1 x 9 mm) C-mount
20.0 x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
1
2
3
4
MC023CG-SY-TC
CACAC1623001
Made in SK
IO
AUX
power
USB 3.1 Gen 1
Type C
xiC
USB 3.1
Gen 1
USB3VISION
