3.5.5.3. Dimensional drawings MC124xG-SY-TC (C-mount [with C mount module B])

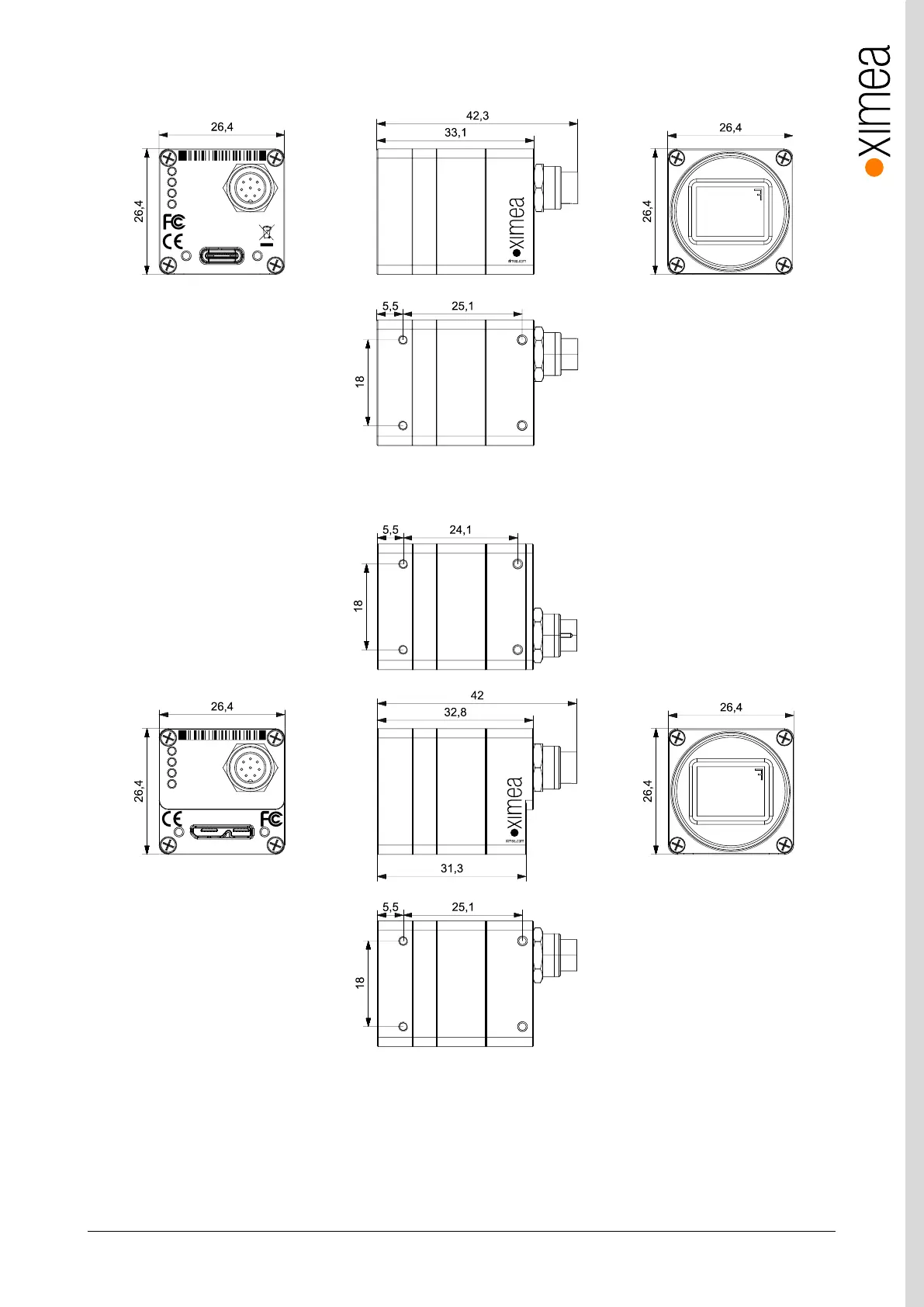

figure 3-27, dimensional drawing MC124xG-SY-TC C-Mount housing
3.5.5.4. Dimensional drawings MC124xG-SY-UB (C-mount [with C mount module B])
figure 3-28, dimensional drawing MC124xG-UB, C-Mount housing
4 x M2 max
. depth 2 mm
mod.
: 25.1 x 18 mm C-mount
20.1 x 18 mm CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
USB 3.1
Gen 1
USB3VISION
xiC
1
2
3
4
MC124CG-SY-TC
CUCAC1623001
Made in SK
IO
AUX
power
USB 3.1 Gen 1
Type C
4 x M2 max
. depth 2 mm
mod.
: 25.1(24.1) x 18 mm C-mount
20.1 x 18 mm CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
USB 3.1
Gen 1
USB3VISION
xiC
1
2
3
4
MC124CG-SY-UB
CUCAU1623001 Made in SK
IO
AUX
power
For use with XIMEA approved connection cables only.
USB 3.1 Gen 1
