3.5.2.5. Dimensional drawings MC031xG-SY-FL (C-mount [with C/CS mount module B])

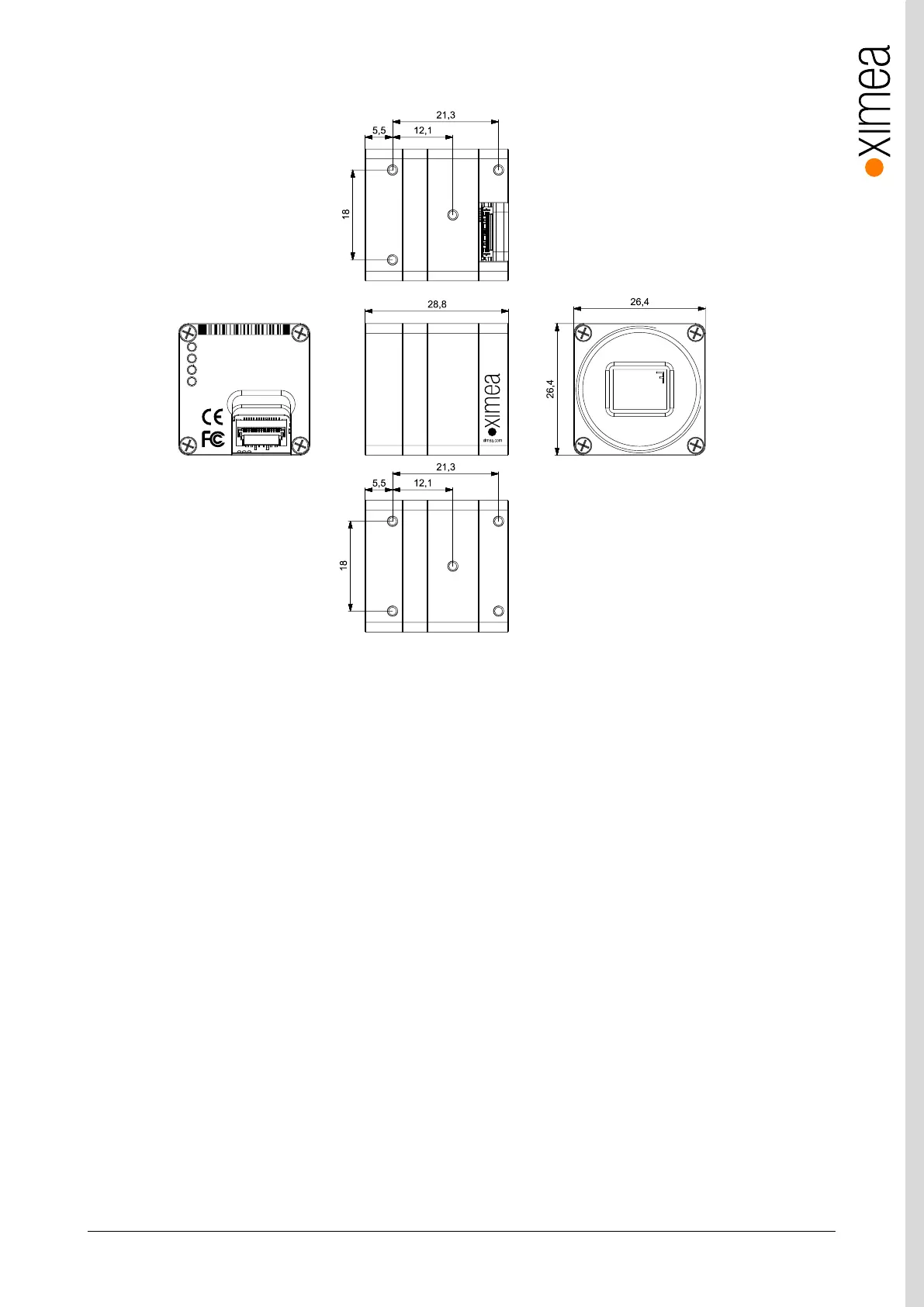

Figure 3-14, dimensional drawing MC031xG-SY-FL, C-mount housing
xiC
1
2
3
4
MC031CG-SY-FL
CECAF1623001
Made in SK
USB 3.1 Gen 1
xiC
USB 3.1
Gen 1
USB3VISION
5 x M2 max
. depth 2 mm
mod.
: 21.3 x 18 mm (12.1 x 9 mm) C-mount
16.3 x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
