XIMEA xiC - Cbl-U3-3 M0-Ang

xiC - Technical Manual Version 1.16
68

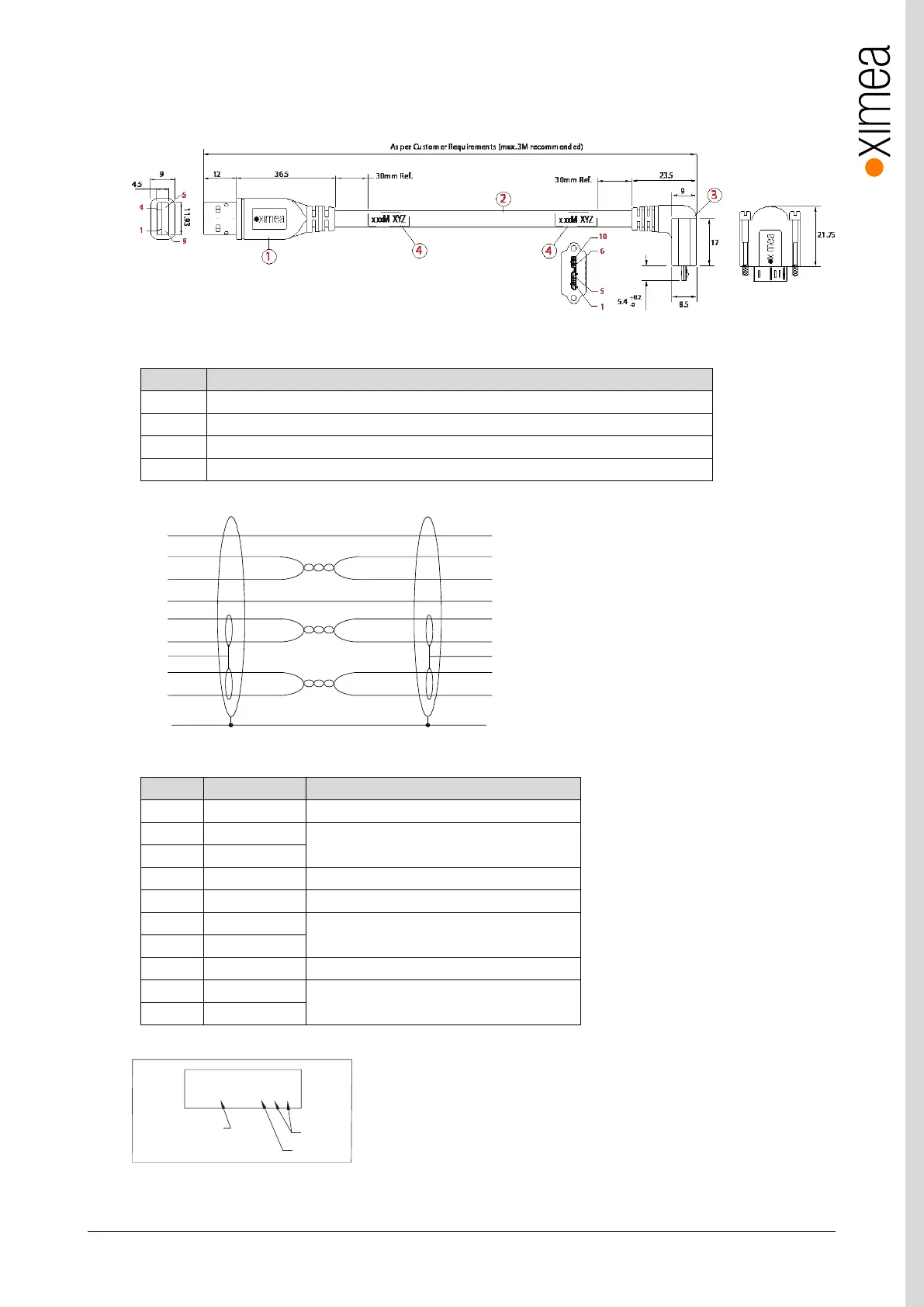

3.14. CBL-U3-3M0-ANG
3.0m USB 3.0 cable, angled micro USB3 connector
figure 3-60, drawing USB3 cable angled
Item
Description
1
USB A 3.0 9 pin Molded Plug <BLK>
2
A12-7143 [OD=5.9mm] <BLK> UL20726 2STP#30 + 1UTP#28 + 2C#26
3
USB MicB 3.0 sl 90D A1(10 pin Molded Plug) <BLK>
4
Cable Label
table 3-43, USB3 cable angled, components
figure 3-61, wiring USB3 cable angled
Pin
Signal
Description
1
VBUS
Power
2
D-
USB 2.0 signal pair
3
D+
4
ID
OTG Identification
5
GND
Power Ground
6
MicB_SSTX-
USB 3.0 SuperSpeed transmitter signal pair
7
MicB_SSTX+
8
GND_DRAIN
USB 3.0 signal Ground
9
MicB_SSRX-
USB 3.0 SuperSpeed receiver signal pair
10
MicB_SSRX+
table 3-44, USB3 connector, pin assignment
figure 3-62, label details USB3 cable angled
VBUS
D-
D+
GND
StdA-SSRX-
StdA-SSRX+
GND-DRAIN
StdA-SSTX-
StdA-SSTX+
1
2
3
5
6
7
8
9
10
VBUS
D-
D+
GND
MicB-SSTX-
MicB-SSTX+
GND-DRAIN
MicB-SSRX-
MicB-SSRX+
Shell
Shell
Braid Shield
Braid Shield
Red
Black
White
Green
White
Green
Blue
Yellow
Blue
Yellow
Violet
Orange
Violet
Orange
1
2
3
4
5
6
7
8
9
xx.x M X Y Z
Specified
Cable Length
Week
Year
