xiC - Technical Manual Version 1.16
35

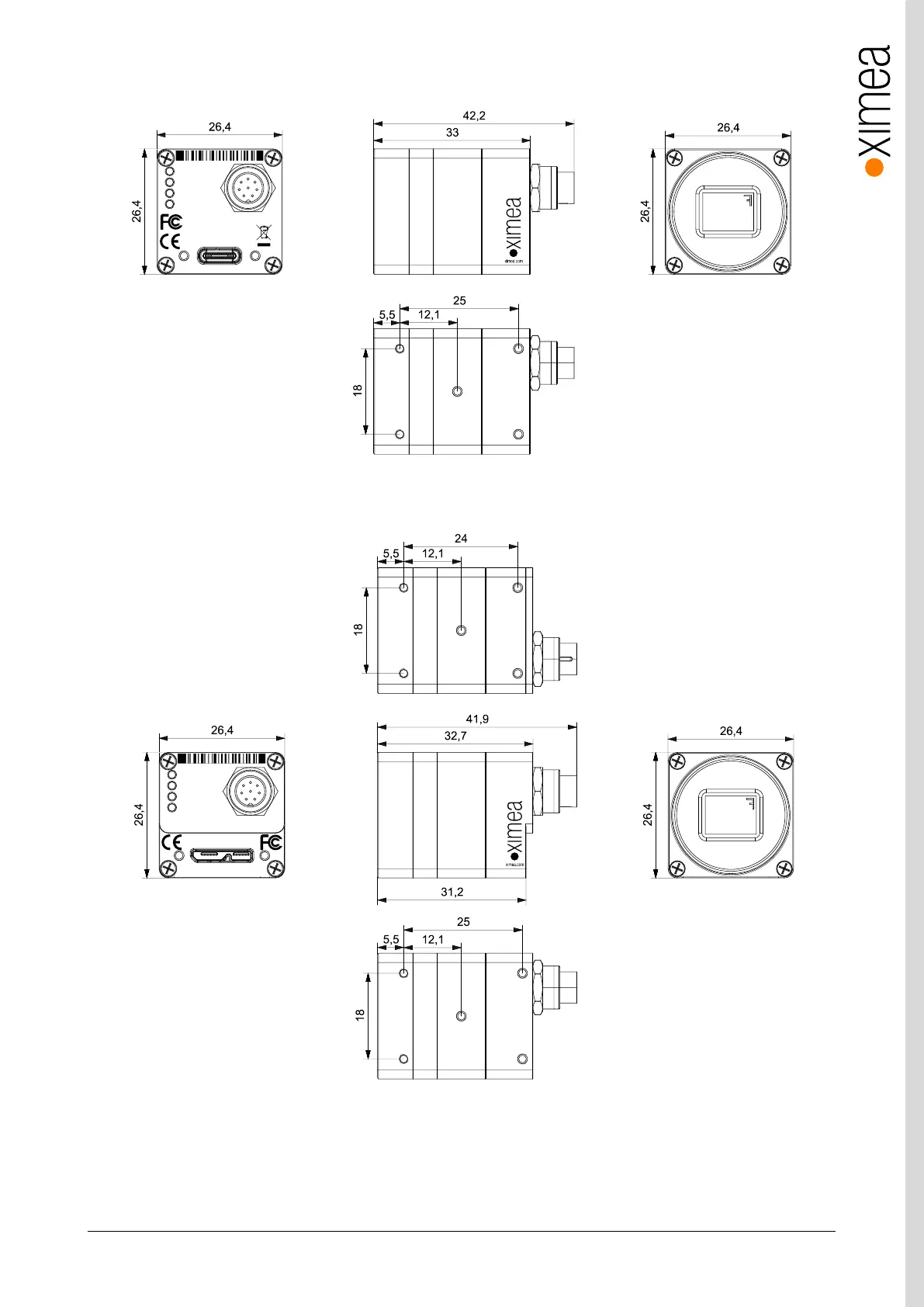

3.5.3.3. Dimensional drawings MC050xG-SY-TC (C-mount [with C/CS mount module B])
figure 3-17, dimensional drawing MC050xG-SY-TC, C-Mount housing
3.5.3.4. Dimensional drawings MC050xG-SY-UB (C-mount [with C/CS mount module B])
figure 3-18, dimensional drawing MC050xG-SY-UB, C-Mount housing
5 x M2 max
. depth 2 mm
mod.
: 25.0 x 18 mm (12.1 x 9 mm) C-mount
20.0 x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
USB 3.1
Gen 1
USB3VISION
xiC
1
2
3
4
MC050CG-SY-TC
CICAC1623001
Made in SK
IO
AUX
power
USB 3.1 Gen 1
Type C
5 x M2 max
. depth 2 mm
mod.
: 25.0(24.0) x 18 mm (12.1 x 9 mm) C-mount
20.0(19.0) x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
xiC
USB 3.1
Gen 1
USB3VISION
xiC
1
2
3
4
MC050CG-SY-UB
CICAU1623001 Made in SK
IO
AUX
power
For use with XIMEA approved connection cables only.
USB 3.1 Gen 1
