3.18. Tripod Adapter – MECH-MC-BRACKET-KIT
xiC series tripod mounting bracket

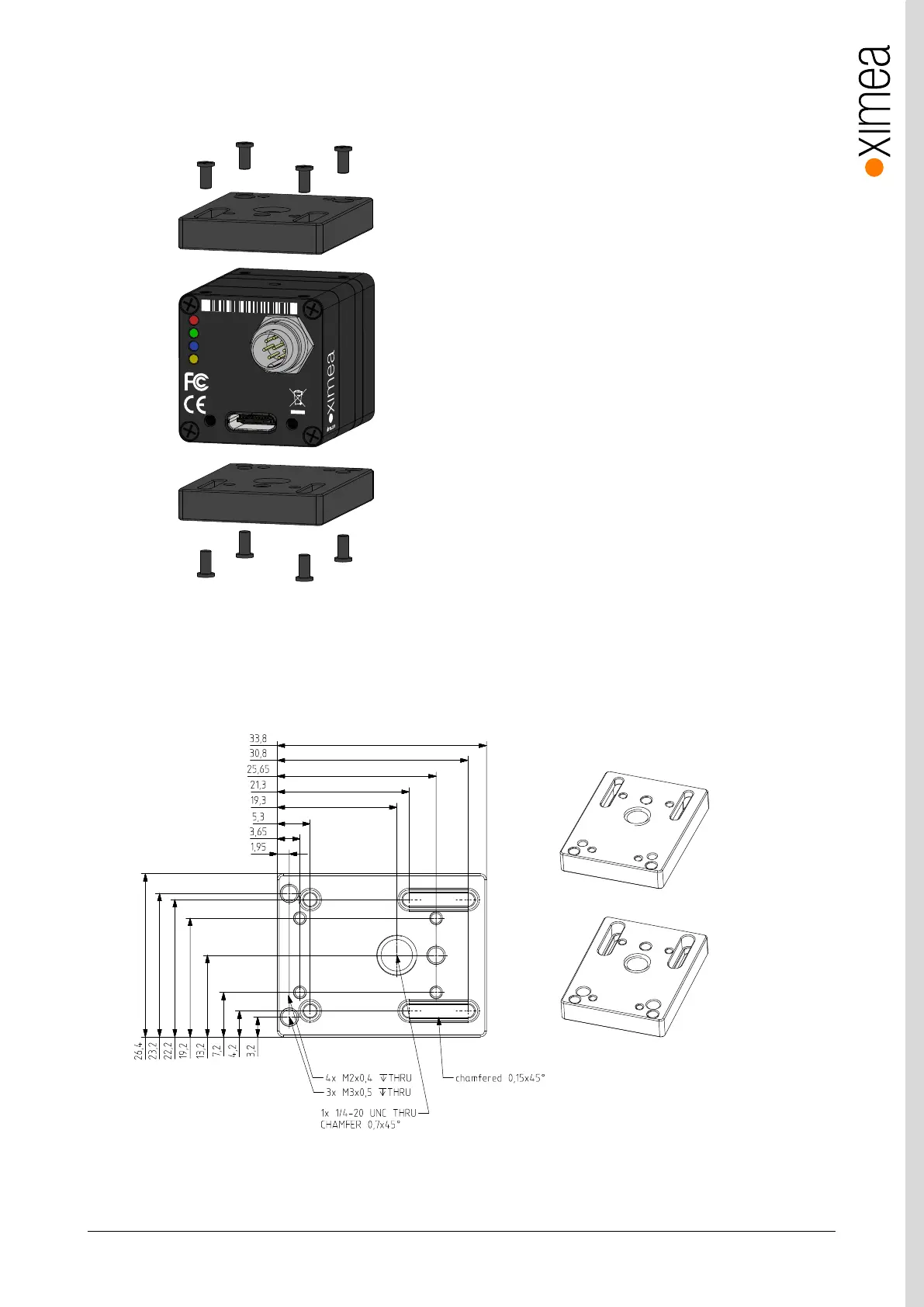

figure 3-67, mounting tripod adapter
xiC series tripod mounting bracket with 1/4-20 thread.
Use 4x SROB-M2x4-CUST screws (included) for mounting. Bracket can be mounted on the bottom or top side of the camera.
3.18.1. Dimensional drawings
figure 3-68, dimensional drawing tripod adapter
Mass without screws: 11.4 g.
