3.5.1.6. Dimensional drawings MC023xG-SY-FV (C-mount [with C/CS mount module B])

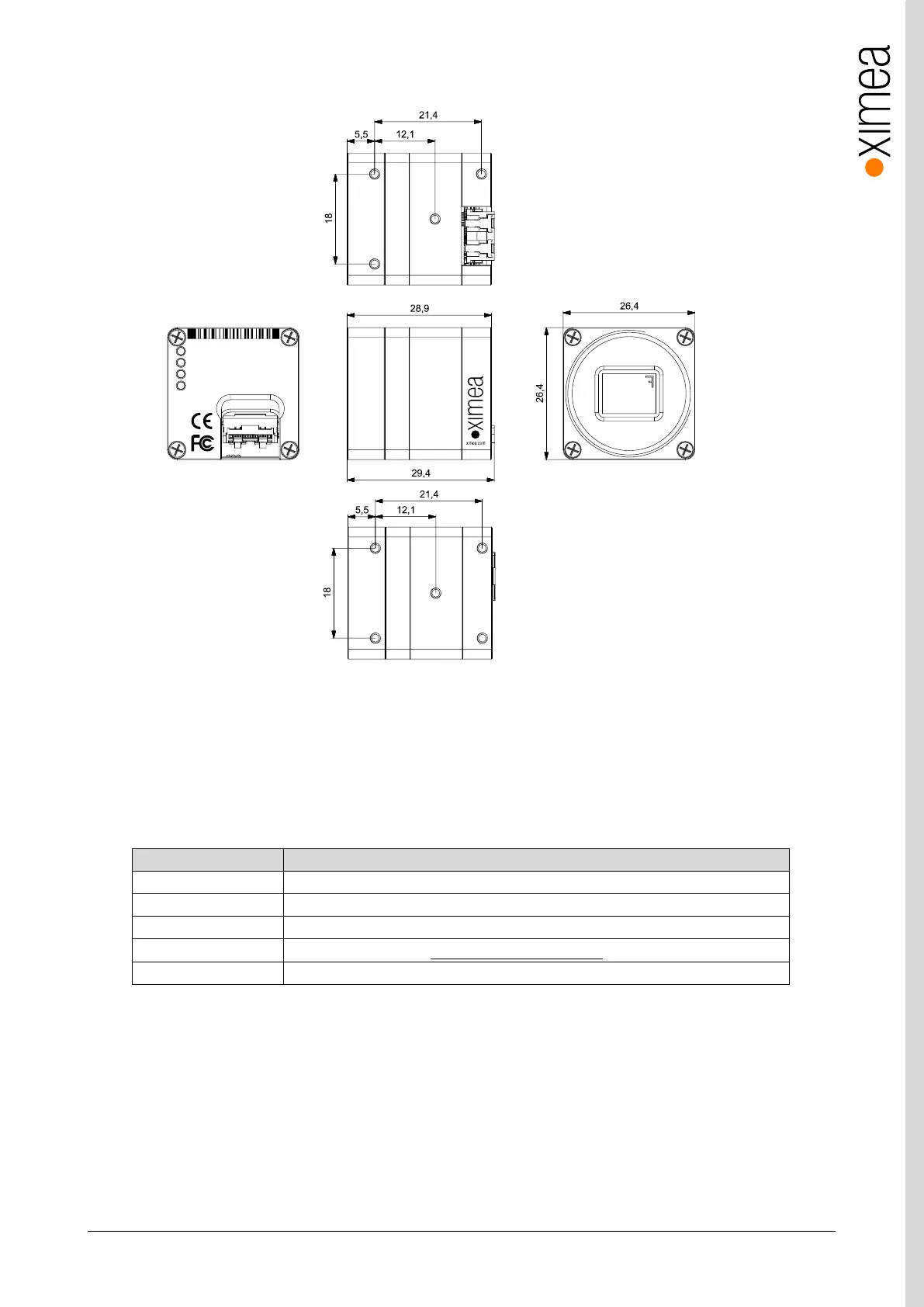

Figure 3-10 dimensional drawing MC023xG-SY-FV, C-Mount housing
3.5.1.7. Referenced documents
Sony Datasheet IMX174LQJ-C_E_TechnicalDatasheet_REv0.3 (01/06/14)
Sony Datasheet IMX174LLJ-C_E_data_sheet_E14315 (01/06/14)
3.5.1.8. Sensor features
feature
Note
Binning
No
Skipping
Not supported
ROI
Vertical cropping results in increased read speed, horizontal reduces data transfer
HW Trigger
Trigger with overlap (see 4.3.2.1 Triggered acquisition - )
HDR
Not available
table 3-8, sensor features available
xiC
1
2
3
4
MC023CG-SY-FV
CACAV1623001
Made in SK
USB 3.1 Gen 1
xiC
USB 3.1
Gen 1
USB3VISION
5 x M2 max
. depth 2 mm
mod.
: 21.4 x 18 mm (12.1 x 9 mm) C-mount
16.4 x 18 mm (7.1 x 9 mm) CS-mount
C/CS-Mount module
A
Remove this module
for CS mount back
focal distance
C/CS-Mount module B
