xiC - Technical Manual Version 1.16

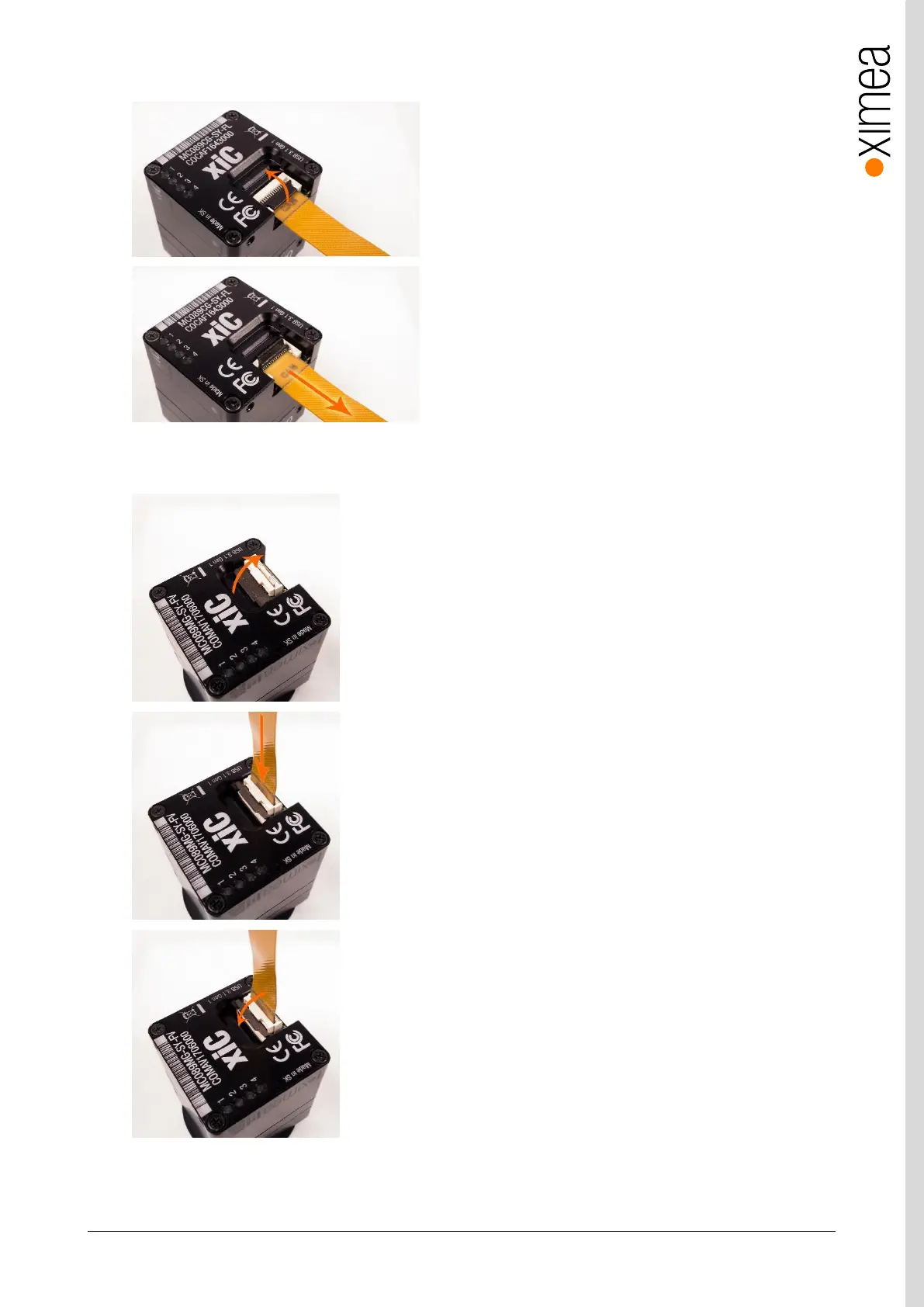

Detaching FPC cable MX X2G2 option –FL
Open connector lock
Pull cable gently in marked direction.
figure 3-40, MC FPC detach procedure option -FL
Inserting FPC cables MC option -FV
Open connector lock
Insert cable
Close connector lock.
figure 3-41 MC FPC insert procedure option -FV
