Connecting an external device
Using the transceiver for packet communications
Connecting the transceiver to a TNC (Terminal Node Controller) enables packet
communications through the transceiver.
● Preparation
• TNC
• Computer
• Data cable* … Prepare a cable suitable for the connected device.
*The following optional products are available.

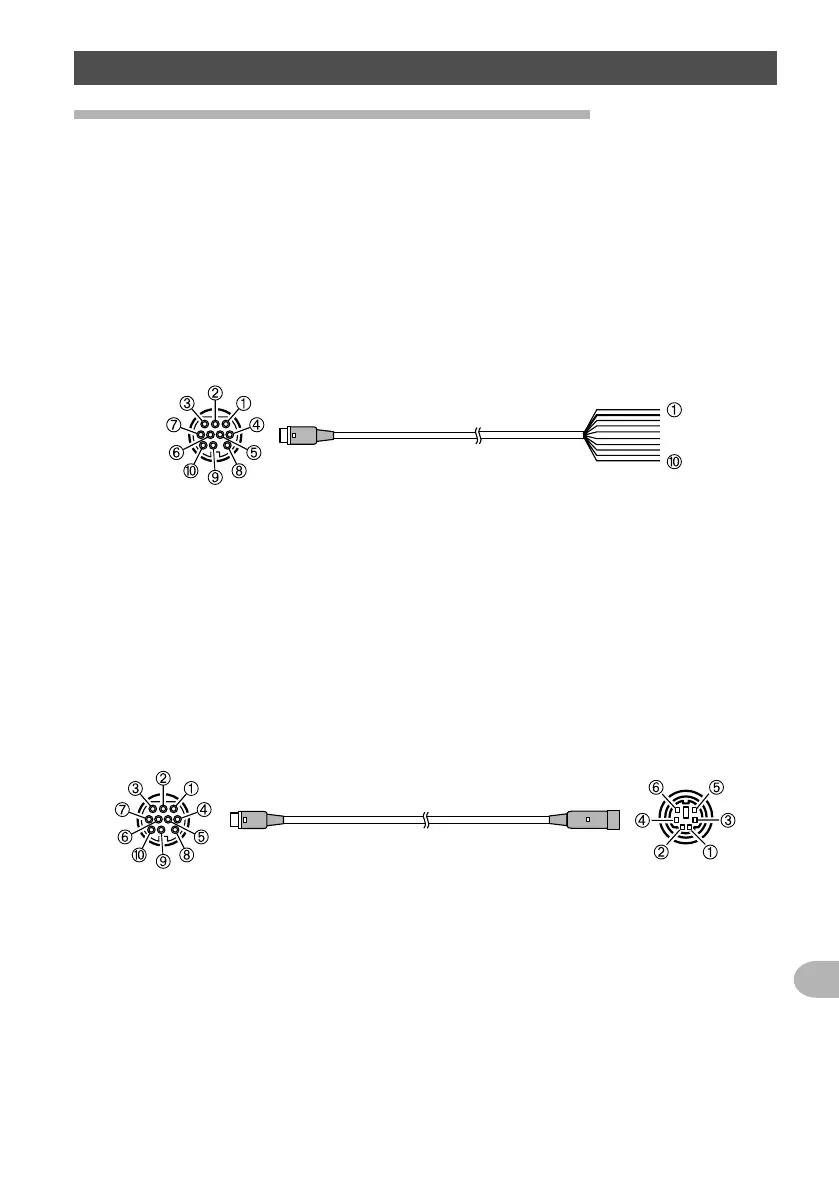

• Data cable “CT-167” (optional)

To the transceiver
To the TCN, etc.
➀ PKD (packet data input)
➁ GND
➂ PSK (PTT)
➃ RX 9600 (9,600 bps packet data output)
➄ RX 1200 (1,200 bps packet data output)
➅ PK SQL (squelch control)
➆ TXD (serial data output [transceiver → PC])
➇ RXD (serial data input [transceiver ← PC])
➈ CTS (data communication control)
➉ RTS (data communication control)
➀ brown PKD (packet data input)
➁
thick black GND
➂ red PSK (PTT)
➃ orange RX 9600 (9,600 bps packet data output
➄ yellow RX 1200 (1,200 bps packet data output)
➅ green PK SQL (squelch control)
➆ blue TXD (serial data output [transceiver → PC])
➇ gray RXD (serial data input (transceiver ← PC])
➈ white CTS (data communication control)
➉ black RTS (data communication control)
• Data cable “CT-164” (optional)
To the transceiver To the TCN, etc.
➀ PKD (packet data input)
➁ GND
➂ PSK (PTT)
➃ RX 9600 (9,600 bps packet data output)
➄ RX 1200 (1,200 bps packet data output)
➅ PK SQL (squelch control)
➆ –
➇ –
➈ –
➉ –
➀ PKD (packet data input)
➁ GND
➂ PSK (PTT)
➃ RX 9600 (9,600 bps packet data output
➄ RX 1200 (1,200 bps packet data output)
➅ PK SQL (squelch control)
