Yaesu FTM-100DR/DE User Manual

19
Before Use
Nameandfunctionofeachcomponent

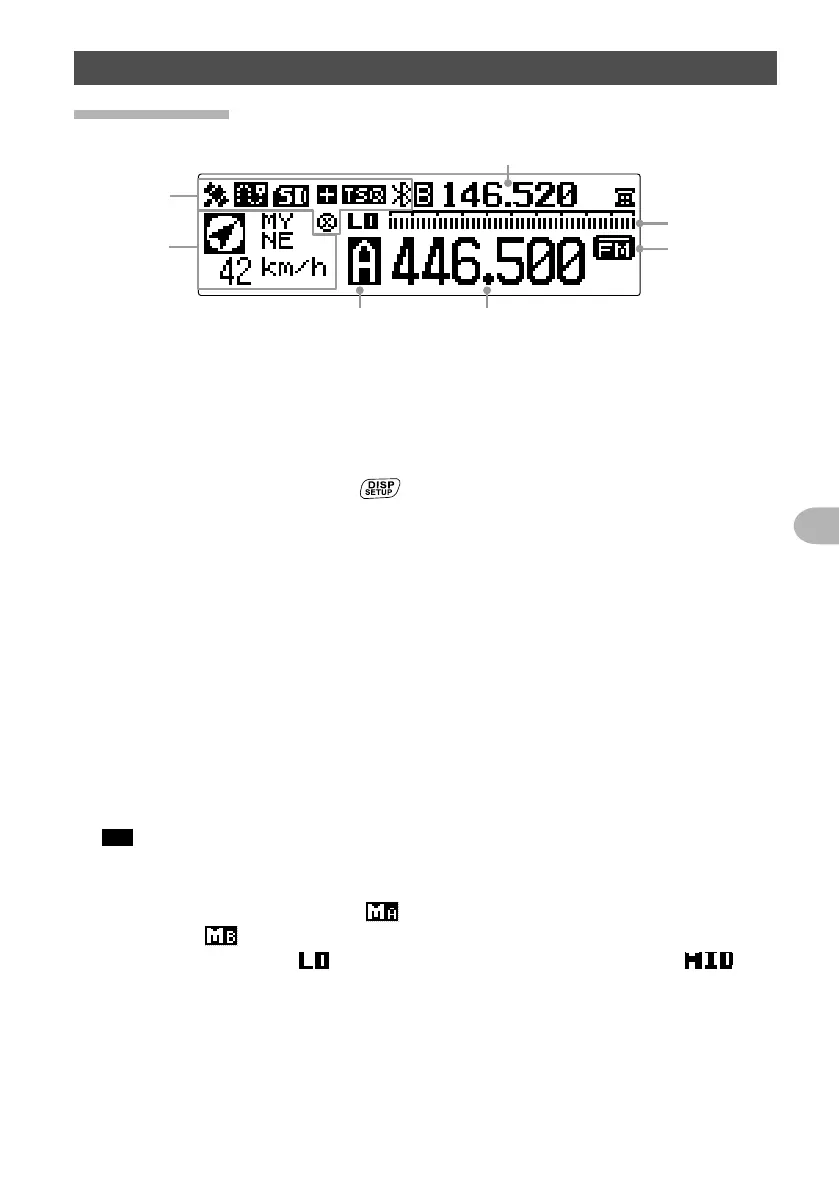

Screendisplay
②
③
⑦⑥
⑤
④
①
➀ Icon display
Displays the Bluetooth, APRS, micro-SD memory card and GPS icons when each
function is in use.
➁ Station location information display
Displays the received station’s location information and your station location
information. Briefly pressing the
key each time switches the displayed data
between the received station location, and your station location.
➂ Sub-band frequency display
While in VFO mode, displays the sub-band name (A or B) and sub-band frequency.
While in memory mode, displays the registered frequency or memory tag.
➃ S-meter display
Displays the S-meter bar graph. Displays the squelch level while adjusting the
squelch.
Functions as a power indicator during transmission.
➄ Communication mode display
Displays the current operating mode, such as analog and digital using abbreviations.
Auto mode is indicated with a flashing bar appearing above the abbreviation. In
Auto mode, the communication mode is automatically set according to the receiving
signal.
Tip The AMS functions can be changed in the Setup menu from [2TX/RX] → [3AMSTXMODE].
➅ Indicates the operating band name, memory channel, and transmission.
When in VFO mode, the operating band name (A or B) is displayed.
While in memory mode, displays
and the memory channel number for the
A-band, and
and the memory channel number for the B-band.
When transmit is keyed,
indicates the “LO” level transmit power, and
indicates the “MID” level transmit power.
➆ Frequency display
Displays the operating band frequency.

Yaesu FTM-100DR/DE Specifications

General

Frequency Range	144-148 MHz, 430-450 MHz
Modulation Types	FM, C4FM
Display Type	Color TFT
Memory Channels	1000
GPS	Yes
APRS	Yes
Operating Modes	Simplex, Repeater
Supply Voltage	13.8V DC
Bluetooth	Yes
RF Power Output	50W
