Using EQ 133
DM2000 Version 2—Owner’s Manual

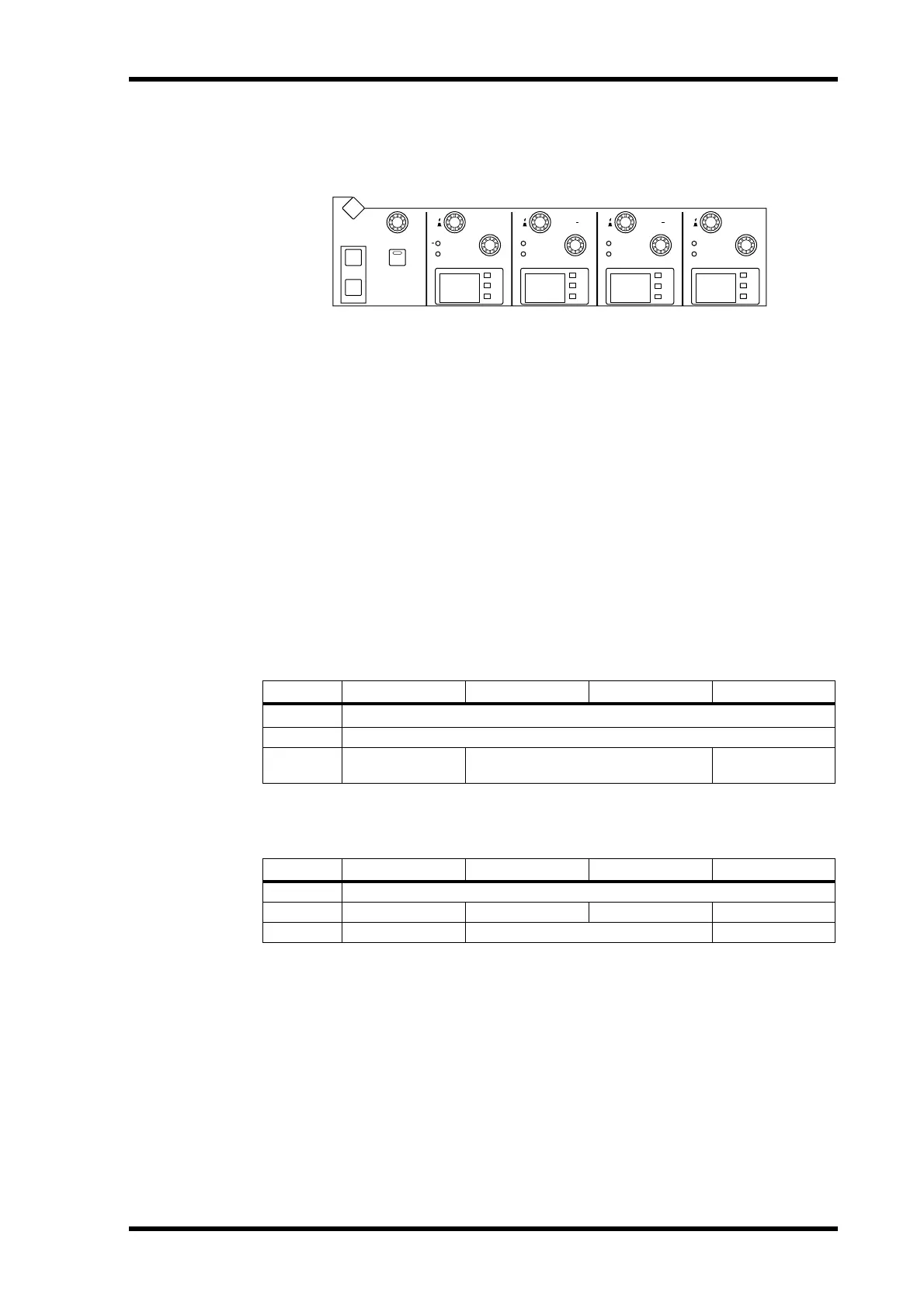

Using the SELECTED CHANNEL EQUALIZER Controls
1 Use the LAYER buttons to select Layers, and use the [SEL] buttons to select
channels.
2 Use the [EQ ON] button to turn the EQ on or off.
3 Use the GAIN controls to set the gain of each band.
When a GAIN control is adjusted, the gain in dB is displayed on the corresponding EQ dis-
play. If the GAIN control is not adjusted for two seconds, the EQ display returns to display-
ing the frequency.
4 To set the frequency, press a FREQUENCY/Q control so that the FREQUENCY
indicator lights up, and use the FREQUENCY/Q control to set the frequency.
The frequency is displayed by the corresponding EQ display.
5 To set the Q, press a FREQUENCY/Q control so that the Q indicator lights
up, and use the FREQUENCY/Q control to set the Q.
The Q value is displayed by the corresponding EQ display. If the Q control is not adjusted
for two seconds, the EQ display returns to displaying the frequency.
To r eset an individual gain control, hold down the corresponding FREQUENCY/Q control.
To reset all gain controls, press the LOW and HIGH FREQUENCY/Q controls.
The EQ parameter ranges are as follows.
The initial EQ parameter settings are as follows.
Parameter LOW LOW-MID HIGH-MID HIGH
Gain
–18.0 dB to +18.0 dB (0.1 dB steps)
1
1. The LOW and HIGH GAIN controls function as filter on/off controls when Q is set to HPF or LPF respec-
tively.
Frequency 21.2 Hz to 20.0 kHz (120 steps per 1/12 octave)
Q
HPF, 10.0 to 0.10
(41 steps), L.SHELF
10.0 to 0.10 (41 steps)
LPF, 10.0 to 0.10
(41 steps), H.SHELF
Parameter LOW LOW-MID HIGH-MID HIGH
Gain 0 dB
Frequency 125 Hz 1.00 kHz 4.00 kHz 10.0 kHz
Q L.SHELF 0.70 H.SHELF
CHANNEL
COPY
PASTE
EQ ON
AT T.
dB
Hz
kHz
HIGH
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
DISPLAY
HIGH MIDLOW MID
10.04.001.00125
EQUALIZER
LOW
