150 Chapter 12—Common Channel Functions
DM2000 Version 2—Owner’s Manual
Viewing Channel Parameter Settings
The parameter setting of the currently selected Input Channel, Bus Out, Aux Send, Matrix
Send, or the Stereo Out can be viewed and set on the Parameter View pages.
1 Use the DISPLAY ACCESS [VIEW] button to select the Parameter View page.
2 Use the LAYER buttons to select Layers, and use the [SEL] buttons to select
channels.
3 Use the cursor buttons to select the parameters, and use the Parameter
wheel, INC/DEC buttons, and [ENTER] buttons to set them.
Input Channels

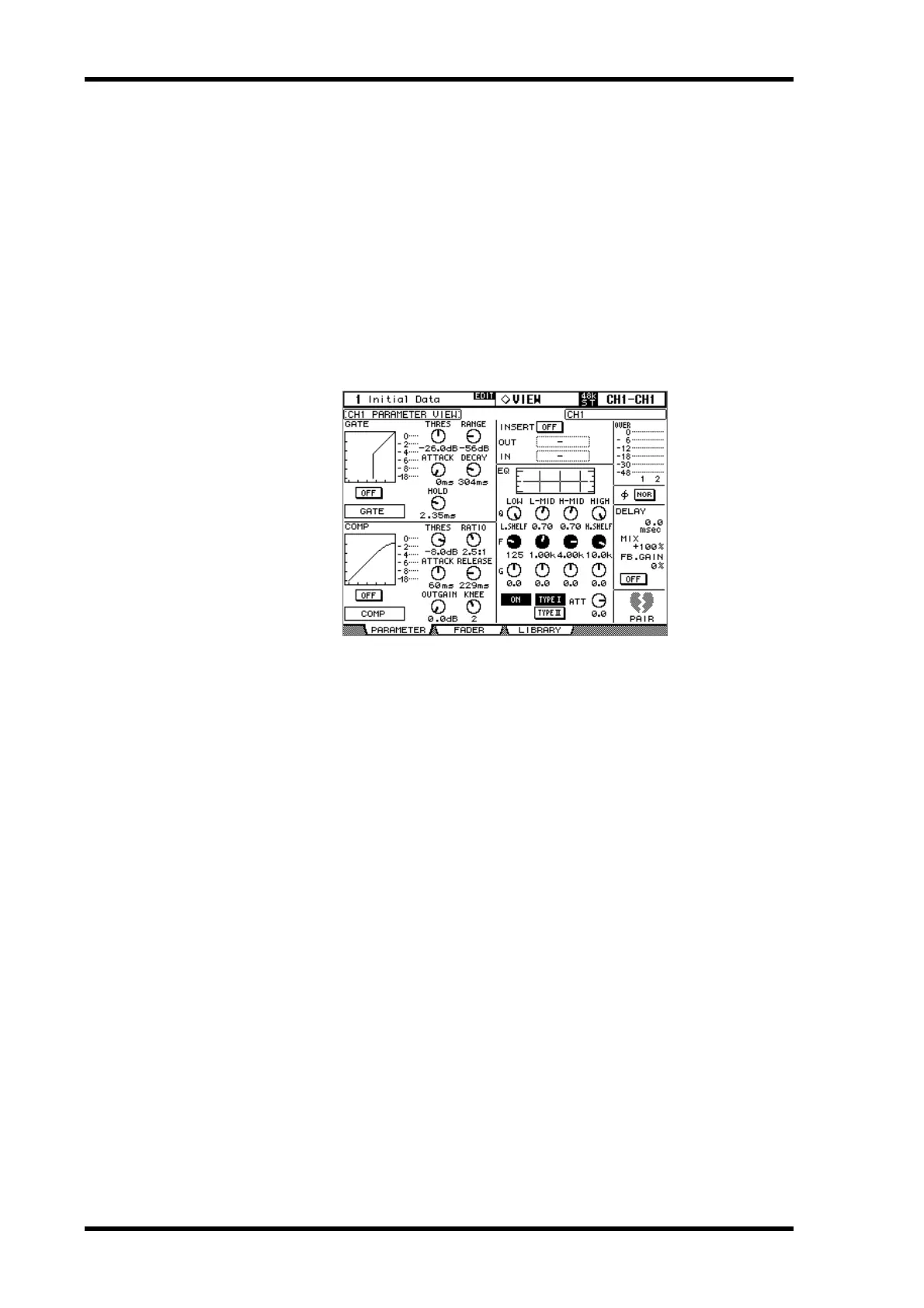

This is the Parameter View page for the Input Channels.
GATE: The following Gate parameters for the currently selected Input Channel can be set:
Gate On/Off, Threshold, Range, Attack, Decay, and Hold. The GR meter indicates the
amount of gain reduction being applied by the Gate. Also displayed are the gate curve and
gate type. See ā€œGating Input Channelsā€ on page 85 for more information.
COMP: The following Compressor parameters for the currently selected channel can be
set: Comp On/Off, Threshold, Ratio, Attack, Release, Gain, and Knee. The GR meter indi-
cates the amount of gain reduction being applied by the Compressor. Also displayed are the
comp curve and comp type. See ā€œCompressing Channelsā€ on page 137 for more informa-
tion.
INSERT: The currently selected channel’s Insert can be turned on and off and patched. See
ā€œUsing Insertsā€ on page 135 for more information.
EQ: The currently selected channel’s EQ and Attenuator can be set. Also displayed is the EQ
curve of the currently selected Input Channel. See ā€œUsing EQā€ on page 131 for more infor-
mation.
Meters: These meters indicate the levels of the currently selected channel and its horizon-
tal or vertical partner.
Phase: The signal phase of the currently selected Input Channel can be reversed. See
ā€œReversing the Signal Phaseā€ on page 84 for more information.
DELAY: The currently selected channel’s Delay function can be set. See ā€œDelaying Channel
Signalsā€ on page 141 for more information.
PAIR: This heart icon indicates whether or not channels are paired. See ā€œPairing Channelsā€
on page 144 for more information.
