386 Appendix D: Options

DM2000 Version 2—Owner’s Manual

Appendix D: Options

MB2000 Peak Meter Bridge

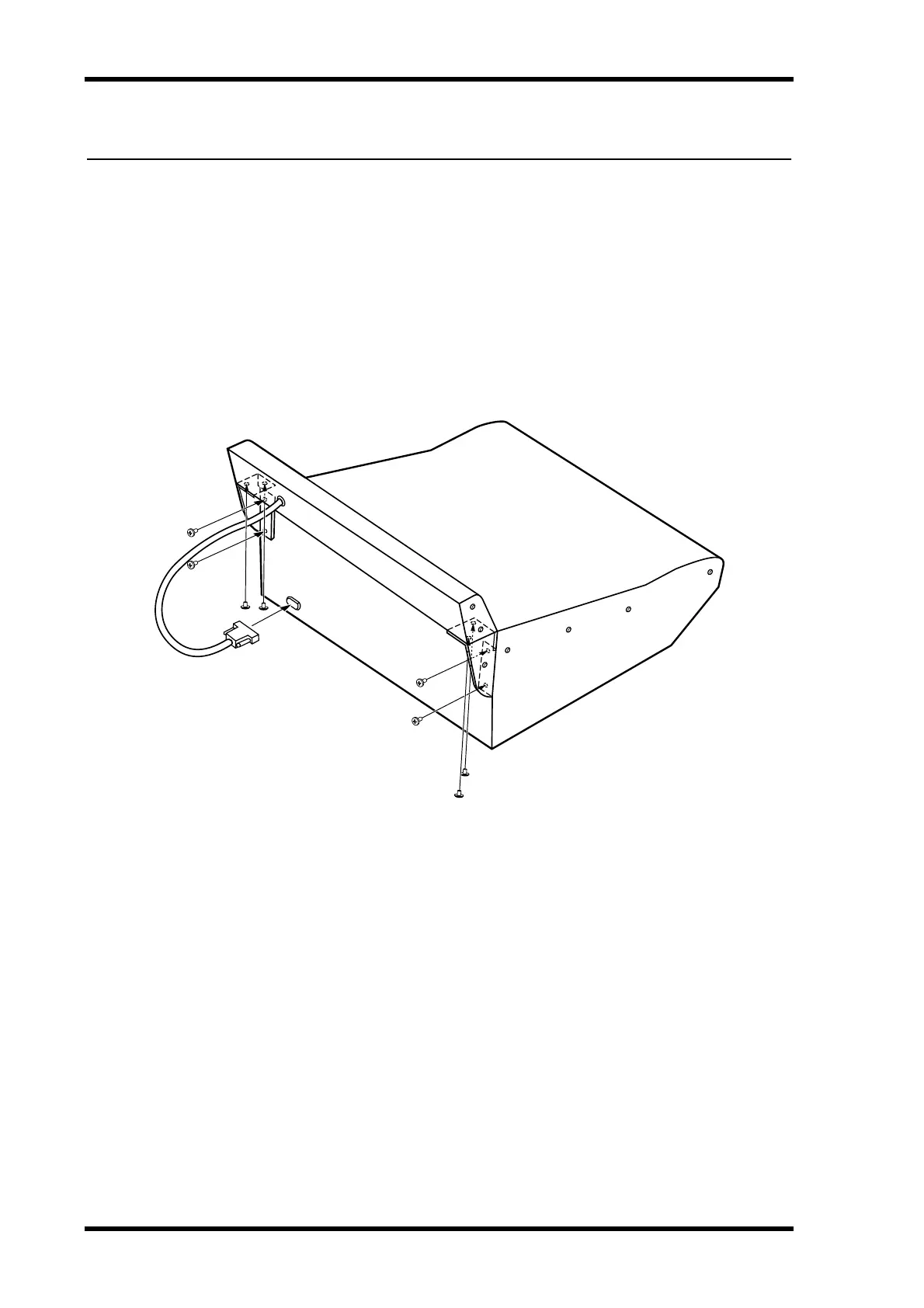

Installation

1 Attach the brackets to the meter bridge.

2 Screw the four ﬁxing screws into the DM2000, but don’t tighten them fully.

3 Align the meter bridge with the four screws, and then tighten the screws.

4 Connect the meter bridge cable to the DM2000’s METER port.
