228 Chapter 19—Pro Tools Remote Layer
DM2000 Version 2—Owner’s Manual
MATRIX SELECT Section
[MATRIX 1] (DEFAULT) button
This button is used in conjunction with other controls to reset faders, panpots, sends, and
plug-ins to their default values. See “Resetting Faders, Sends, Panpots & Plug-ins” on page
247 for more information.
[MATRIX 2] (SEND MUTE) button
This button is used in conjunction with the Encoder push-switches to mute sends. See
“Muting Sends” on page 243 for more information.
[MATRIX 4] (INSERT BYPASS) button
This button is used in conjunction with other controls to bypass plug-ins. See “Bypassing
Individual Plug-ins” on page 246 for more information.
AUX SELECT Section
AUX SELECT [AUX 1]–[AUX 5] buttons are used to select sends A–E. The button indicator
of the currently selected send lights up.
ENCODER MODE Section
[PAN] (PAN) button
When this button is pressed, the Encoders work as channel panpots. Its indicator lights up
when it’s pressed. See “Panning Channels” on page 241 for more information.
[AUX/MTRX] (SEND LEVEL) button
When this button is pressed, the Encoders work as send level controls. Its indicator lights
up when it’s pressed, and send A is selected automatically. If the Encoders are currently set
to control pan, its indicator lights automatically when one of the AUX SELECT
[AUX 1]–[AUX 5] (SEND A–E) buttons is pressed.

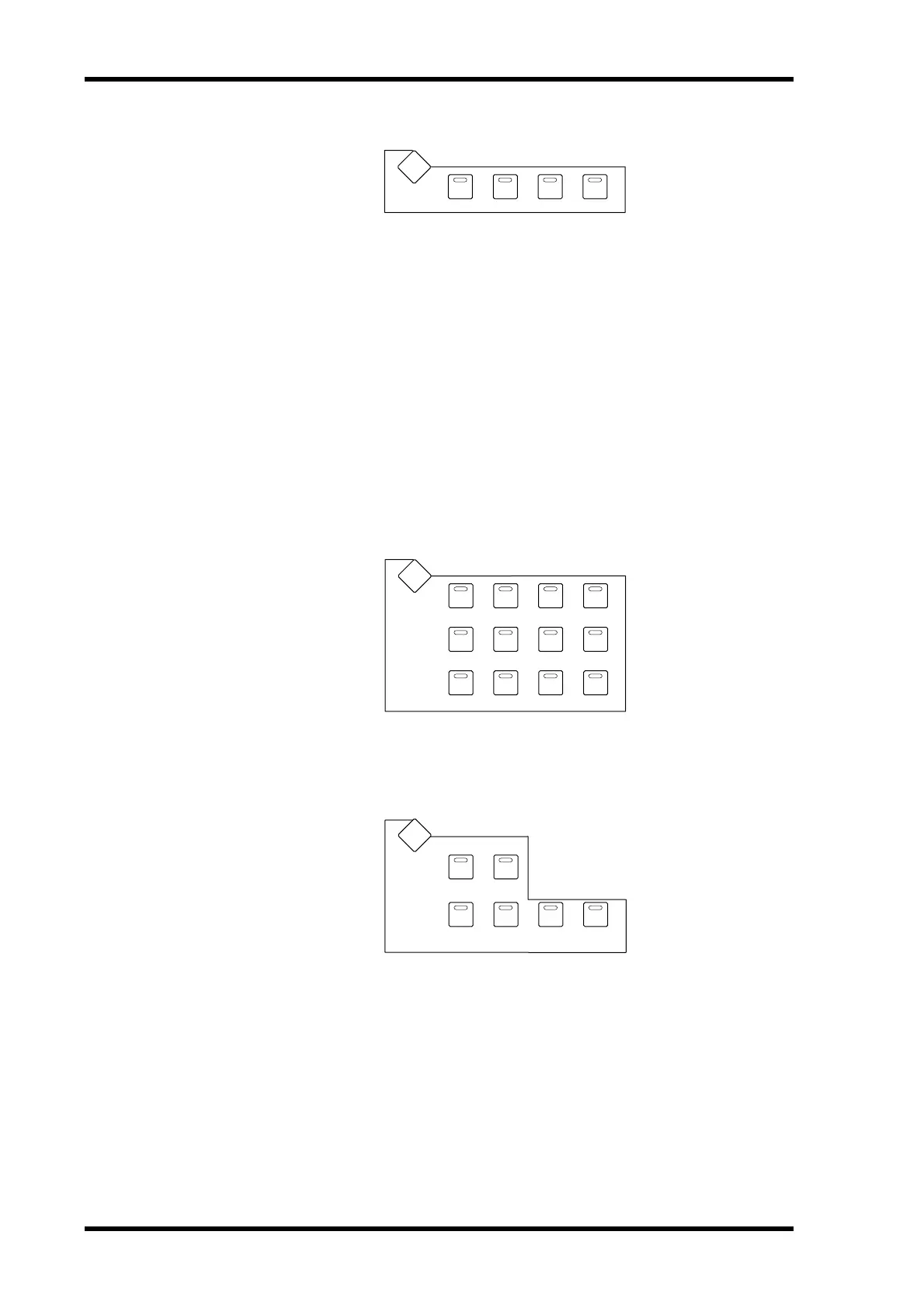

MATRIX SELECT
MATRIX 2 MATRIX 4
MATRIX 1
(SEND MUTE) (INSERT BYPASS)
(DEFAULT)
AUX 2AUX 1 AUX 3 AUX 4
AUX 5
(SEND B)(SEND A) (SEND C) (SEND D)
(SEND E)
AUX SELECT
AUX / MTRX
PAN
ASSIGN 4ASSIGN 3ASSIGN 2ASSIGN 1
PAN SEND LEVEL
INSERTSEND ASSIGNOUTPUTINPUT
ENCODER MODE
