Viewing Channel Fader Settings 151
DM2000 Version 2—Owner’s Manual
Output Channels

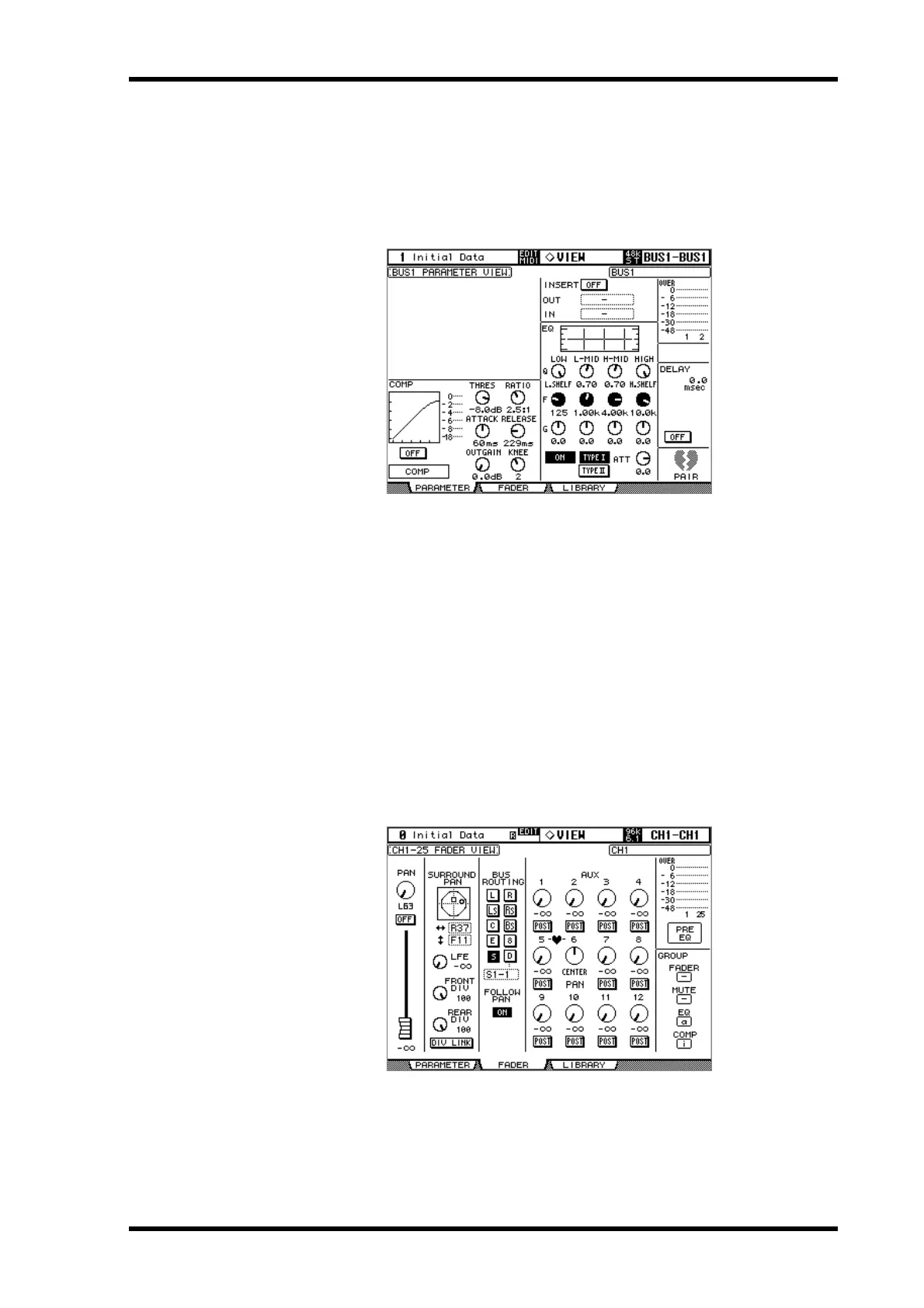

This is the Parameter View page for the Bus Outs, Aux Sends, Matrix Sends, and the Stereo
Out. Parameters are the same as for the Input Channel Parameter View page, minus the
GATE and Phase sections and the DELAY MIX and FB GAIN parameters. The parameter
settings of the left and right channels of the Matrix Sends and Stereo Out can be viewed
individually. Use the [SEL] buttons to toggle between the left and right channels.
Viewing Channel Fader Settings
The fader-related settings of the currently selected Input Channel, Bus Out, Aux Send,
Matrix Send, or the Stereo Out can be viewed and set on the Fader View pages.
1 Use the DISPLAY ACCESS [VIEW] button to select the Fader View page.
2 Use the LAYER buttons to select Layers, and use the [SEL] buttons to select
channels.
3 Use the cursor buttons to select the parameters, and use the Parameter
wheel, INC/DEC buttons, and [ENTER] buttons to set them.
Pan and Balance controls can be set to center by pressing [ENTER] while they’re selected.
Input Channels
This is the Fader View page for the Input Channels.
PAN: This is the currently selected Input Channel’s Pan parameter. Select this parameter
using the cursor buttons, then press the [ENTER] button to set the Pan parameter to Cen-
ter. See “Panning Input Channels” on page 95 for more information.
ON/OFF: This is the On/Off parameter of the currently selected Input Channel. See “Mut-
ing Input Channels (ON/OFF)” on page 88 for more information.

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
