Control Surface 41
DM2000 Version 2—Owner’s Manual
Monitor, Phones & Talkback Section
A

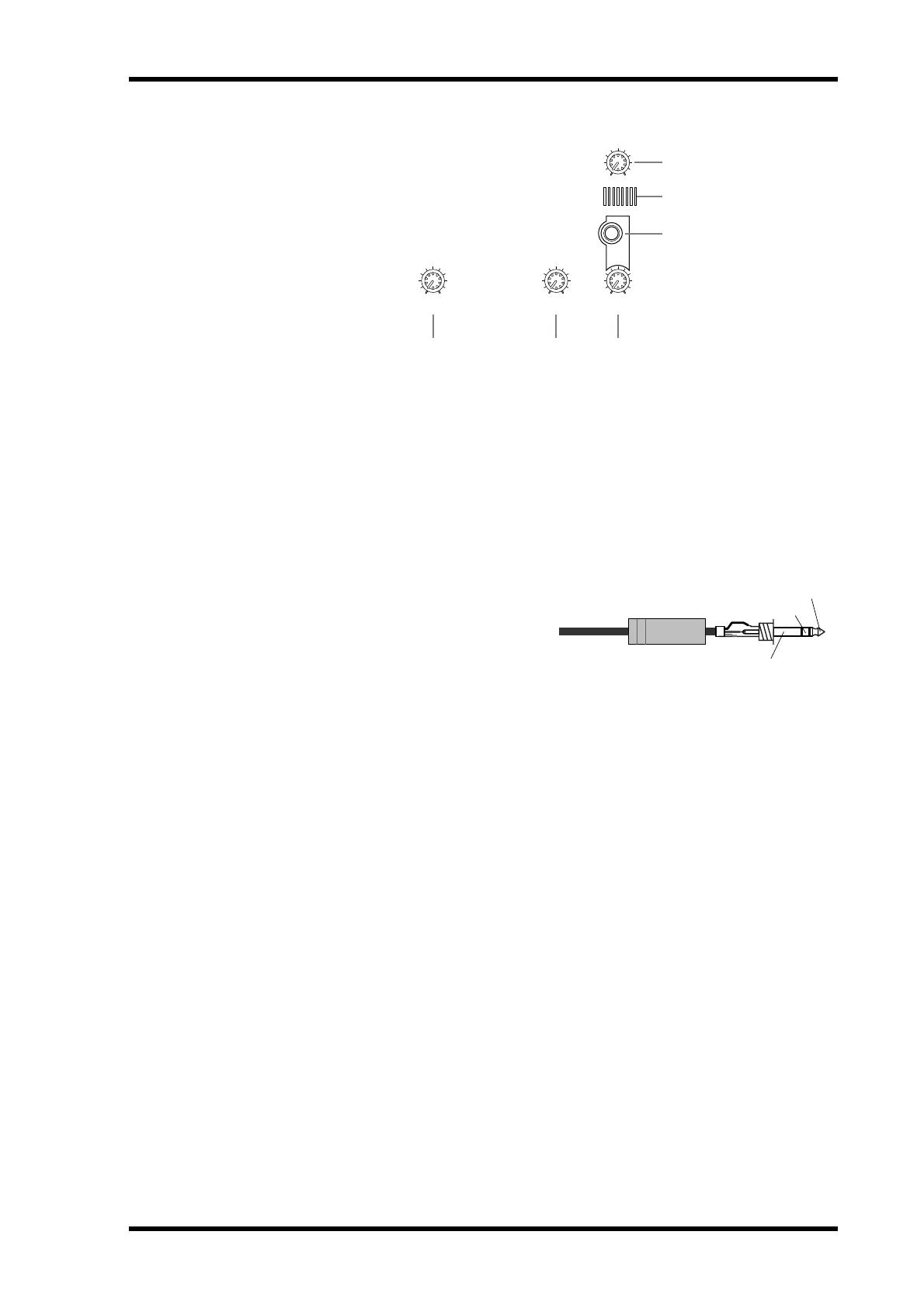

SMALL TRIM control
This control is used to set the level of the SMALL CONTROL ROOM MONITOR OUT. See
“Control Room Monitoring” on page 158 for more information.
B STUDIO LEVEL control
This control is used to set the level of the STUDIO MONITOR OUT. See “Studio Monitor-
ing” on page 159 for more information.
C PHONES LEVEL control
This control is used to set the level of the PHONES. See “Control Room Monitoring” on
page 158 for more information.
D PHONES jack
This stereo TRS phone jack outputs the
Control room signal for monitoring via a
pair of stereo headphones.
E Talkback mic
This built-in microphone is used for talkback. See “Using Talkback & Slate” on page 163 for
more information.
F TALKBACK LEVEL control
This control is used to set the level of the built-in talkback microphone. See “Using Talkback
& Slate” on page 163 for more information.
TALKBACK LEVEL
PHONES
LEVEL
PHONES
STUDIO
LEVEL
010 010
010
SMALL
TRIM
0010
4
6
5
1 2 3
1/4" TRS phone plug
Tip (left)
Ring (right)
Sleeve (ground)
