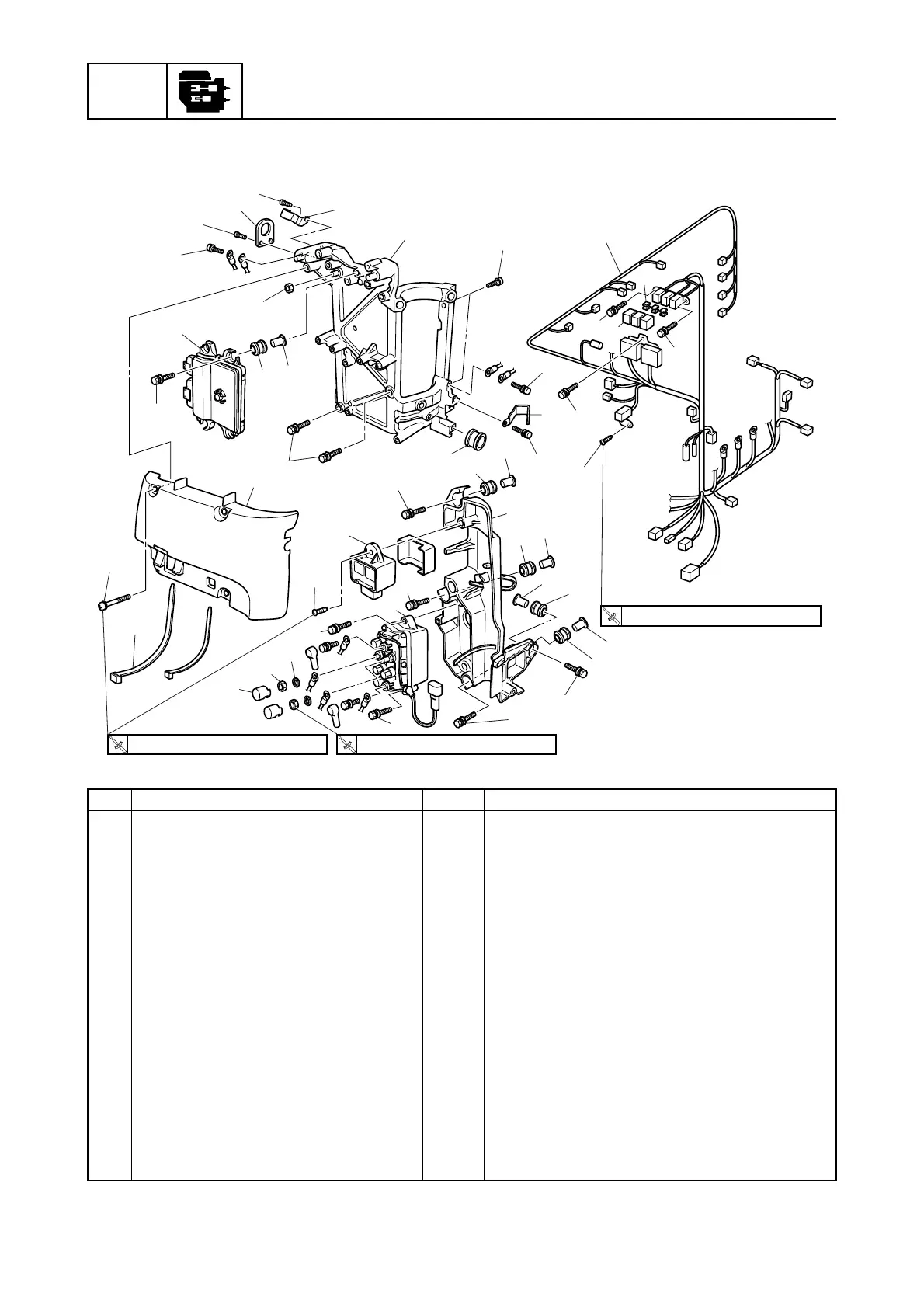

Yamaha F50F - Page 102

POWR
Power unit
5-11
6C13G11
5
No. Part name Q’ty Remarks
1Bracket 1
2 Junction box 1
3ECM 1
4 Main and fuel pump relay 1
5 Power trim and tilt relay 1
6 Cover 1
7 Wiring harness 1
8Bolt 8 M6
×
28 mm
9Grommet 8
10 Collar 8
11 Screw 1 ø6
×
19 mm
12 Bolt 2 M6
×
20 mm
13 Screw 4 ø6
×
55 mm
14 Bolt 2 M8
×
35 mm
15 Nut 1
16 Bolt 1 M6
×
20 mm
17 Engine hanger 1
S6C15060
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
