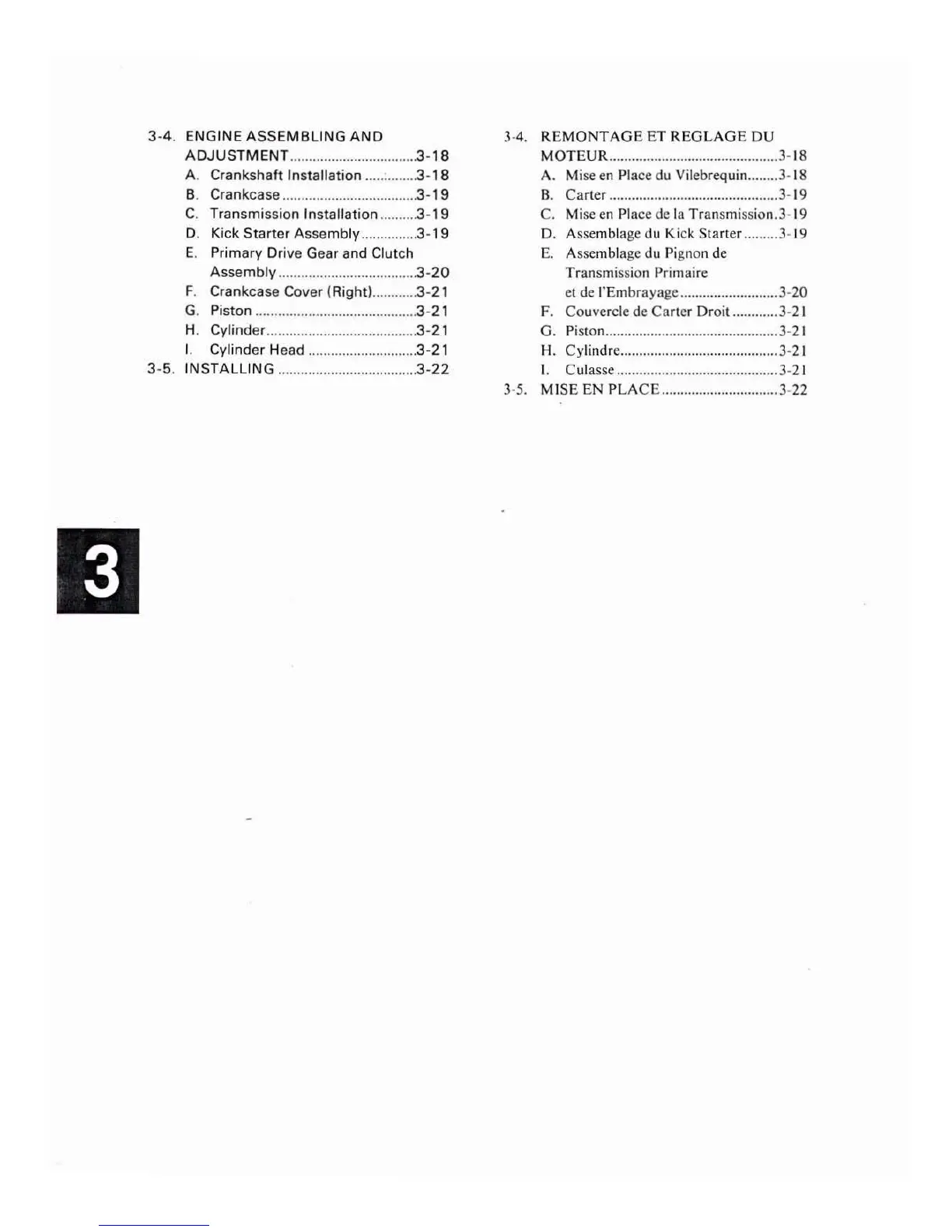

Yamaha MA50 - Engine Assembly and Adjustment

3-4. ENGINE ASSEMBLING AND
ADJUSTMENT .................................. 3- 18
A. Crankshaft Installation ..... : ........ 3- 18
B. Crankcase .................................... 3-19
C. Transmission Installation .......... 3-19
D. Kick Starter Assembly .. ... .......... 3-19
E. Primary Drive Gear and Clutch
Assembly .................. .. ................. 3- 20
F. Crankca se Cover (Ri ght ) ............ 3-21
G. Piston .... .............. .. ....................... 3- 21
H. Cylinder .............................. .. ........ 3- 21
I. Cylinder Head ............................. 3-21
3-5. I NSTALLING ...................... .. ... .......... 3- 22
3- 4. REMONTAGE ET REGLAGE DU
MOTEUR ............................................. 3-18
A. Mise en Place du Vilebrequin ........ 3- 18
B. Car ter ............................................. 3-19
C. Mise en Place de la Transmission.3-19
D. A
sse mbla ge du Kick Starter ......... 3- 19
E. Assemblage du Pi gnon de
Transmission Primaire
et de l' Embrayage .... .. .................... 3-20
F. Couvercle de Carter Droit ............ 3-2 1
G. Piston ........................ .. .................... 3- 21
H. Cyl indre .......................................... 3- 21
I. Cula sse .. .......... ... ............ .. .............. 3- 21
3- 5. MISE EN PLACE ............................... 3- 22
