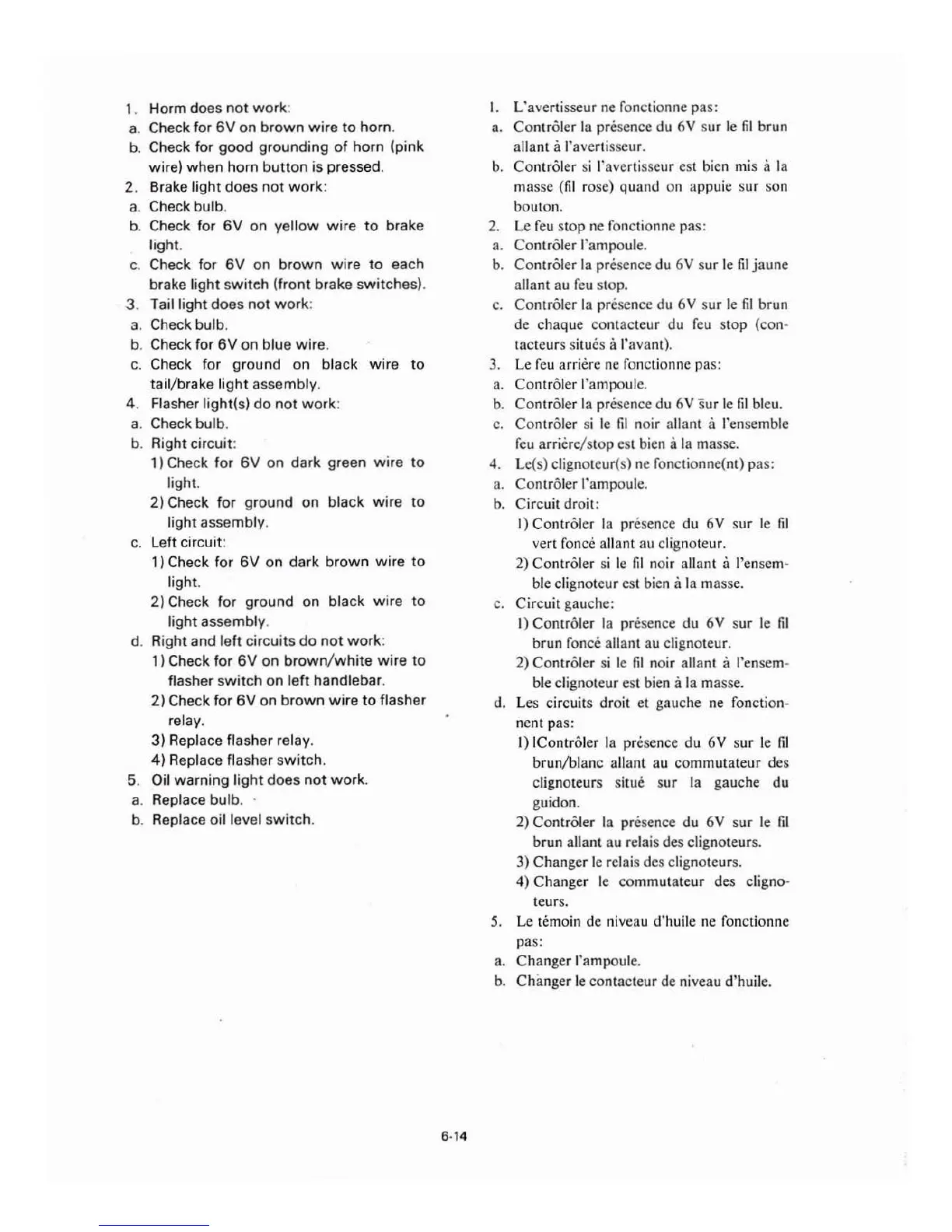

1 . Horm does
not
work
:
a. Check for
6V
on
brown
wire
to
horn.
b. Check for
good
grounding
of
horn
(pink
wire) when horn
button
is
pressed.
2. Brake
light
does
not
work
:
a. Check
bulb.
b. Check for
6V
on
yellow
wire
to
brake
light.
c. Check
for
6V
on
brown
wire
to
each
brake
light
switeh (front brake switches).
3 . Tail l
ight
does
not
work
:
a.
Check bulb.
b. Check for
6V
on
blue
wire
.
c.
Check for
ground
on
black
wire
to
tail/brake
light
assembly.
4. Flasher light(s)
do
not
work
:
a.
Check bulb.
b. Right
circuit
:
1 ) Check
for
6V
on
dark green
wire
to
light.
2) Check
for
ground
on
black
wire
to
light
assembly.
c.
Left circuit:
1) Check
for
6V
on
dark
brown
wire
to
light
.
2) Check for ground
on
black
wire
to
light
assembly.
d. Right
and
l
eft
circuits
do
not
work
:
1) Check
for
6V
on
brown/white
wire
to
flasher
switch
on
left
handlebar.
2)
Check
for
6V
on
brown
wire
to
flasher
relay.
3)
Replace flas
her
relay.
4)
Replace flasher
sw
itch
.
5.
Oil
warning
light
does
not
work
.
a.
Replace
bu
lb. ·
b. Replace
oil
level
switch.
6·14
I.
L 'avertisseur
ne
fonctionne pas:
a.
Controler la
presence
du
6V
su
r le fil brun
allanl a l'avertisseur.
b.
Controler si l'averti
sseu
r
est
bien mis a la
masse
(fil ros
e)
quand on appuie sur
so
n
bouL
on.
2.
Le f
eu
stop
ne
fonctionne pas:
a.
Controler rampoule.
b.
Controler la
presence
du
6V
s
ur
le
Iii
jaune
allant au
feu
stop.
c.
Controler la presence du 6V sur
le
fil brun
de
chaque co
nt
acteur du
feu
stop (con-
tacteurs
situ
es
a l'avant).
3.
Le
feu
arriere
ne
fonctionnc pas:
a.
Cont
roler !'ampoul
e.
b.
Controler la
presence
du 6V sur
le
Iii
bleu.
c.
Controler
si
le
Iii noir allant a l'ensemble
feu
arriere/ stop est bien a la
masse.
4. Le(s) c!ignoteur(s) ne fonctionne(nt) pas:
a.
Controler !'ampoule.
b.
Circuit
droit:
I)
Controler la
presence
du
6V
sur le
Iii
vert fonce allant
au
clignoteur.
2) Controler si
le
Iii noir allant a l'en
se
ble clignoteur
est
bien a la m
asse
.
c.
Circuit
gauch
e:
I) Controler
la
pre
sence
du
6V
su
r le
Iii
brun fence allant
au
clignoteur.
2) Controler si
le
Iii
noir
allant a
!'
en
sem
-
ble clignoteur
es
t bien a la
masse.
d. Les circuits droit et gauche
ne
fonction-
nent pas:
I)
IControler la pre
se
n
ce
du
6V
sur le fil
brun/ blanc allant
au
commutate
ur
des
clignoteurs situe s
ur
la gauche du
guidon.
2) Controler
la
presence
du
6V
sur
le
Iii
brun allant
au
relais
des
clignoteur
s.
3) Changer le relais des clignoteur
s.
4)
Changer le commutateur
des
cligno-
teurs.
5.
Le temoin
de
niveau d'huile
ne
fonctionne
pas:
a.
Changer l'a
mp
o
ule.
b.
Changer
le
contacteur
de
niveau d'huile.
