Yamaha WR250F 2021 - Installing the Front Wheel

FRONT WHEEL
4-10
EAM30021

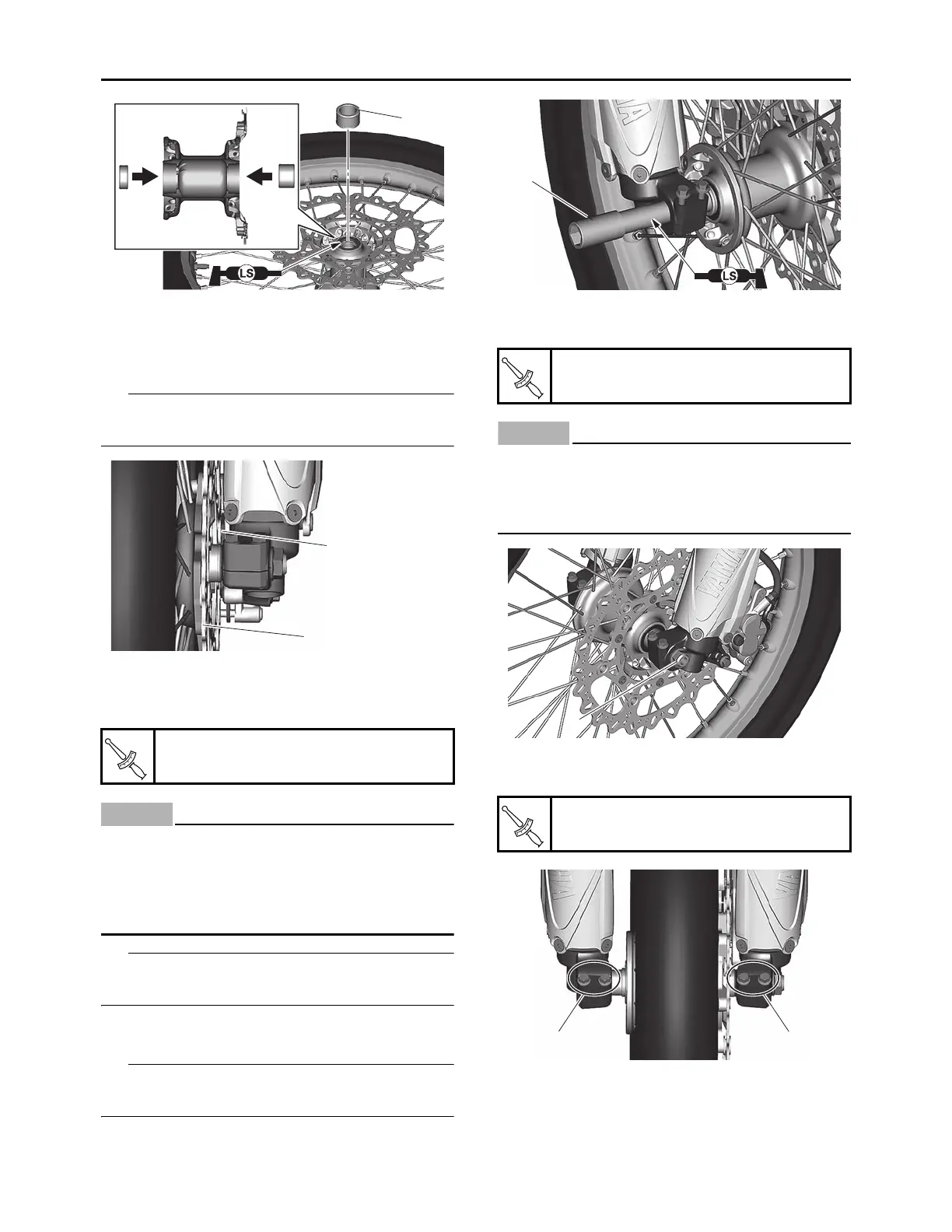

INSTALLING THE FRONT WHEEL
1. Install:
• Front wheel
TIP
Install the brake disc “1” between the brake pads
“2” correctly.
2. Install:
• Front wheel sensor
• Front wheel sensor bracket
NOTICE
ECA21020
Make sure there are no foreign materials in
the front wheel sensor rotor and front wheel
sensor. Foreign materials cause damage to
the front wheel sensor rotor and front wheel
sensor.
TIP
When installing the front wheel sensor, check
the wheel sensor lead for twists.
3. Install:
• Front wheel axle “1”
TIP
Apply the lithium-soap-based grease to the front
wheel axle.
4. Tighten:
• Front wheel axle nut “1”
NOTICE
ECA24430
Before tightening the front wheel axle nut,
push down hard on the handlebar(s) several
times and check if the front fork rebounds
smoothly.
5. Tighten:
• Front wheel axle pinch bolt “1”
6. Measure:
• Distance “a”
(between the wheel sensor rotor “1” and front
wheel sensor “2”)
Out of specification  Check the wheel bear-
Front wheel sensor bolt
7 N·m (0.7 kgf·m, 5.2 lb·ft)
1
1
2
T
R
.
.
Front wheel axle nut
115 N·m (11.5 kgf·m, 85 lb·ft)
Front wheel axle pinch bolt
21 N·m (2.1 kgf·m, 15 lb·ft)
1
T
R
.
.
1
1
T
R
.
.
11
