STARTER CLUTCH
5-41
EAM20175
STARTER CLUTCH

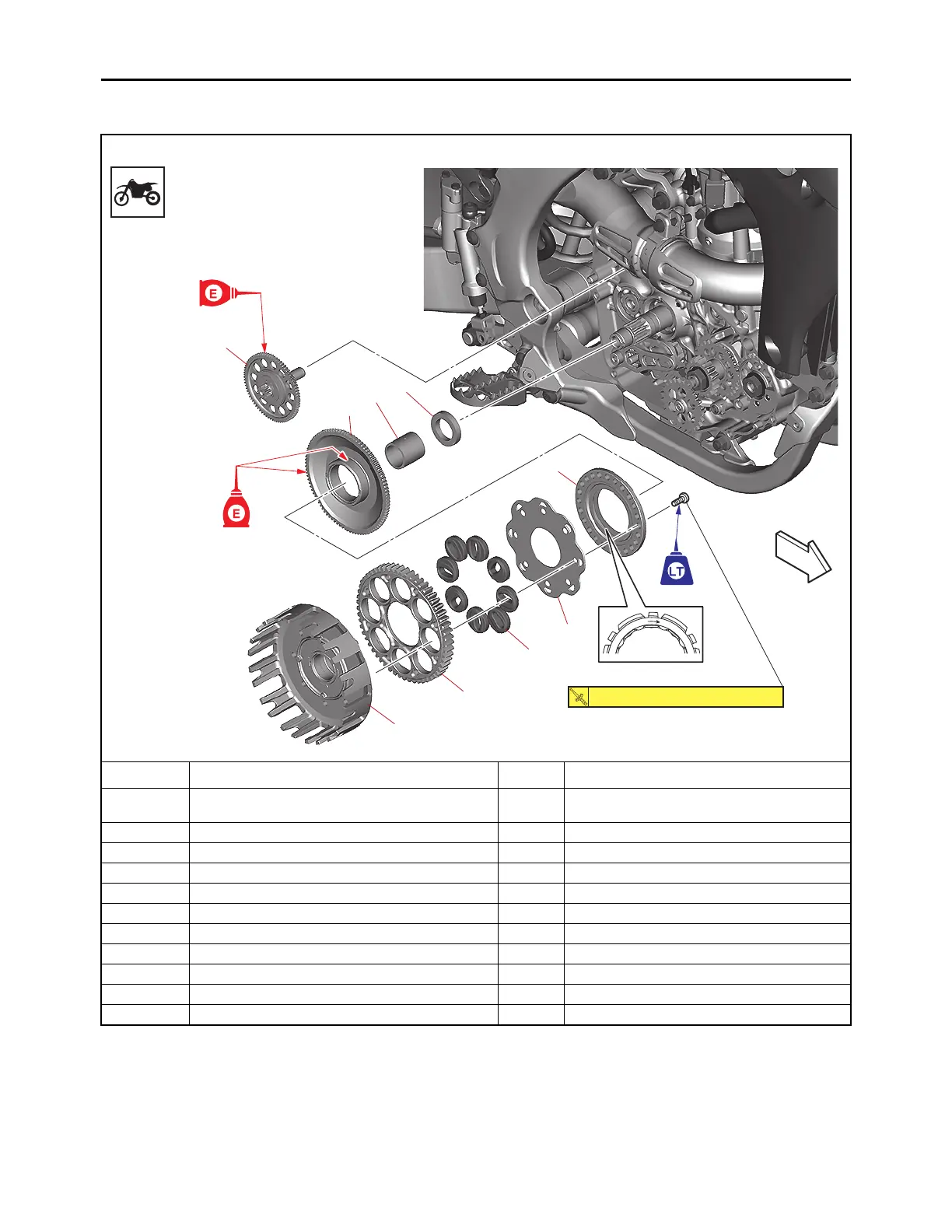

Removing the starter clutch
Order Job/Parts to remove Q’ty Remarks
Engine oil
Refer to “CHANGING THE ENGINE OIL” on
page 3-14.
Clutch Refer to “CLUTCH” on page 5-48.
1 Clutch housing 1
2 Starter clutch gear 1
3 Starter clutch assembly 1
4 Side plate 1
5 Absorber 8
6 Primary driven gear 1
7Spacer 1
8 Collar 1
9 Damper assembly 1
FWD
12 N・m (1.2 kgf・m, 8.9 lb・ft)
(8)
9
2
7
6
5
1
8
3
4
