Yamaha WR250F 2021 - ENGINE REMOVAL

ENGINE REMOVAL
5-6
EAM20105
ENGINE REMOVAL

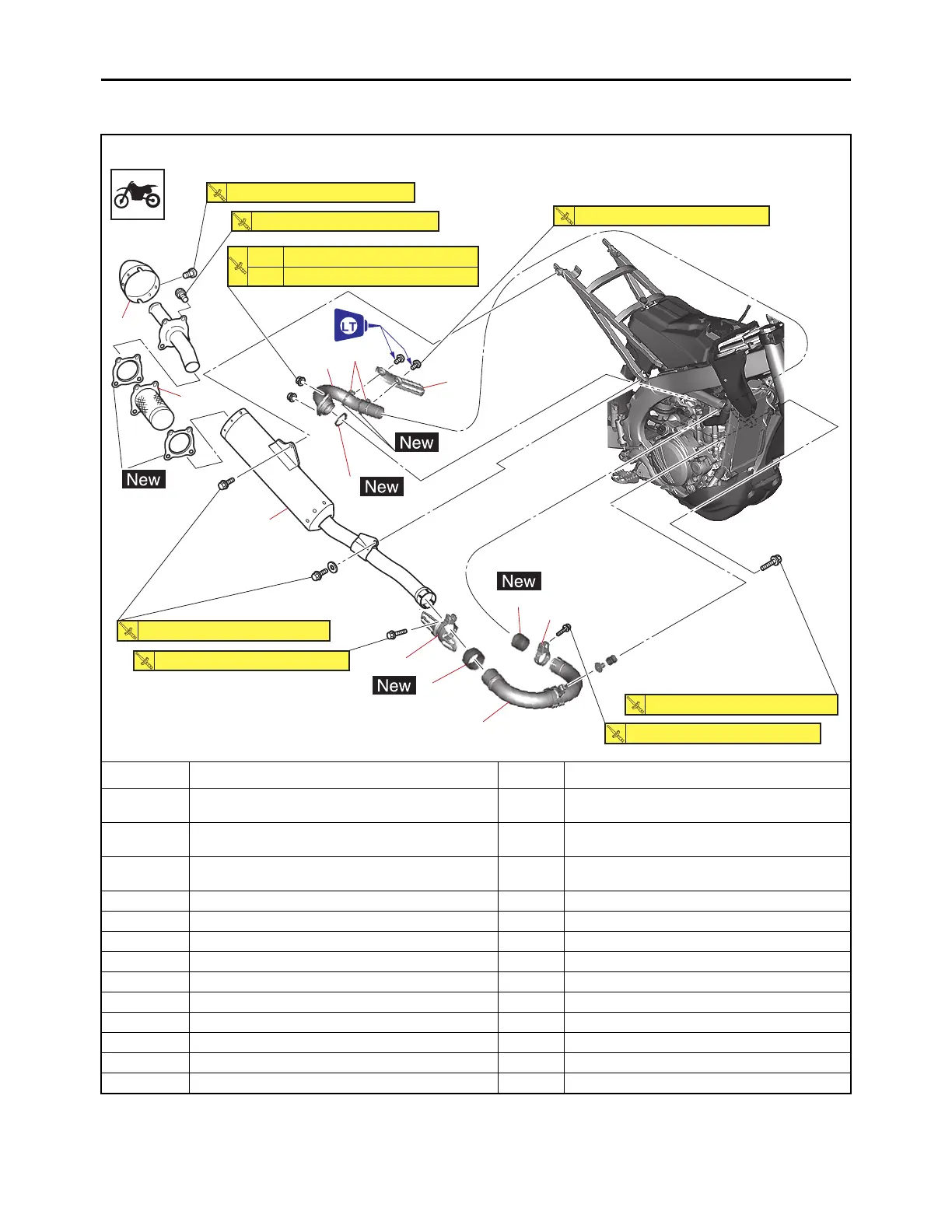

Removing the exhaust pipe
Order Job/Parts to remove Q’ty Remarks
Side cover (right)
Refer to “GENERAL CHASSIS” on page
4-1.
Rear shock absorber assembly lower bolt
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-60.
Connecting arm bolt (frame side)
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-60.
1 Silencer clamp 1 Loosen.
2 Silencer 1
3 Exhaust pipe 2 clamp 1 Loosen.
4 Exhaust pipe 2 1
5 Exhaust pipe 1 1
6Gasket 3
7 Exhaust pipe 1 protector 1
8 Silencer cap 1
9 Spark arrester 1
10 Protector bracket 2
9
5
8
2
6
1
6
6
3
4
(4)
(6)
7
10
10 N・m (1.0 kgf・m, 7.4 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
1st
2nd
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
20 N・m (2.0 kgf・m, 15 lb・ft)
