Yamaha WR250F 2021 - FRONT FORK

FRONT FORK
4-43
EAM20100
FRONT FORK

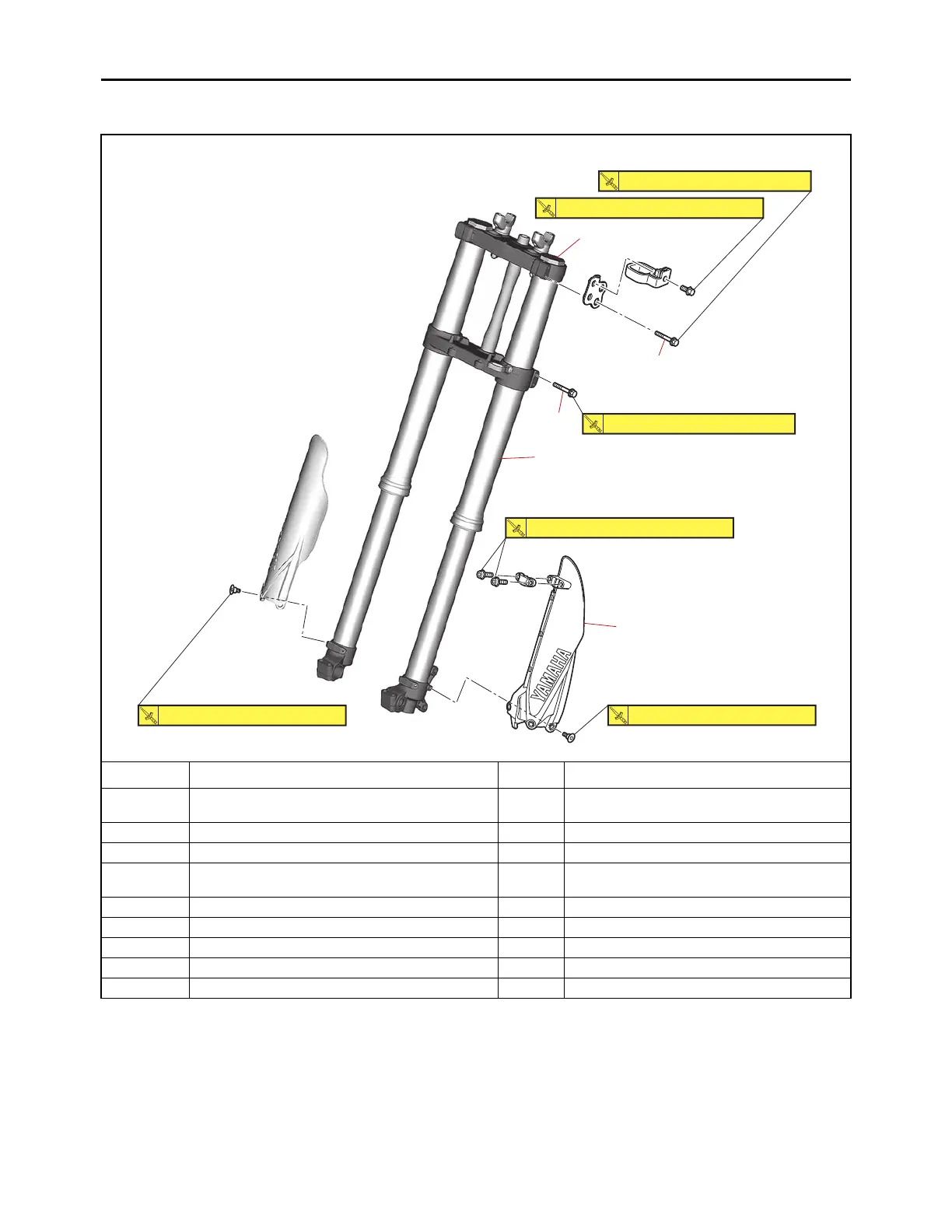

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
Use a maintenance stand to raise the front
wheel off the ground.
Front wheel Refer to “FRONT WHEEL” on page 4-6.
Front brake caliper Refer to “FRONT BRAKE” on page 4-16.
Headlight
Refer to “GENERAL CHASSIS” on page
4-1.
1 Protector 2
2 Upper bracket pinch bolt 2 Loosen.
3 Damper assembly 1 Loosen.
4 Lower bracket pinch bolt 2 Loosen.
5 Front fork leg 1
1
5
4
2
3
(3)
(2)
(2)
(3)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
