CYLINDER AND PISTON
5-33
EAM20109
CYLINDER AND PISTON

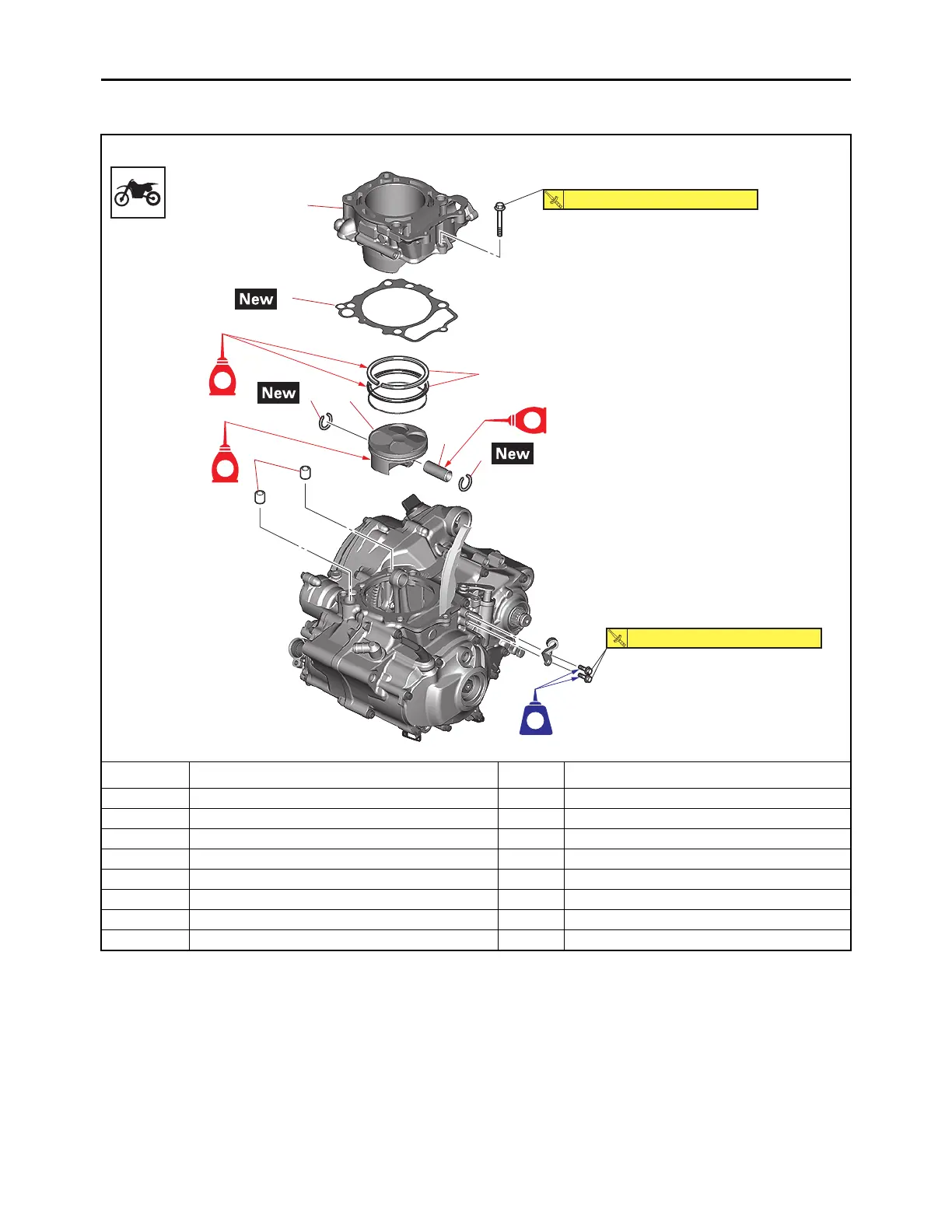

Removing the cylinder and piston
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-21.
1 Cylinder body 1
2Gasket 1
3 Dowel pin 2
4 Piston pin clip 2
5 Piston pin 1
6Piston 1
7 Piston ring set 1
1
2
3
4
4
5
6
7
E
E
LT
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
E
