SWINGARM
4-66
EAM20103
SWINGARM

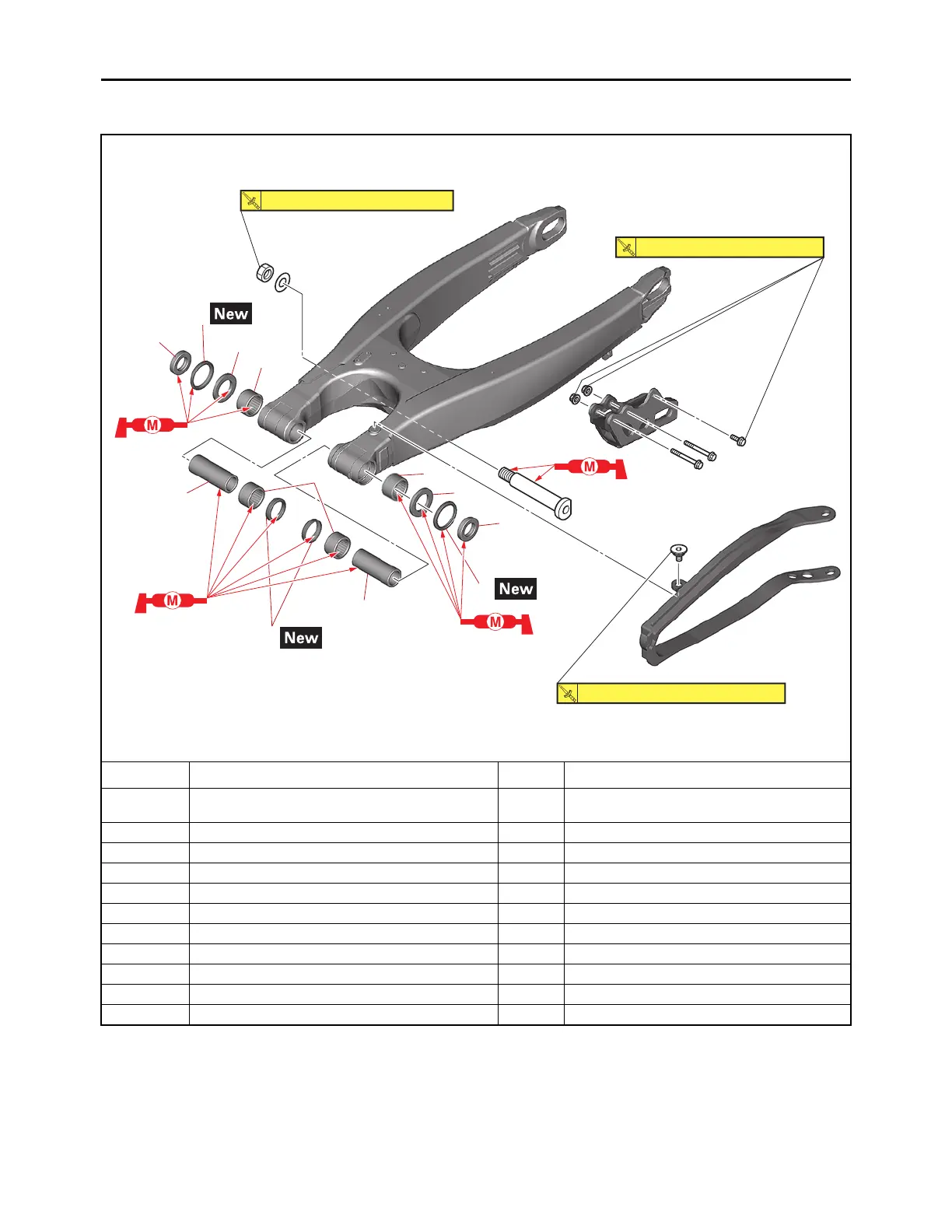

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Use a maintenance stand to raise the front
wheel off the ground.
Brake hose holder Refer to “REAR BRAKE” on page 4-27.
Rear brake caliper Refer to “REAR BRAKE” on page 4-27.
Bolt (brake pedal)
Drive chain
1 Collar 2
2 Oil seal 2
3 Thrust bearing 2
4 Bushing 2
5 Oil seal 2
6 Bearing 4
1
2
3
6
4
6
4
1
3
6
2
5
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
70 N・m (7.0 kgf・m, 52 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
To Next Page
