TRANSMISSION
5-73
EAM20118
TRANSMISSION

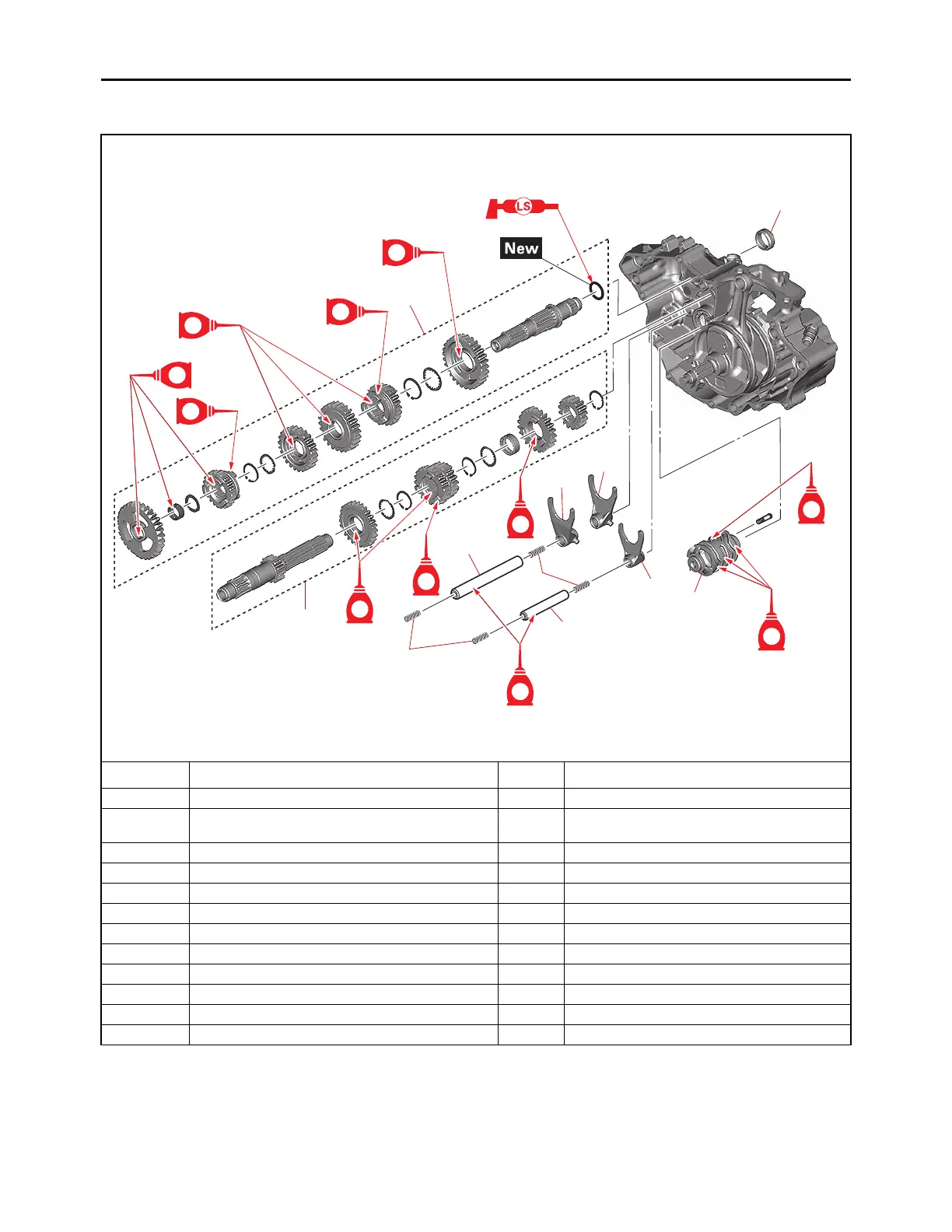

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-6.
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-66.
1 Main axle 1
2Drive axle 1
3 Long shift fork guide bar 1
4 Short shift fork guide bar 1
5Spring 4
6Shift cam 1
7 Shift fork 3 (R) 1
8 Shift fork 2 (C) 1
9 Shift fork 1 (L) 1
10 Collar 1
2
10
1
5
3
4
5
7
8
6
9
M
E
E
E
M
M
M
E
E
M
E
