REAR SHOCK ABSORBER ASSEMBLY
4-60
EAM20102
REAR SHOCK ABSORBER ASSEMBLY

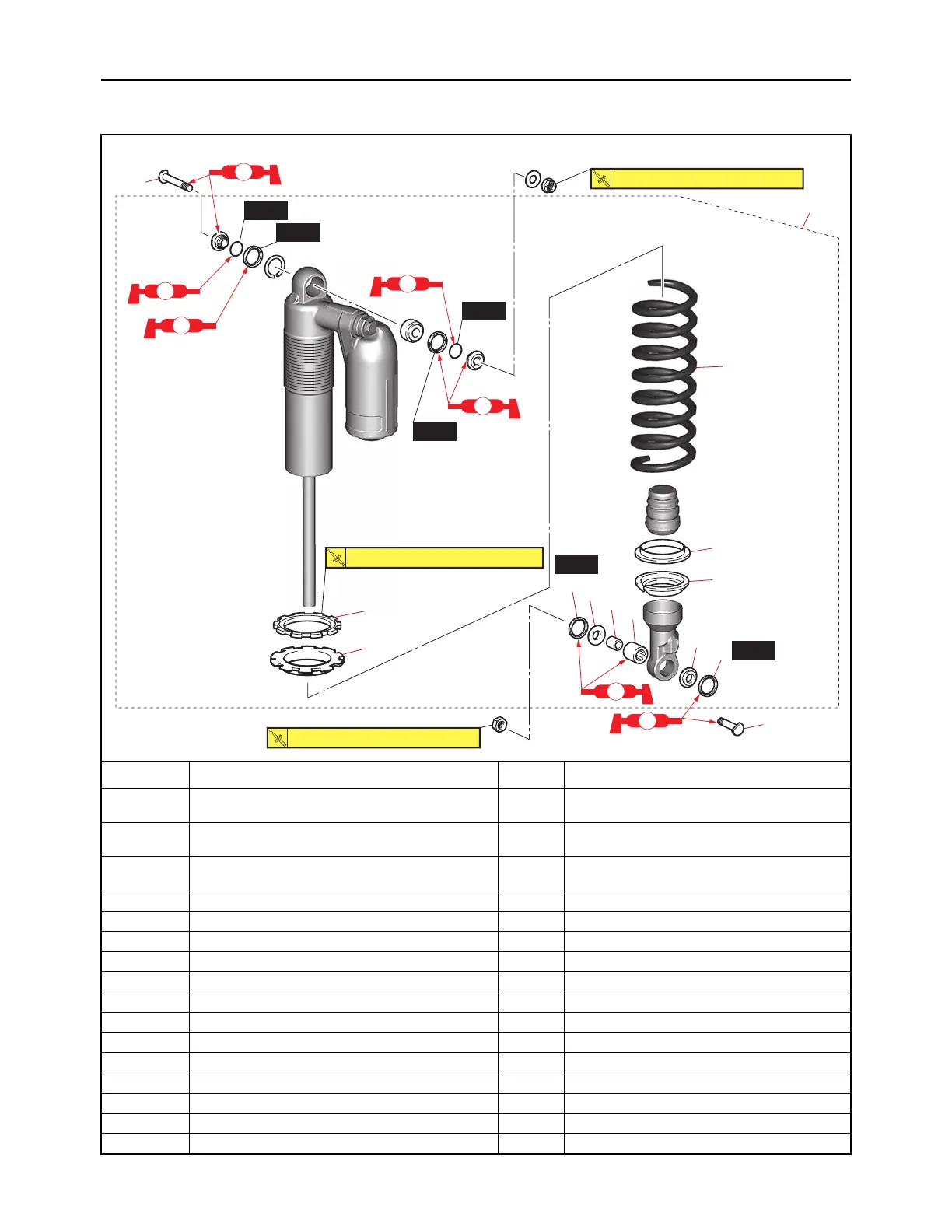

Removing the rear shock absorber assembly
Order Job/Parts to remove Q’ty Remarks
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
Side cover (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Rear shock absorber assembly lower bolt 1
2 Rear shock absorber assembly upper bolt 1
3 Rear shock absorber assembly 1
4 Locknut 1
5 Adjusting nut 1
6 Lower spring guide 1
7 Upper spring guide 1
8Spring 1
9 Dust seal 2
10 Collar 2
11 Bushing 1
12 Bearing 1
New
2
4
5
7
6
8
3
9
9
10
10
12
1
M
56 N・m (5.6 kgf・m, 41 lb・ft)
53 N・m (5.3 kgf・m, 39 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
M
M
LS
11
New
M
M
LS
New
New
New
New
