WATER PUMP
6-6
EAM20139

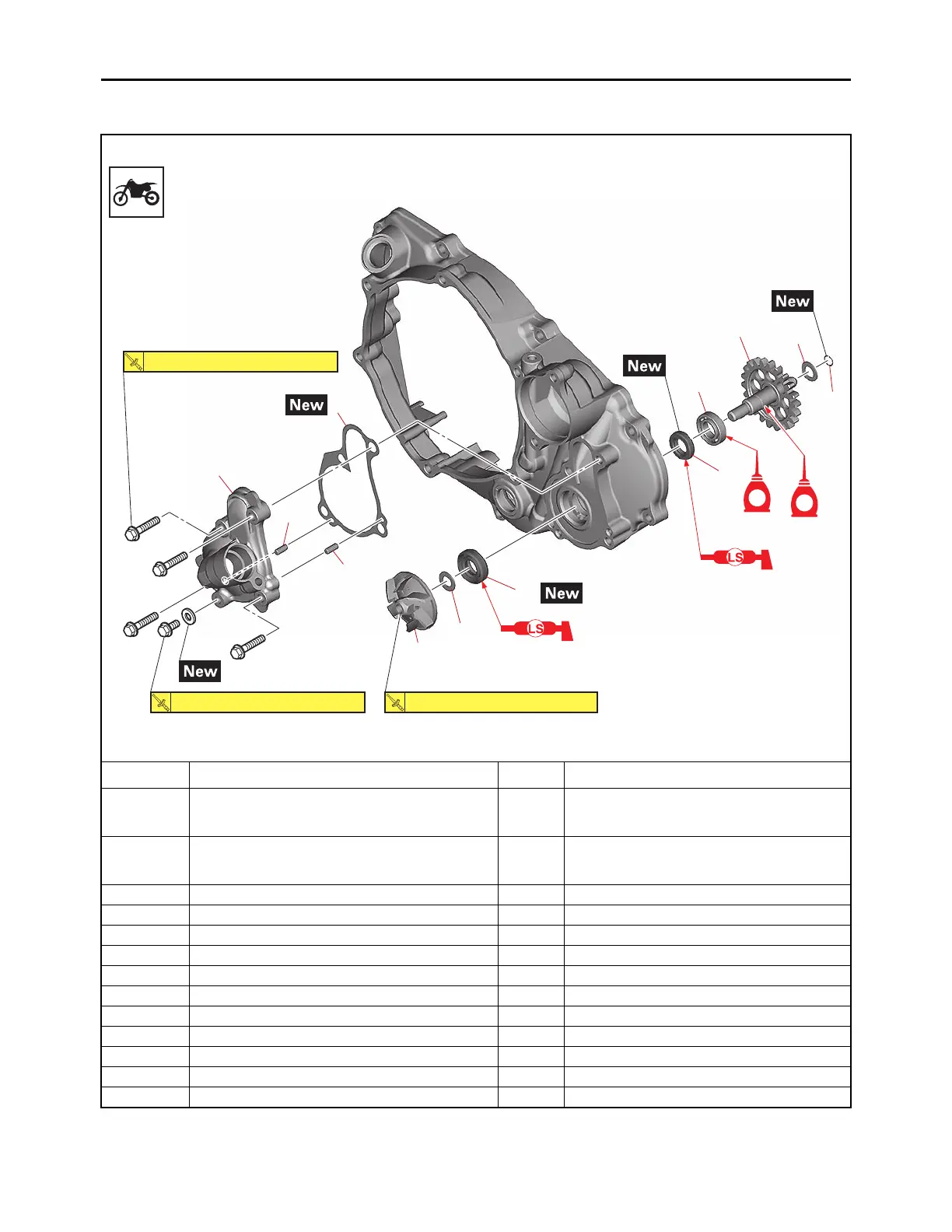

WATER PUMP
Removing the water pump
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-21.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-14.
Right crankcase cover Refer to “CLUTCH” on page 5-48.
1 Water pump housing 1
2 Dowel pin 2
3Gasket 1
4 Impeller 1
5 Circlip 1
6 Washer 2
7 Impeller shaft assembly 1
8 Bearing 1
9 Oil seal 1
10 Oil seal 1
E
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
E
14 N・m (1.4 kgf・m, 10 lb・ft)
10
4
2
2
3
1
8
7
6
9
6
5
