GENERAL CHASSIS
4-4
EAM30016

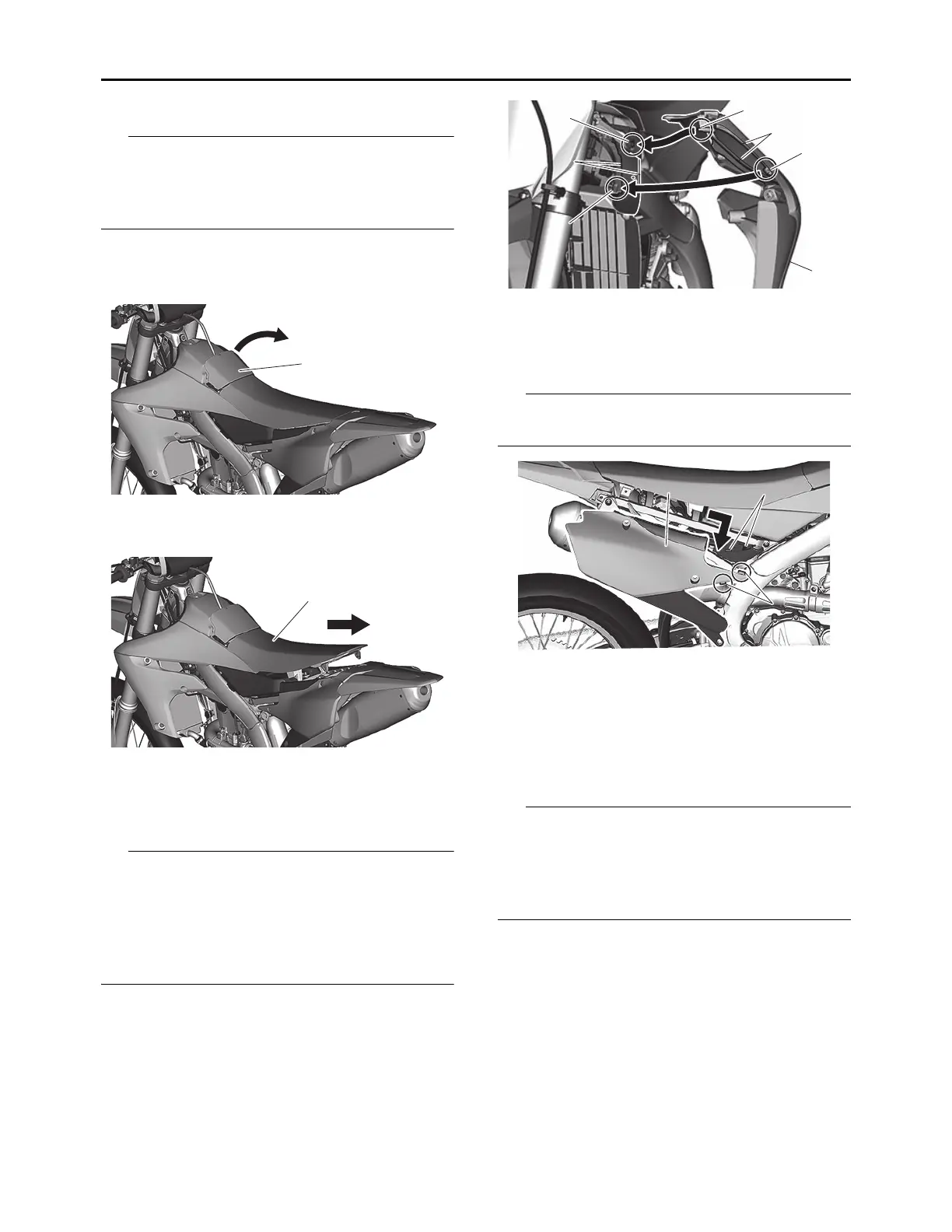

REMOVING THE SEAT
TIP
The fuel tank cap cover and the seat are coupled
with each other with a plastic band.
When removing the seat, always remove the
fuel tank cap cover beforehand.
1. Remove:
• Fuel tank cap cover “1”
Refer to “FUEL TANK CAP” on page 1-22.
2. Remove:
• Seat “1”
EAM30458
INSTALLING THE AIR SCOOP
1. Install:
• Air scoop (left “1”/right)
TIP
After inserting the projection “a” on the air scoop
(left/right) into the hole “b” in the air filter case, in-
serting the grooves “c” into the ribs “d” of the air
filter case, and inserting the projection “e” into
the slot “f” in the air filter case, install the air
scoop and secure it with the bolts.
EAM30459
REMOVING THE SIDE COVER
1. Remove:
• Side cover (right) “1”
TIP
Remove the side cover (right) from the vehicle
by removing the bolts and sliding it as shown.
EAM30460
INSTALLING THE SIDE COVER
1. Install:
• Side cover (right) “1”
TIP
• Install the side cover (right) by sliding it as
shown and secure it with the bolts to fit it to the
vehicle.
• Install the side cover (right) so that the rib is lo-
cated under the rib of the rear fender.
1
1
a. Projection
b. Slot
1
c
d
d
d
e
f
f
a
f
b
1
1
1
b
b
a
a
