GENERAL CHASSIS
4-3

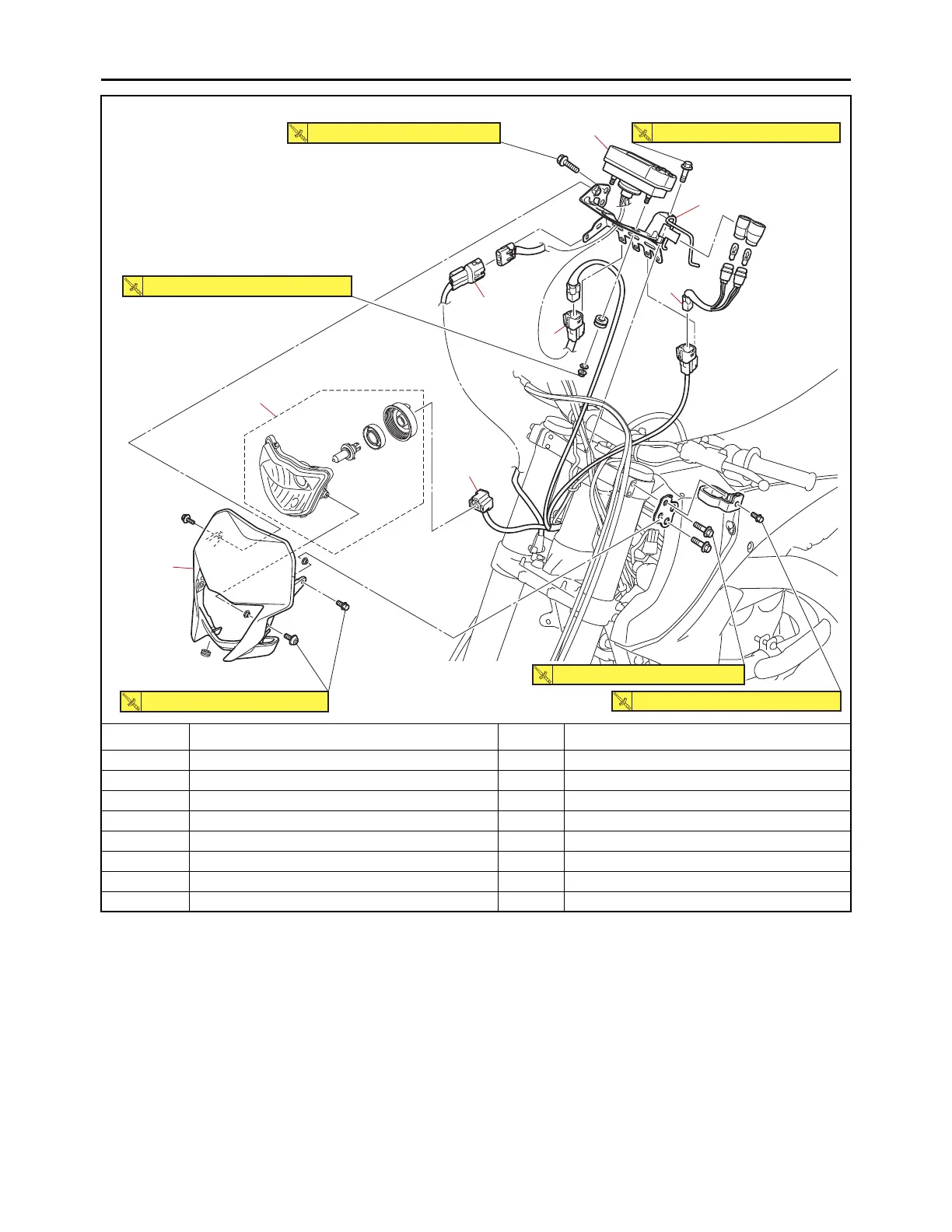

Removing the headlight assembly and multi-function meter
Order Job/Parts to remove Q’ty Remarks
1 Headlight body 1
2 Headlight coupler 1 Disconnect.
3 Headlight unit 1
4 Speed sensor coupler 1 Disconnect.
5 Multi-function meter coupler 1 Disconnect.
6 Indicator light coupler 1 Disconnect.
7 Multi-function meter 1
8 Meter bracket 1
4
(2)
6
7
8
5
1
3
2
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
