SHIFT SHAFT
5-56
EAM20113
SHIFT SHAFT

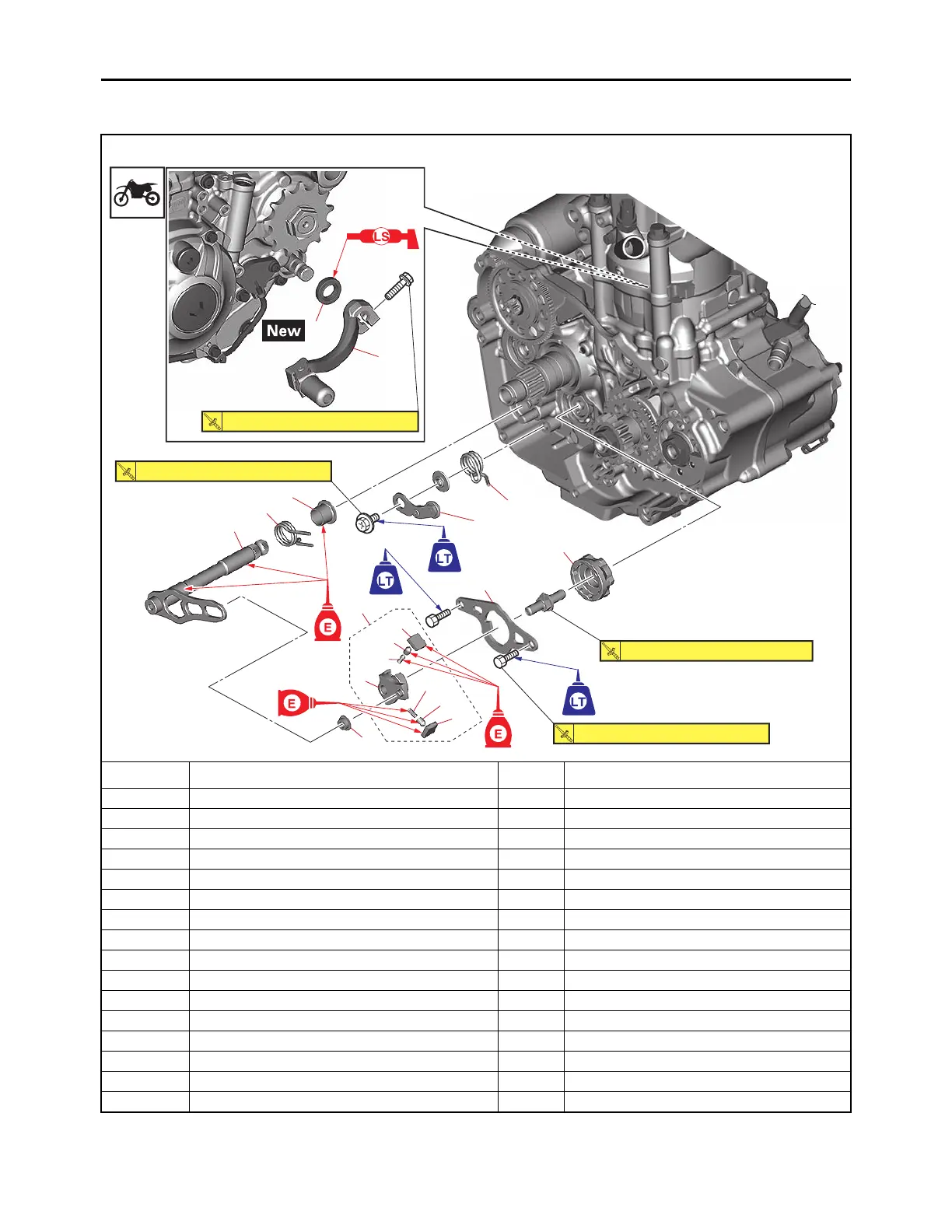

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-48.
1 Shift pedal 1
2 Shift shaft 1
3 Oil seal 1
4 Collar 1
5 Shift shaft spring 1
6 Roller 1
7 Shift guide 1
8 Shift lever assembly 1
9Shift lever 1
10 Pawl 2
11 Pawl pin 2
12 Spring 2
13 Stopper lever 1
14 Stopper lever spring 1
15 Segment 1
10
10
11
11
12
12
15
13
14
7
9
8
4
5
6
2
1
3
10 N・m (1.0 kgf・m, 7.4 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
