Yamaha WR250F 2021 - Steering Head

STEERING HEAD
4-56
EAM20101

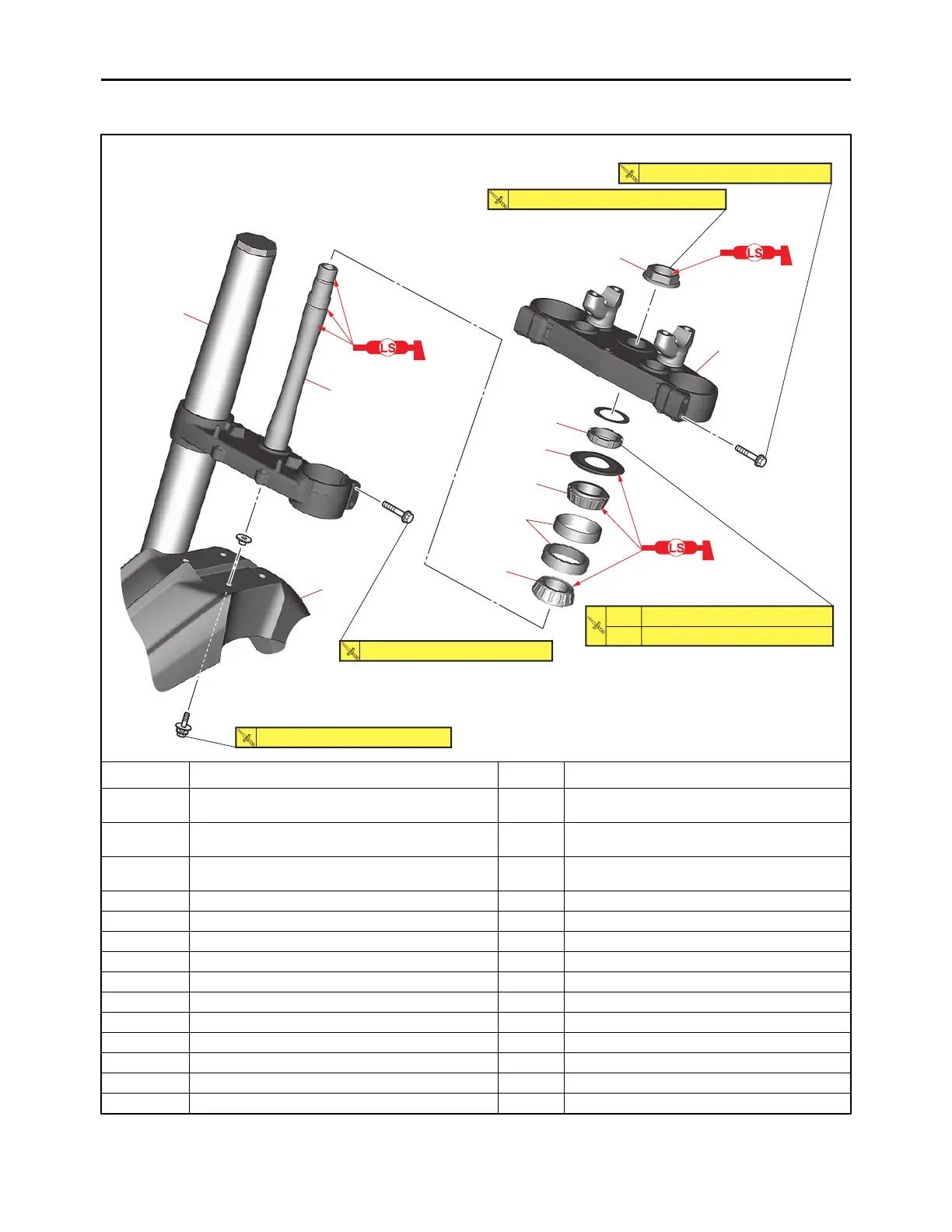

STEERING HEAD
Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Refer to “CHECKING AND ADJUSTING
THE STEERING HEAD” on page 3-27.
Use a maintenance stand to raise the front
wheel off the ground.
Headlight
Refer to “GENERAL CHASSIS” on page
4-1.
Handlebar Refer to “HANDLEBAR” on page 4-37.
1 Front fender 1
2 Steering stem nut 1
3 Front fork leg 2 Refer to “FRONT FORK” on page 4-43.
4 Upper bracket 1
5 Steering ring nut 1
6 Lower bracket 1
7 Bearing race cover 1
8 Upper bearing 1
9 Bearing race 2
10 Lower bearing 1
2
4
5
7
3
1
6
8
10
9
(4)
(4)
(4)
145 N・m (14.5 kgf・m, 107 lb・ft)
1st
2nd
38 N・m (3.8 kgf・m, 28 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
