Yamaha WR250F 2021 - REAR BRAKE

REAR BRAKE
4-27
EAM20098
REAR BRAKE

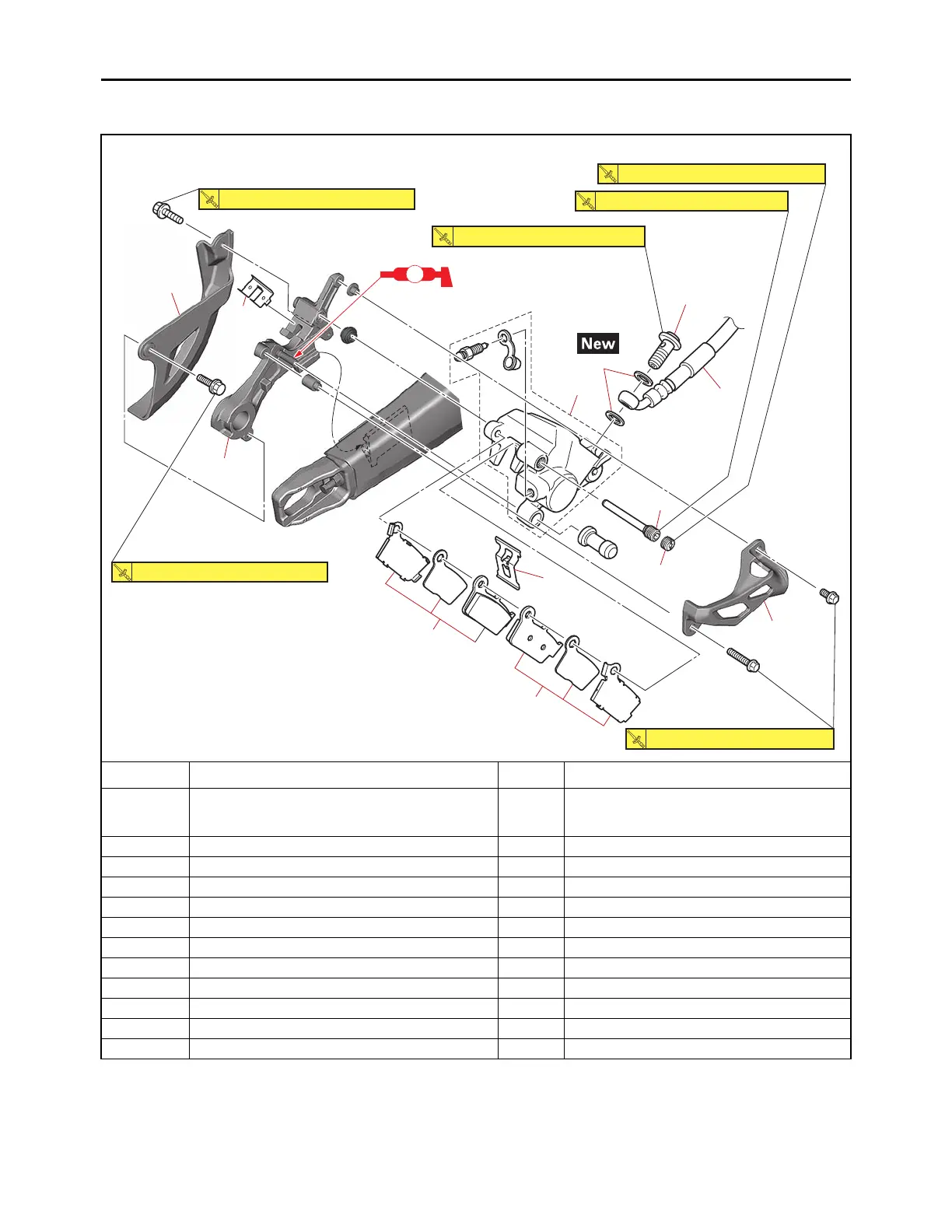

Removing the rear brake caliper
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-25.
1 Protector 1
2 Union bolt 1
3 Copper washer 2
4 Rear brake hose 1
5 Brake pad pin plug 1
6 Brake pad pin 1
7 Rear brake pad assembly 2
8 Rear brake caliper bracket 1
9 Brake pad spring 2
10 Rear brake disc cover 1
11 Rear brake caliper assembly 1
2
3
4
11
5
6
7
9
1
8
9
10
S
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7
30 N・m (3.0 kgf・m, 22 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
