Yamaha WR250F 2021 - Page 170

FRONT FORK
4-44

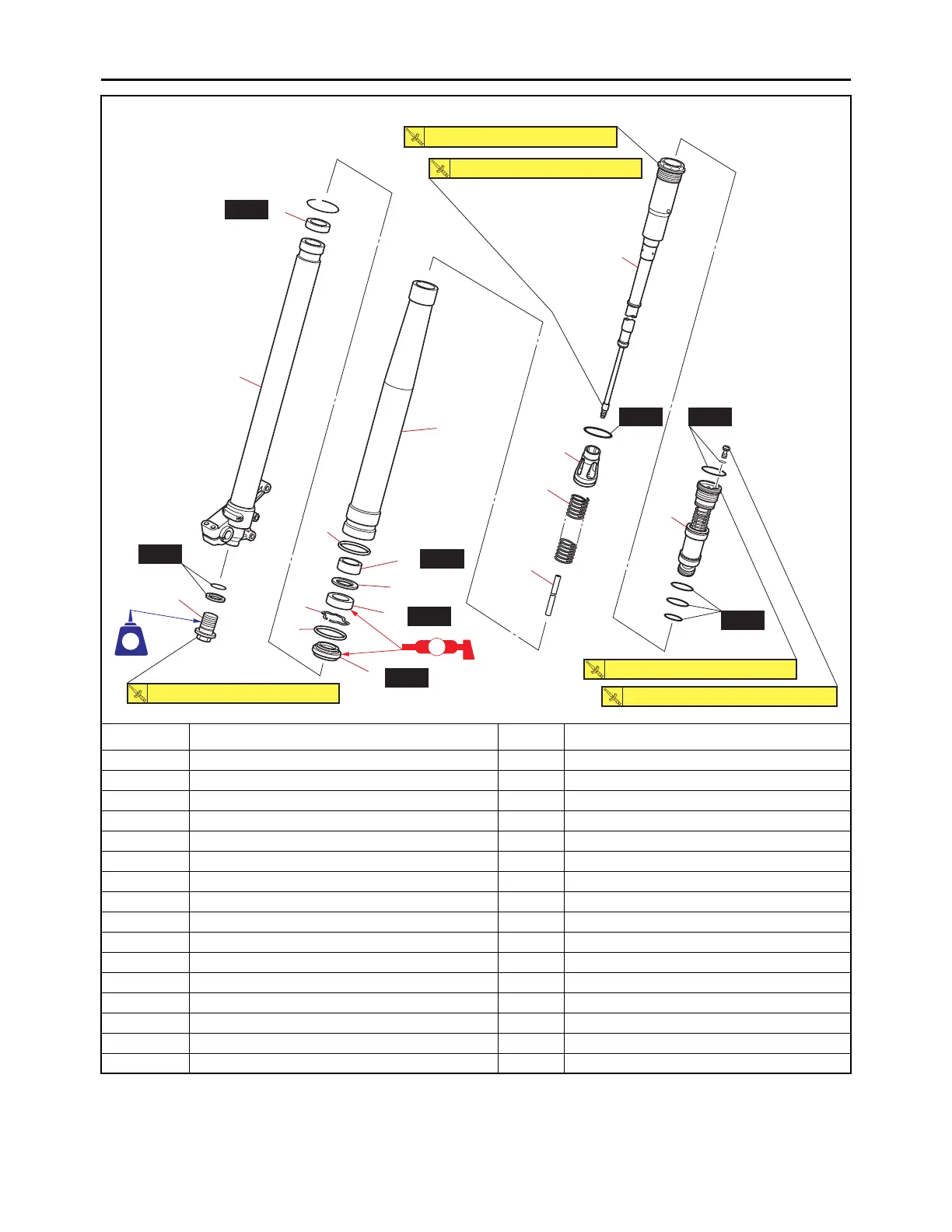

Disassembling the front fork leg
Order Job/Parts to remove Q’ty Remarks
1 Adjuster 1
2 Fork spring 1
3 Damper adjusting rod 1
4 Dust seal 1
5 Scraper 1
6 Stopper ring 1
7 Inner tube 1
8 Outer tube 1
9 Piston metal 1
10 Protector guide 1
11 Slide metal 1
12 Washer 1
13 Oil seal 1
14 Base valve 1
15 Damper assembly 1
16 Upper spring seat 1
LS
15
2
8
10
12
13
5
4
1
7
14
New
New
11
New
New
New
New
New
LT
3
9
1.3 N・m (0.13 kgf・m, 0.95 lb・ft)
28 N・m (2.8 kgf・m, 21 lb・ft)
29 N・m (2.9 kgf・m, 21 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
55 N・m (5.5 kgf・m, 41 lb・ft)
16
New
6
